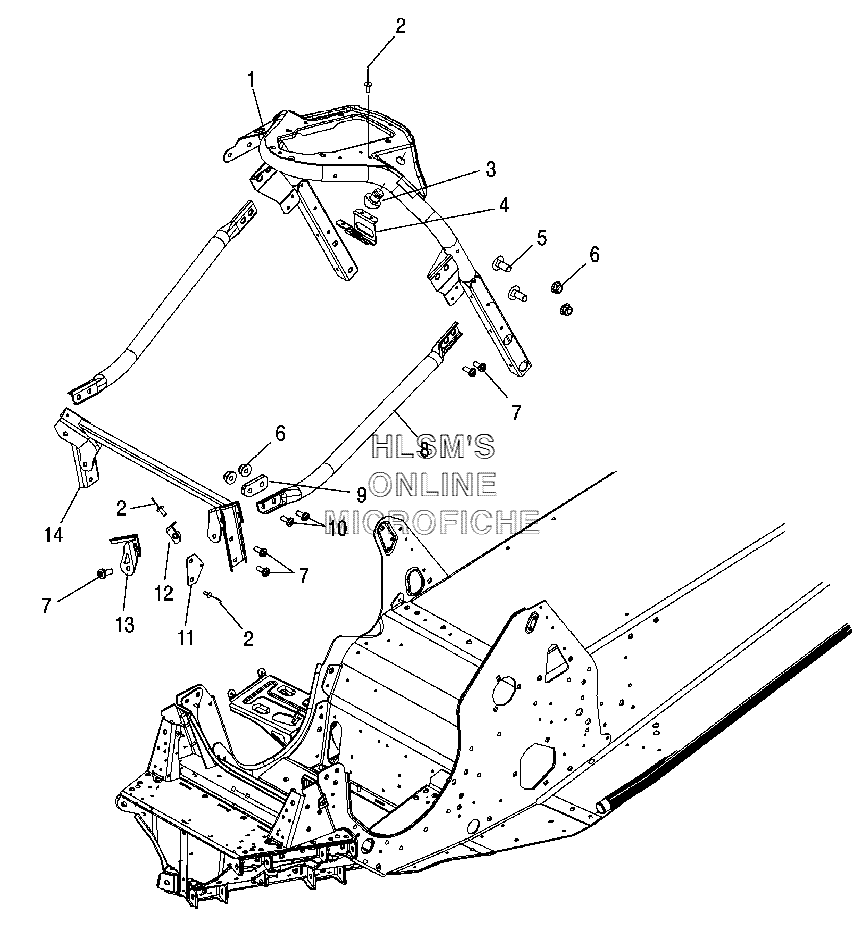

CHASSIS - FRONT 2 для Polaris 600 HO Switchback (S06PS6FS) - 2006 года выпуска
-
№АртикулНазвание
-
11014605-067 WELD-STRG HOOP (BLACK)WELD-STRG HOOP (BLACK)
-
27661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
35411576 DAMPENER-VIBRATION, W/RIBSDAMPENER-VIBRATION, W/RIBS
-
45249294 BRKT-AIRBOX STRAPBRKT-AIRBOX STRAP
-
57512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
67542343 NUT, FLANGENUT, FLANGE
-
77517810 SCREWSCREW
-
85334676-067 BRACE-UPPER (LEFT/BLACK)BRACE-UPPER (LEFT/BLACK)
-
81015198-067 WELD-BRACE UPPER (RIGHT/BLACK)WELD-BRACE UPPER (RIGHT/BLACK)
-
95135003 SPACER-CHASSIS BRACESPACER-CHASSIS BRACE
-
107518070 SCREWSCREW
-
111014820 PLATE ASSY, NUTPLATE ASSY, NUT
-
121015027 PLATE ASSY/NUTPLATE ASSY/NUT
-
135249312 BRACKETBRACKET
-
141015368-067 WELD-CROSS MEMBER (BLACK)WELD-CROSS MEMBER (BLACK)
