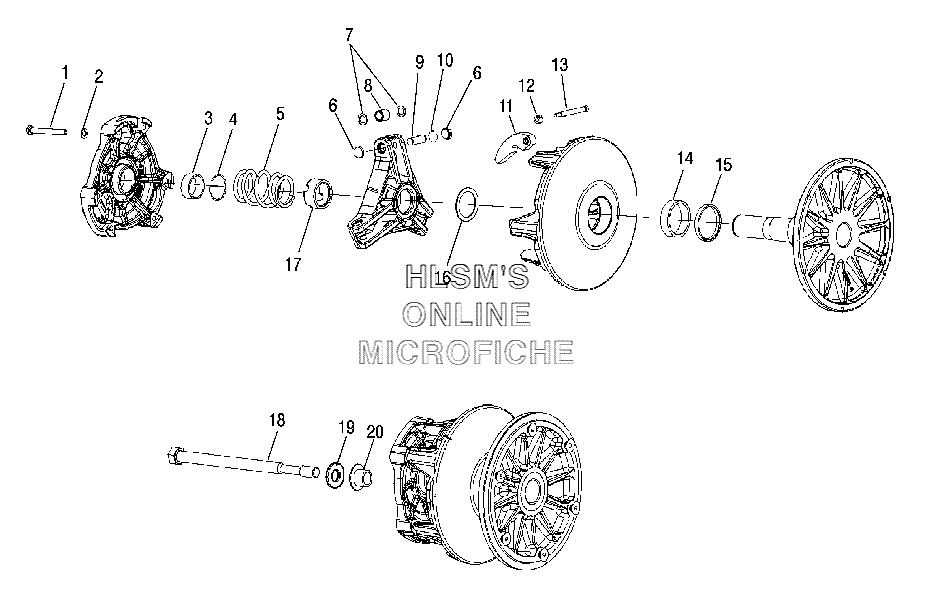

CLUTCH - DRIVE для Polaris 600 HO Switchback (S06PS6FS) - 2006 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57042083 SPRING-CLUTCH (BLACK/GREEN)SPRING-CLUTCH (BLACK/GREEN)
-
65431380 CAPCAP
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133079 PIN-ROLLER, 1''PIN-ROLLER, 1''
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111321586 WT/BUSHING ASSYWT/BUSHING ASSY
-
127541906 NUT FLEXLOCNUT FLEXLOC
-
137515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165210754 SPACER, .050SPACER, .050
-
165210753 SPACER, .032SPACER, .032
-
165242981 SPACER, .025SPACER, .025
-
165210752 SPACER, .020SPACER, .020
-
165134018 SPACER, .130, PMSPACER, .130, PM
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREWSCREW
-
197556003 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
-1321928 DRIVE CLUTCH ASSY, BASIC, 114 W/B (LESS 5, 11)DRIVE CLUTCH ASSY, BASIC, 114 W/B (LESS 5, 11)
