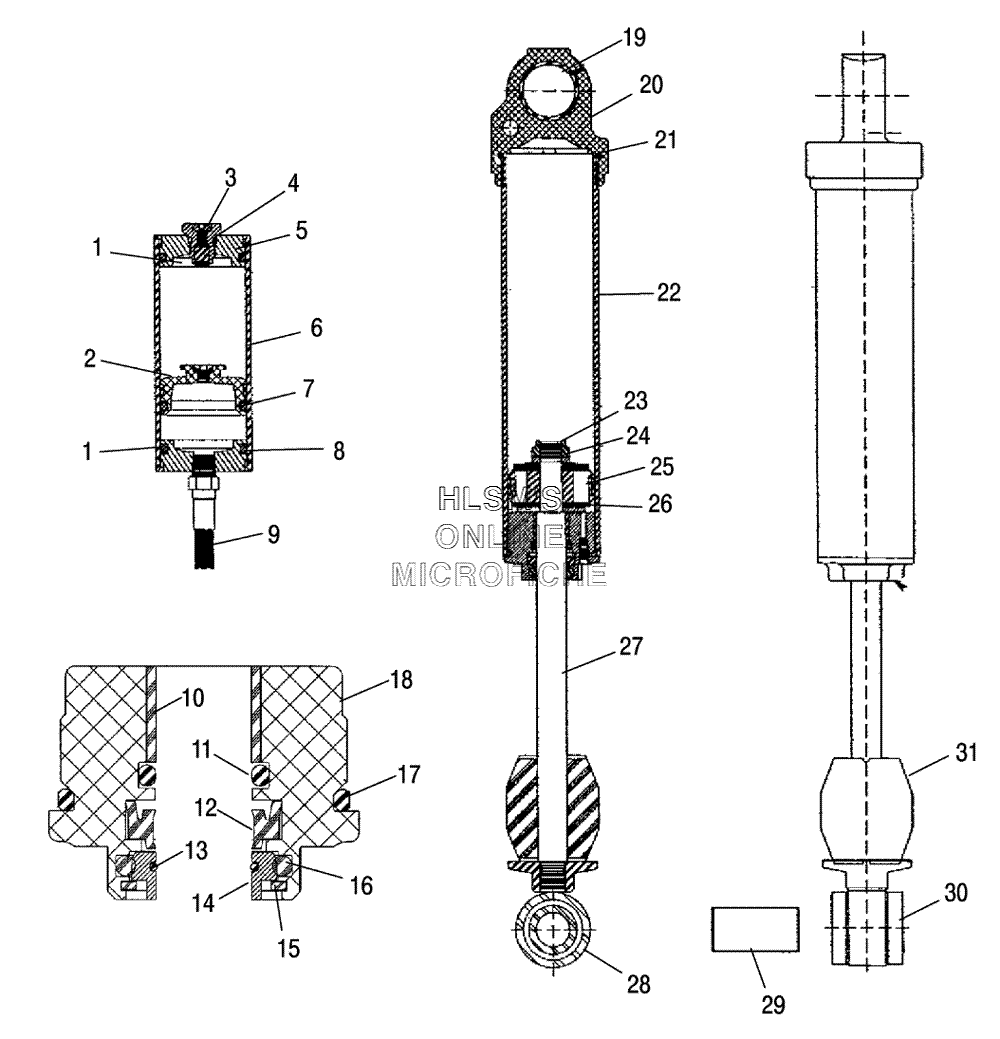

SUSPENSION - REAR SHOCK TRACK для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1500450 SEAL O-RING
    SEAL O-RING
  • 2
    1500187 PISTON FLOATING
    PISTON FLOATING
  • 3
    1500014 VALVE AIR ASSY
    VALVE AIR ASSY
  • 4
    1500023 O-RING (OUTER)
    O-RING (OUTER)
  • 5
    1500160 RESERVOIR, ENDCAP ASSY
    RESERVOIR, ENDCAP ASSY
  • 6
    1500451 DAMPENER
    DAMPENER
  • 7
    1500003 O-RING, ENDCAP
    O-RING, ENDCAP
  • 8
    1500163 ENDCAP RESERVOIR ASSY
    ENDCAP RESERVOIR ASSY
  • 9
    1500445 HOSE 14.00 TLG
    HOSE 14.00 TLG
  • 10
    1500488 BEARING
    BEARING
  • 11
    1500021 O-RING (INNER)
    O-RING (INNER)
  • 12
    1500266 U-CUP URETH
    U-CUP URETH
  • 13
    1500484 O-RING 14MM
    O-RING 14MM
  • 14
    1500485 SCRAPER FIST (BRONZE)
    SCRAPER FIST (BRONZE)
  • 15
    1500486 RING SNAP, INTERNAL
    RING SNAP, INTERNAL
  • 16
    1500483 O-RING
    O-RING
  • 17
    1500020 O-RING
    O-RING
  • 18
    1500545 DAMPENER ASSY (INCL. 10-17)
    DAMPENER ASSY (INCL. 10-17)
  • 19
    1500444 BEARING
    BEARING
  • 20
    1500448 BODY CAP ASSY
    BODY CAP ASSY
  • 21
    1500108 O-RING
    O-RING
  • 22
    1500446 BODY TLG
    BODY TLG
  • 23
    1500016 NUT, LOCK
    NUT, LOCK
  • 24
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 25
    1500002 BEARING PISTON
    BEARING PISTON
  • 26
    1500017 PLATE, TOP OUT
    PLATE, TOP OUT
  • 27
    1500447 SHAFT
    SHAFT
  • 28
    1500164 EYELET, BASE
    EYELET, BASE
  • 29
    1500310 SLEEVE
    SLEEVE
  • 30
    1500309 BUSHING
    BUSHING
  • 31
    5410855 BUMPER, JOUNCE
    BUMPER, JOUNCE
  • 31
    1500449 RESERVIOR, NON ADJUST ASSY (INCL. 1-3)
    RESERVIOR, NON ADJUST ASSY (INCL. 1-3)
