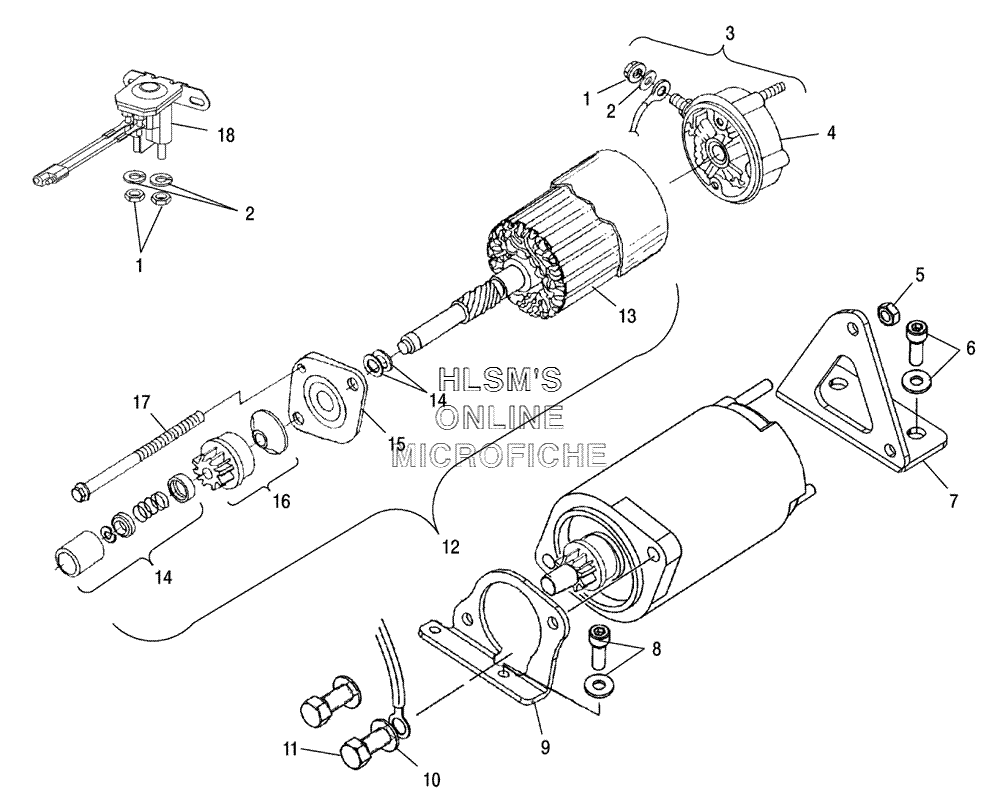

STARTING MOTOR для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7542105 NUT HEXAGON
    NUT HEXAGON
  • 2
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    2200758 COMMUTATOR CAP KIT ASSY (INCL. 4)
    COMMUTATOR CAP KIT ASSY (INCL. 4)
  • 4
    2200759 BRUSH AND SPRING KIT
    BRUSH AND SPRING KIT
  • 5
    7542153 NUT NYLOK, FLANGED
    NUT NYLOK, FLANGED
  • 6
    7516815 SCREW
    SCREW
  • 7
    5240956 BRACKET, STARTER (REAR)
    BRACKET, STARTER (REAR)
  • 8
    7516730 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 9
    5241271 BRACKET, STARTER (FRONT)
    BRACKET, STARTER (FRONT)
  • 10
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 11
    7512492 SCREW
    SCREW
  • 12
    4170006 MOTOR, STARTER DOMESTIC
    MOTOR, STARTER DOMESTIC
  • 13
    2200756 ARMATURE KIT ASSY
    ARMATURE KIT ASSY
  • 14
    2200755 DRIVE HARDWARE KIT
    DRIVE HARDWARE KIT
  • 15
    2200757 DRIVECAP KIT ASSY
    DRIVECAP KIT ASSY
  • 16
    2200754 DRIVE KIT ASSY
    DRIVE KIT ASSY
  • 17
    2200753 SCREW KIT
    SCREW KIT
  • 18
    4011335 SWITCH MAGNETIC (INCL. 1, 2)
    SWITCH MAGNETIC (INCL. 1, 2)
