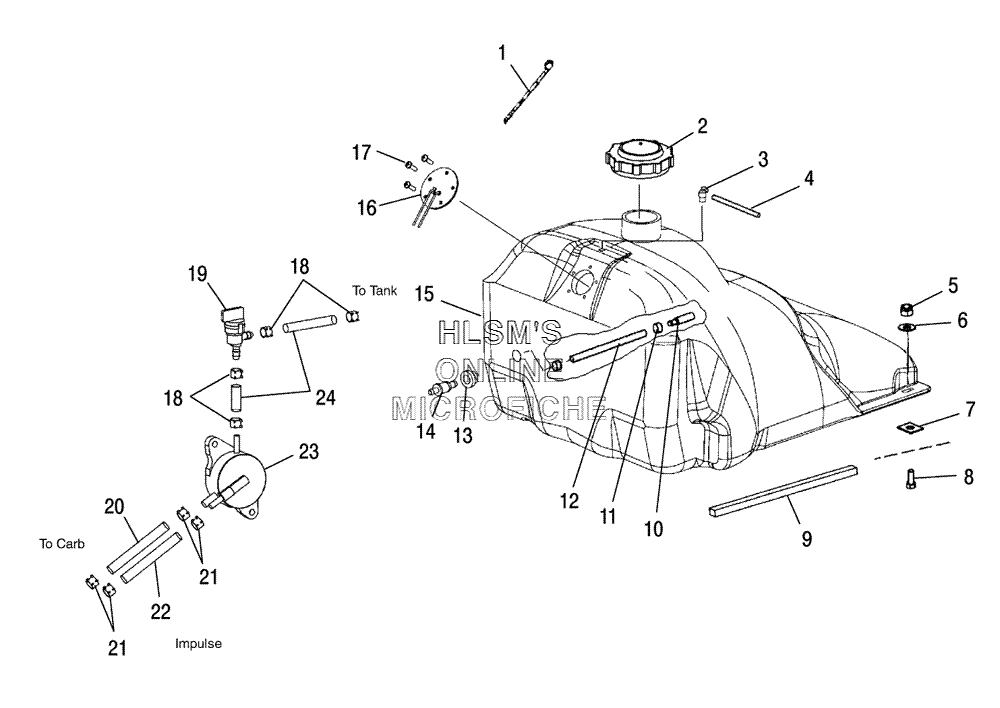

FUEL SYSTEM для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
17080804 CABLE TIE RELEASABLE (5 1/2")CABLE TIE RELEASABLE (5 1/2")
-
22511195-070 CAP, FUEL ASSY (BLACK)CAP, FUEL ASSY (BLACK)
-
25810512 GASKETGASKET
-
37052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
48450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
57542122 NUT NYLOKNUT NYLOK
-
67555960 WASHER, FLATWASHER, FLAT
-
77670021 NUT, SPEEDOMETERNUT, SPEEDOMETER
-
87512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
95810947 FOAM, SEALFOAM, SEAL
-
107052301 PICK UP FUEL WITH FILTERPICK UP FUEL WITH FILTER
-
117080402 RING, COMPRESSIONRING, COMPRESSION
-
128350019-160 FUEL LINE ESTERFUEL LINE ESTER
-
135435941 GROMMET 3/4", VITONGROMMET 3/4", VITON
-
147052375 FITTING 1/4 TO 1/4 STRAIGHTFITTING 1/4 TO 1/4 STRAIGHT
-
152520465 FUEL TANK WITH SEND ASSY (INCL. 3-10)FUEL TANK WITH SEND ASSY (INCL. 3-10)
-
162410352 SENDER FUEL, 12 GAL (LEFT)SENDER FUEL, 12 GAL (LEFT)
-
172410456 PACKING HARDWEAR SENDING UNIT (INCL. GASKET AND SCREWS)PACKING HARDWEAR SENDING UNIT (INCL. GASKET AND SCREWS)
-
187080307 CLAMP, HOSECLAMP, HOSE
-
197052249 VALVE FUEL, PLASTIC 1/4 HOSEVALVE FUEL, PLASTIC 1/4 HOSE
-
208350017-600 FUEL LINE ETHER 5/16" (RED)FUEL LINE ETHER 5/16" (RED)
-
217080003 CLAMP, HOSECLAMP, HOSE
-
228450040-600 LINE FUEL (1/4 ID/600 CM)LINE FUEL (1/4 ID/600 CM)
-
233086998 FUEL PUMP ASSYFUEL PUMP ASSY
-
233084222 DIAPHRAGM GASKET ASSYDIAPHRAGM GASKET ASSY
-
233081286 SCREW WITH WASHERSCREW WITH WASHER
-
248350018-600 TUBING ETHER ERETHNE (160 CM)TUBING ETHER ERETHNE (160 CM)
