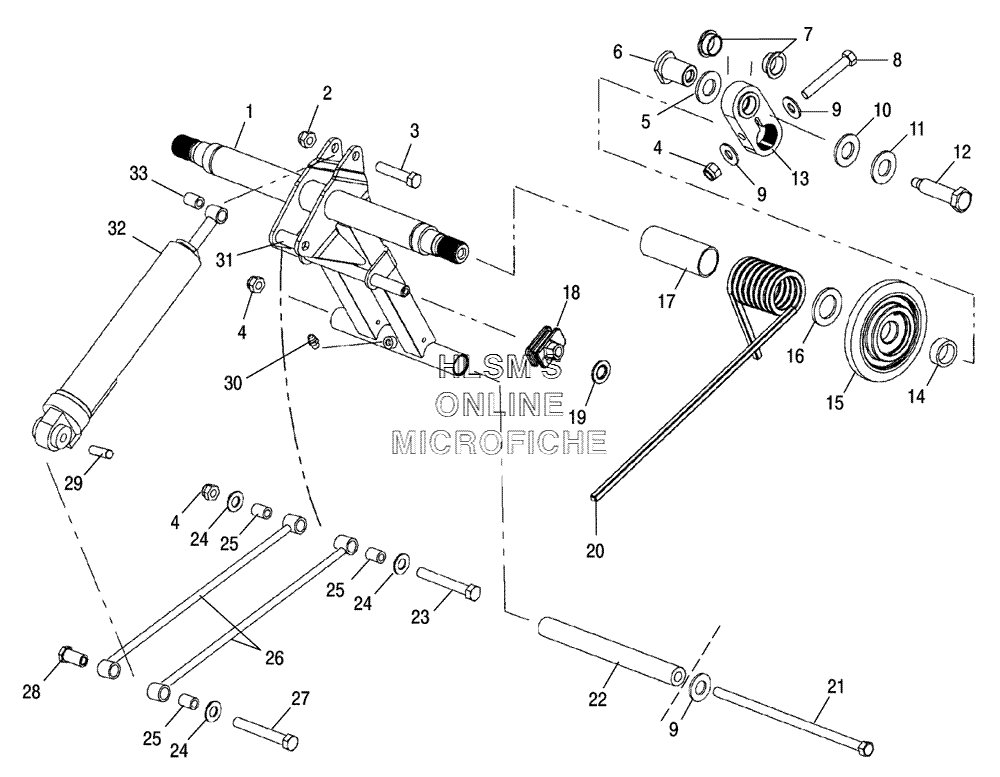

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска`
-
№АртикулНазвание
-
11541969-067 WELD ARM TORQUE (REAR/BLACK)WELD ARM TORQUE (REAR/BLACK)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
37512410 BOLTBOLT
-
47542439 NUT, NYLOKNUT, NYLOK
-
57555945 WASHER, THRUSTWASHER, THRUST
-
65333758 SHAFT ARMSHAFT ARM
-
73514331 BUSHINGBUSHING
-
87515415 SCREWSCREW
-
97555806 WASHER, FLATWASHER, FLAT
-
107555893 WASHER, FLATWASHER, FLAT
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127517435 SCREWSCREW
-
131541967 ARM ASSY 2.00 (INCL. 7)ARM ASSY 2.00 (INCL. 7)
-
145132388 SPACER, WHEELSPACER, WHEEL
-
151590343 CARRIER WHEEL ASSY (6.38)CARRIER WHEEL ASSY (6.38)
-
167555787 WASHERWASHER
-
175431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
185432983 ROLLER, SPRING ADJUSTER SQUAREROLLER, SPRING ADJUSTER SQUARE
-
197080394 CLIP, PUSH ONCLIP, PUSH ON
-
207041629-067 SPRING, TORSION (LEFT/BLACK) (STD)SPRING, TORSION (LEFT/BLACK) (STD)
-
207041630-067 SPRING, TORSION (RIGHT/BLACK) (STD)SPRING, TORSION (RIGHT/BLACK) (STD)
-
207041942-067 SPRING, TORSION (LEFT/BLACK) (OPT)SPRING, TORSION (LEFT/BLACK) (OPT)
-
207041943-067 SPRING, TORSION (RIGHT/BLACK) (OPT)SPRING, TORSION (RIGHT/BLACK) (OPT)
-
217517232 SCREWSCREW
-
225333873 SHAFTSHAFT
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHINGBUSHING
-
261541479-067 ROD, SHOCK (BLACK)ROD, SHOCK (BLACK)
-
277517851 SCREW HEXAGONSCREW HEXAGON
-
285132390 BUSHING, NUTBUSHING, NUT
-
295333907 SLEEVESLEEVE
-
307080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
315333904 SPACERSPACER
-
327041920 SHOCK, R/T ARVINSHOCK, R/T ARVIN
-
335010422 BUSHINGBUSHING
