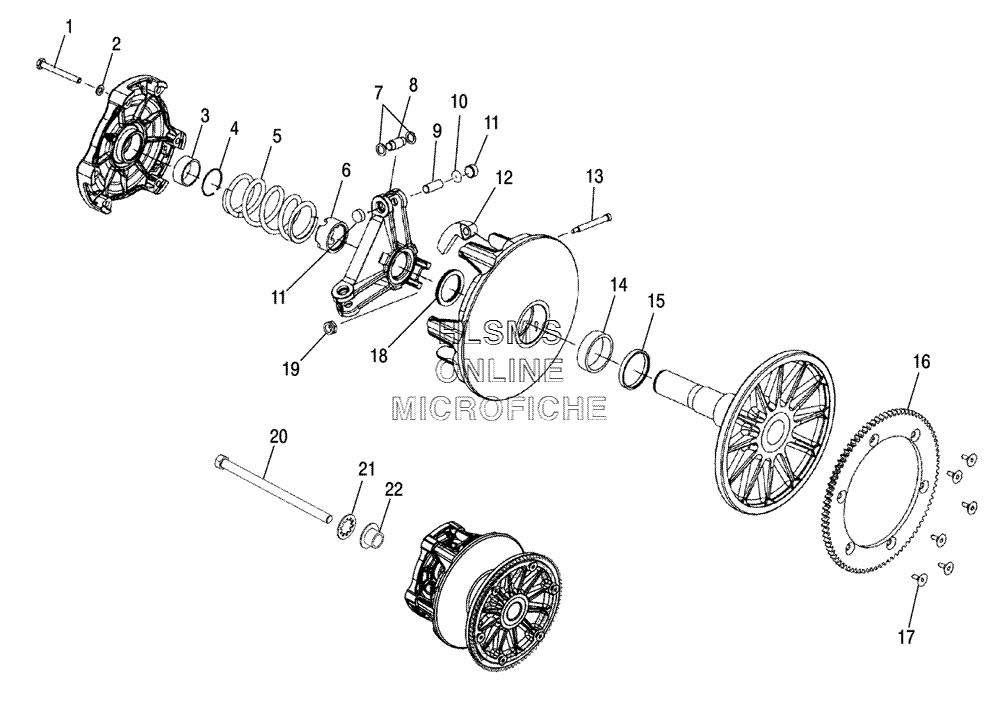

CLUTCH - DRIVE для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    3576516 BEARING, COVER
    BEARING, COVER
  • 4
    7710417 RING, RETAINING COVER
    RING, RETAINING COVER
  • 5
    7042287 SPRING CLUTCH
    SPRING CLUTCH
  • 6
    5020425 NUT, JAM
    NUT, JAM
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ROLLER AND BUSHING ASSY
    ROLLER AND BUSHING ASSY
  • 9
    5133079 PIN ROLLER, 1" SBN
    PIN ROLLER, 1" SBN
  • 10
    2200387 SHIM, DRIVE CLUTCH KIT
    SHIM, DRIVE CLUTCH KIT
  • 11
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 12
    1321526 WT/BUSH.ASSY
    WT/BUSH.ASSY
  • 13
    7515105 PIN, WT., HARDENED
    PIN, WT., HARDENED
  • 14
    3576502 BEARING, SLEEVE
    BEARING, SLEEVE
  • 15
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 16
    2870001 RING, GEAR LIGHTWEIGHT KIT
    RING, GEAR LIGHTWEIGHT KIT
  • 17
    7515351 BOLT
    BOLT
  • 18
    5210754 SPACER (.050)
    SPACER (.050)
  • 18
    5210753 SPACER (.032)
    SPACER (.032)
  • 18
    5242981 SPACER (.025)
    SPACER (.025)
  • 18
    5210752 SPACER (.020)
    SPACER (.020)
  • 18
    5132542 SPACER (.130)
    SPACER (.130)
  • 19
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 20
    7512565 BOLT
    BOLT
  • 21
    7575202 WASHER LOCK
    WASHER LOCK
  • 22
    5010287 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 22
    1322316 DRIVE CLUTCH ASSY (INCL. ALL LESS 5, 12)
    DRIVE CLUTCH ASSY (INCL. ALL LESS 5, 12)
