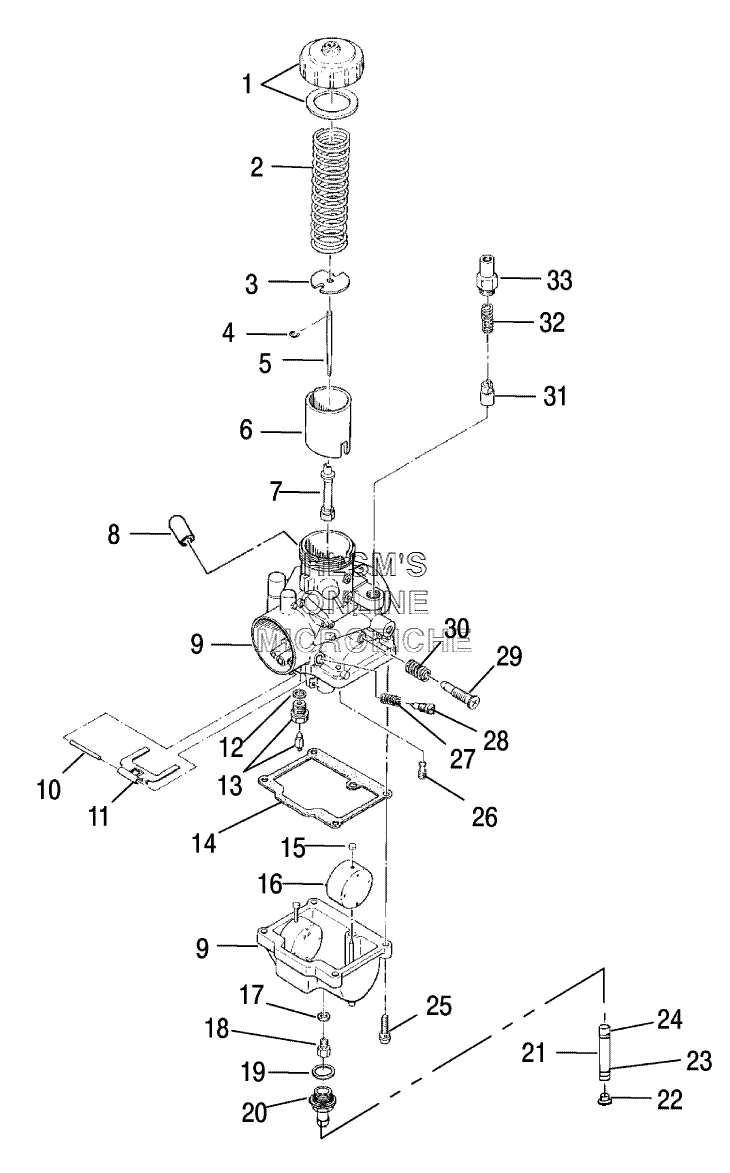

CARBURETOR ASSEMBLY для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3131516 MIXING CHAMBER TOP ASSY (INCL. GASKET)
    MIXING CHAMBER TOP ASSY (INCL. GASKET)
  • 2
    3130354 SPRING, THROTTLE
    SPRING, THROTTLE
  • 3
    3130002 PLATE, THROTTLE
    PLATE, THROTTLE
  • 4
    3130508 E-RING
    E-RING
  • 5
    3131466 NEEDLE, JET
    NEEDLE, JET
  • 6
    3130468 VALVE, THROTTLE (2.5)
    VALVE, THROTTLE (2.5)
  • 7
    3130469 NEEDLE JET
    NEEDLE JET
  • 8
    3130479 CAP
    CAP
  • 9
    3131465 CARBURETOR ASSY (INCL. 1-20, 25-33)
    CARBURETOR ASSY (INCL. 1-20, 25-33)
  • 10
    3130361 PIN, FLOAT
    PIN, FLOAT
  • 11
    3130018 ARM, FLOAT
    ARM, FLOAT
  • 12
    3130017 PACKING, NEEDLE VALVE
    PACKING, NEEDLE VALVE
  • 13
    3131146 VALVE, NEEDLE (1.5)
    VALVE, NEEDLE (1.5)
  • 14
    3130020 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 15
    3130237 CAP
    CAP
  • 16
    3130021 FLOAT ASSY
    FLOAT ASSY
  • 17
    3130014 WASHER
    WASHER
  • 18
    3130117 JET, MAIN
    JET, MAIN
  • 19
    3130239 O-RING
    O-RING
  • 20
    3130573 NIPPLE
    NIPPLE
  • 21
    8450045-153 FUEL LINE (5 FT)
    FUEL LINE (5 FT)
  • 22
    5431893 PLUG, TRAP
    PLUG, TRAP
  • 23
    7080544 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    7080534 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    3130025 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 26
    3130066 JET, PILOT
    JET, PILOT
  • 27
    3130012 SPRING, AIR ADJUST
    SPRING, AIR ADJUST
  • 28
    3130011 SCREW, AIR
    SCREW, AIR
  • 29
    3130324 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 30
    3130010 SPRING, THROTTLE ADJUSTER
    SPRING, THROTTLE ADJUSTER
  • 31
    3130328 PLUNGER ASSY
    PLUNGER ASSY
  • 32
    3130006 SPRING, PLUNGER
    SPRING, PLUNGER
  • 33
    3130359 CAP, PLUNGER
    CAP, PLUNGER
