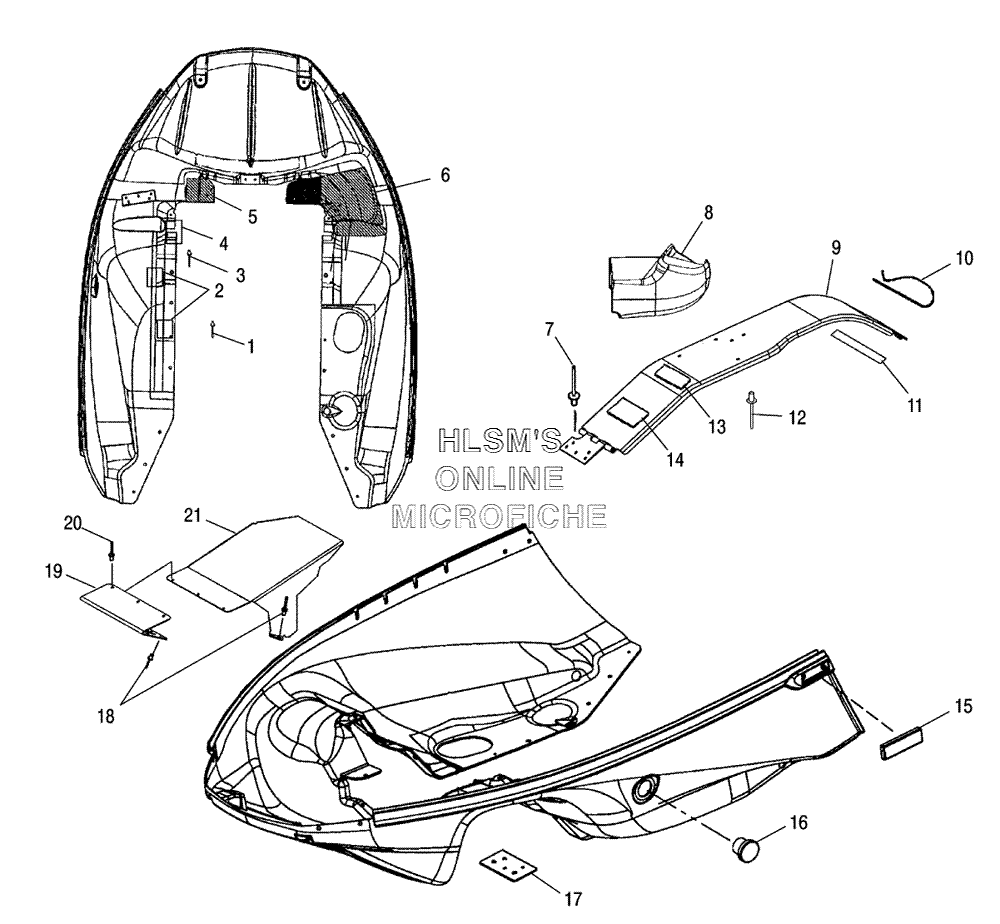

NOSEPAN ASSEMBLY #2 для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска`
-
№АртикулНазвание
-
17621334 RIVETRIVET
-
27080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
37621462 RIVETRIVET
-
45811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
55812020 FOIL, TAPEFOIL, TAPE
-
65811723 FOIL, TAPEFOIL, TAPE
-
77621402 RIVET, POPRIVET, POP
-
85434493 DUCT ENGINE AIR OUTLETDUCT ENGINE AIR OUTLET
-
85434531 DUCT ENGINE AIR OUTLET (SERIAL #'S 602663-602674, 602738-602787)DUCT ENGINE AIR OUTLET (SERIAL #'S 602663-602674, 602738-602787)
-
91013790 CLUTCH GUARD ASSYCLUTCH GUARD ASSY
-
107080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
115812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
127621485 RIVETRIVET
-
137079297 DECAL WARNING, ENGINE AND CLUTCHDECAL WARNING, ENGINE AND CLUTCH
-
147173218 DECAL TROUBLE SHOOT EDGE PPS/CLKRDECAL TROUBLE SHOOT EDGE PPS/CLKR
-
152670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
165433926 PLUG, OBLONGPLUG, OBLONG
-
175211722 PLATE, BACKERPLATE, BACKER
-
187621467 RIVET, BLINDRIVET, BLIND
-
195247228 DUCT (FRONT)DUCT (FRONT)
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
215247229 DUCT, BACKDUCT, BACK
