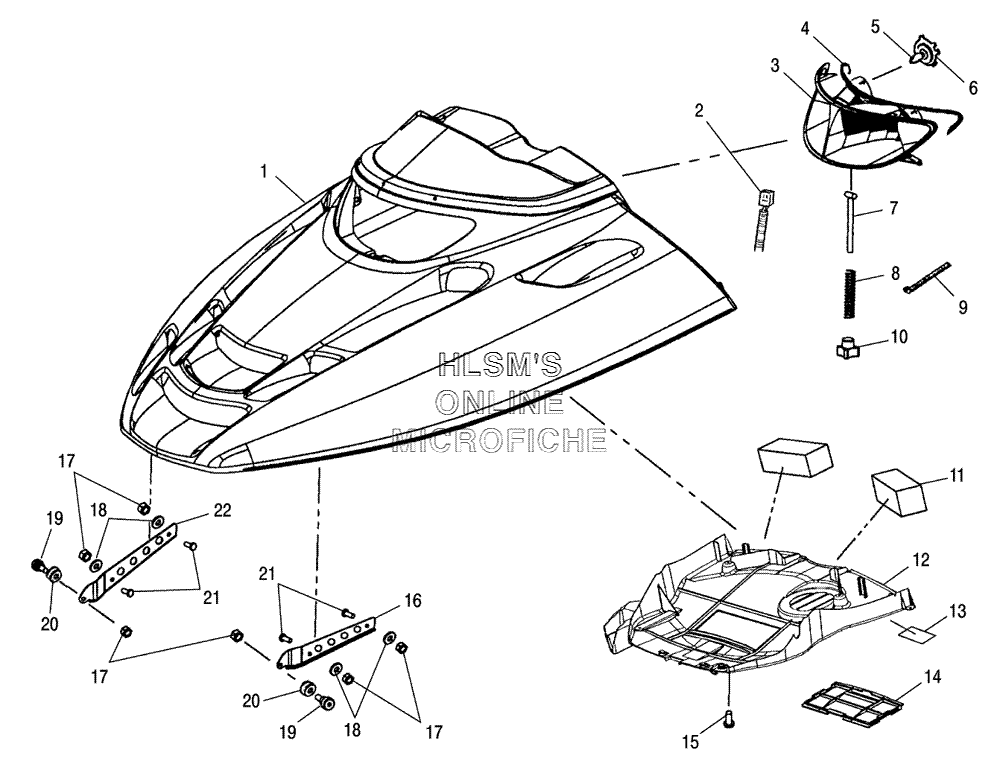

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска`
-
№АртикулНазвание
-
12632727-499 HOOD, EDGE 2H ASSY (SONIC BLUE) (INCL. FOAM AND FOIL)HOOD, EDGE 2H ASSY (SONIC BLUE) (INCL. FOAM AND FOIL)
-
12632783-499 HOOD, EGDE, FAN SERVICE ASSY (SONIC BLUE) (INCL. FOAM AND FOIL) (SERIAL #'S 602663-602674, 602738-602787)HOOD, EGDE, FAN SERVICE ASSY (SONIC BLUE) (INCL. FOAM AND FOIL) (SERIAL #'S 602663-602674, 602738-602787)
-
22461015 HARNESS HEADLIGHT, E/RHARNESS HEADLIGHT, E/R
-
32410132 HEADLAMP, 2-BULB ASSY (INCL. BULBS)HEADLAMP, 2-BULB ASSY (INCL. BULBS)
-
45812450 SEAL HEADLIGHT, ONE PIECESEAL HEADLIGHT, ONE PIECE
-
52870448 BULB, QUARTZ.HEADLIGHTBULB, QUARTZ.HEADLIGHT
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
87041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
97080138 CABLE TIECABLE TIE
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632491 PLENUM, FOIL ASSYPLENUM, FOIL ASSY
-
125811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
125812324 FOILFOIL
-
137170740 DECAL SUSPENSION SET UP EDGEDECAL SUSPENSION SET UP EDGE
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/LEFT/BLACK)HINGE (UPPER/LEFT/BLACK)
-
177542122 NUT NYLOKNUT NYLOK
-
187558301 WASHER, FLATWASHER, FLAT
-
197512113 BOLTBOLT
-
205332403 SPACERSPACER
-
217512240 BOLTBOLT
-
225243568-067 HINGE (UPPER/RIGHT/BLACK)HINGE (UPPER/RIGHT/BLACK)
