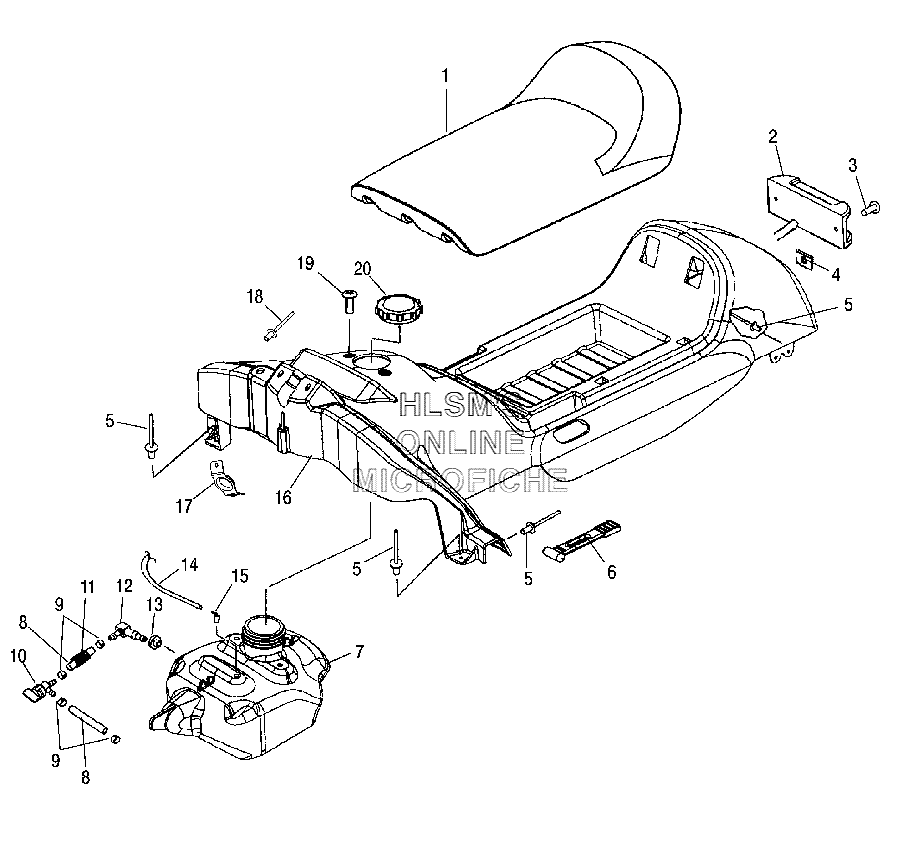

SEAT W/ GAS TANK ASSEMBLY для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска
-
№АртикулНазвание
-
12683760 SEAT CUSHION 120 XR (INCL. COVER)SEAT CUSHION 120 XR (INCL. COVER)
-
12683761 SEAT COVER 120 XRSEAT COVER 120 XR
-
22872427 TAILLIGHT, W/ HARNESSTAILLIGHT, W/ HARNESS
-
37512091 SCREWSCREW
-
47670094 NUTNUT
-
47670094 NUTNUT
-
57621472 RIVETRIVET
-
65433150 STRAPSTRAP
-
72520171 TANK, GAS ASSY. (INCL. 12, 13)TANK, GAS ASSY. (INCL. 12, 13)
-
88350018-600 TUBING-ETHERTUBING-ETHER
-
97080307 CLAMP, HOSECLAMP, HOSE
-
107052249 VALVE-FUEL, PLASTICVALVE-FUEL, PLASTIC
-
114010051-13 CONDUIT-CONVOLUTED (13CM)CONDUIT-CONVOLUTED (13CM)
-
127052348 FITTINGFITTING
-
137052028 GROMMETGROMMET
-
148450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
157052095 FITTING, 90 DEG, 1/8FITTING, 90 DEG, 1/8
-
162632154-070 CONSOLE, SEAT/TANK COVER ASSY. (BLACK)CONSOLE, SEAT/TANK COVER ASSY. (BLACK)
-
175243049 GUIDE-RECOILGUIDE-RECOIL
-
187621330 RIVET, POPRIVET, POP
-
197515148 SCREWSCREW
-
205433687 CAP, GAS TANKCAP, GAS TANK
