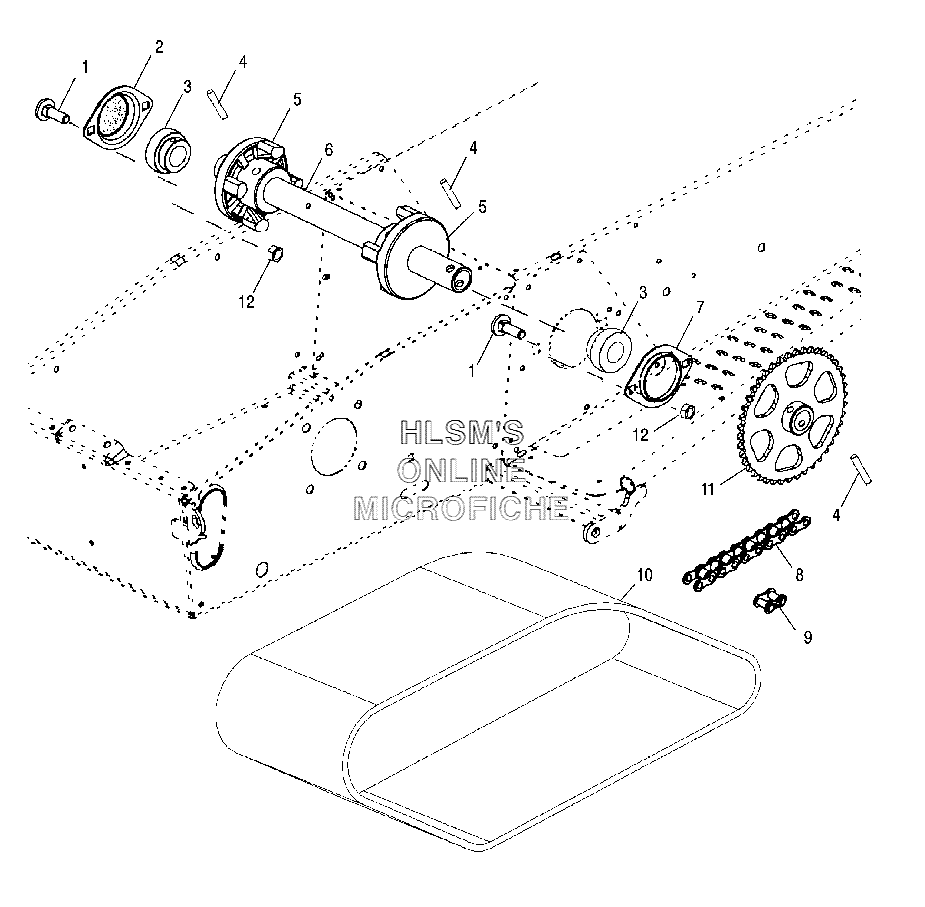

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска`
-
№АртикулНазвание
-
17517736 BOLT, CARRIER (5/16-18X1/2)BOLT, CARRIER (5/16-18X1/2)
-
25244302 FLANGE, 2 BOLT, COVEREDFLANGE, 2 BOLT, COVERED
-
33514338 BEARING-1'', SET SCREWBEARING-1'', SET SCREW
-
47661913 PIN, SPRINGPIN, SPRING
-
55433455 SPROCKET-4-LUGSPROCKET-4-LUG
-
66230172 SHAFT, DRIVESHAFT, DRIVE
-
75222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
83221116 CHAIN, ROLLER (#40)CHAIN, ROLLER (#40)
-
93221122 LINK, CONNECTING (#40 DL)LINK, CONNECTING (#40 DL)
-
105411751 TRACK, TRI-STAR (10X68)TRACK, TRI-STAR (10X68)
-
111013095 SPROCKET, 1'' SHAFT (42 TEETH)SPROCKET, 1'' SHAFT (42 TEETH)
-
127542344 NUT, NYLOKNUT, NYLOK
