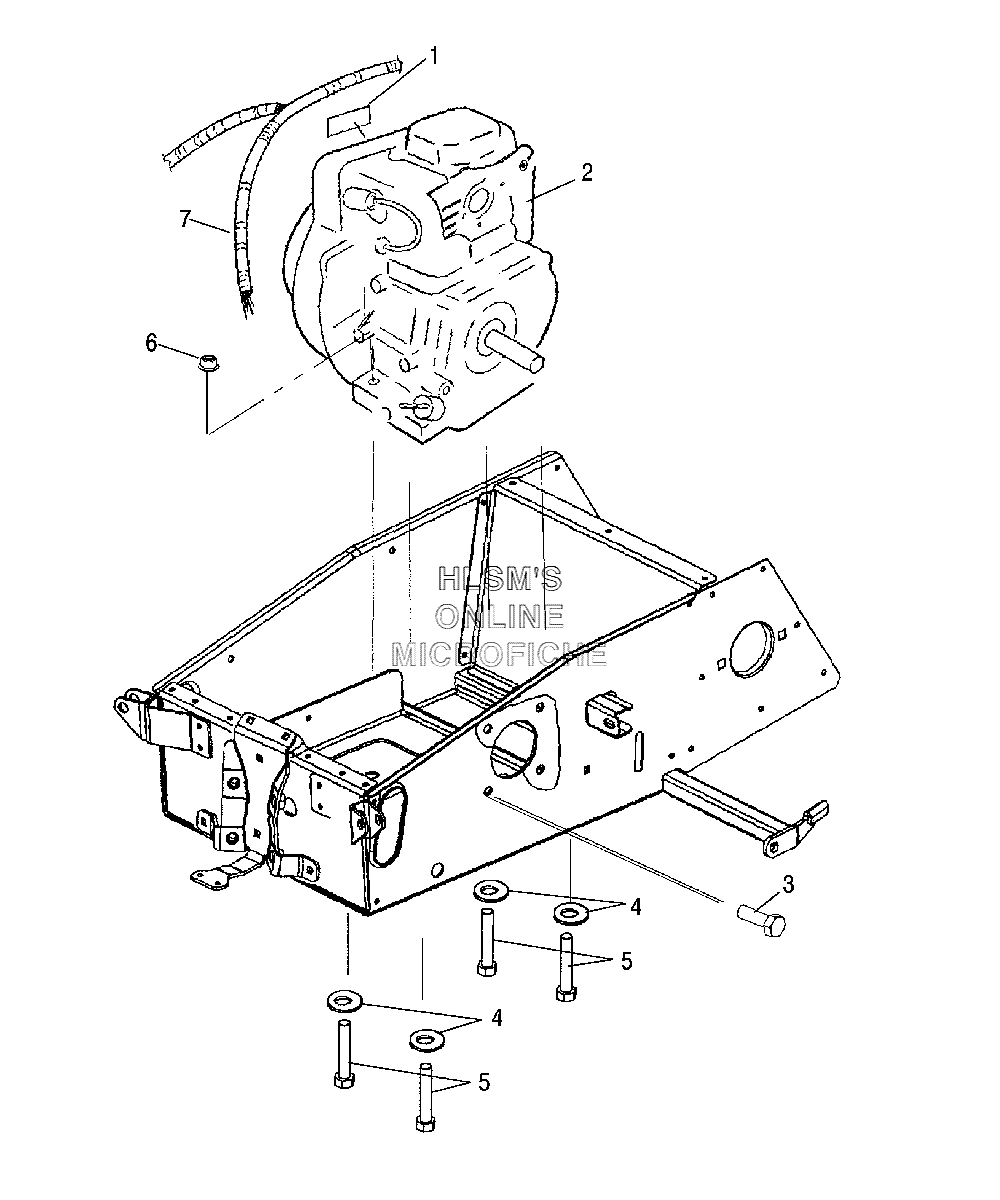

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска
‹-+›
-
№АртикулНазвание
-
17173341 DECAL-ENGINE, ''POLARIS''DECAL-ENGINE, ''POLARIS''
-
21211798 ENGINE ASSY. (IF BUILT BEFORE 7/29/05)ENGINE ASSY. (IF BUILT BEFORE 7/29/05)
-
21202923 ENGINE ASSY. (IF BUILT AFTER 7/29/05)ENGINE ASSY. (IF BUILT AFTER 7/29/05)
-
37517810 SCREWSCREW
-
47555954 WASHERWASHER
-
57512329 BOLTBOLT
-
67542343 NUT, FLANGENUT, FLANGE
-
72460919 HARNESS-MAIN WIREHARNESS-MAIN WIRE
Все узлы модели:
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- GOVERNOR
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- INTAKE ASSEMBLY
- NOSEPAN ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL W/ BLOWER HOUSING
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
