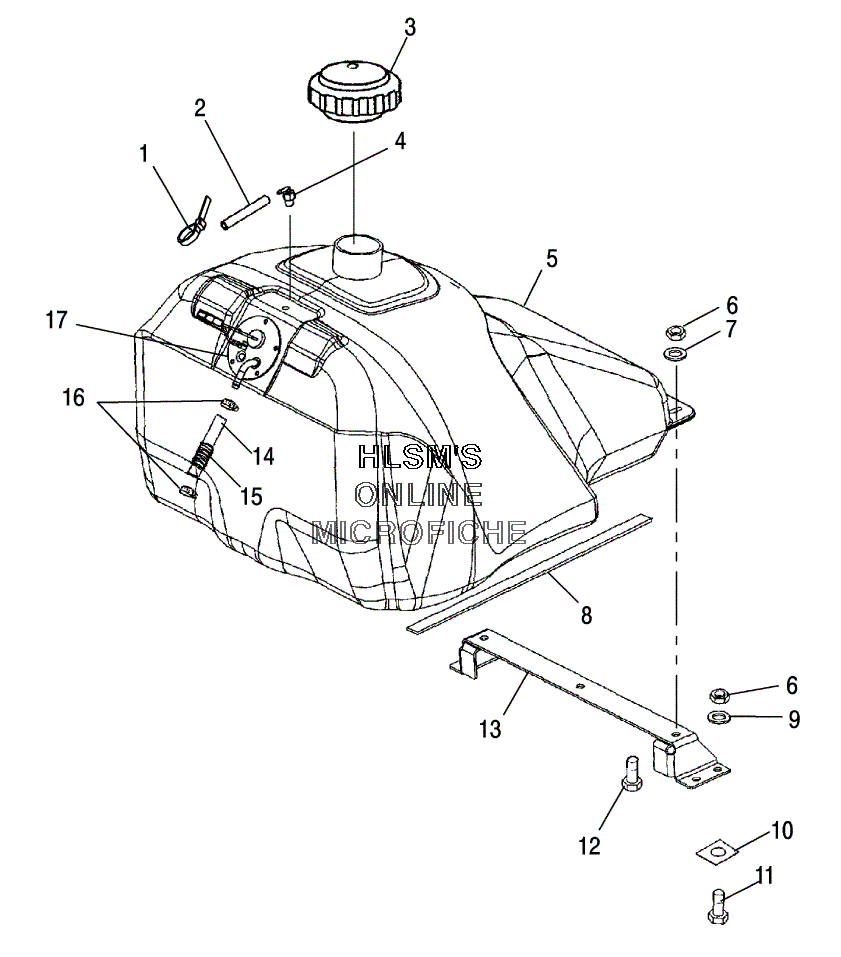

FUEL TANK для Polaris FRONTIER TOURING (S05NT7DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE RELEASABLE (5 1/2")
    CABLE TIE RELEASABLE (5 1/2")
  • 2
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 3
    2511195-070 CAP, FUEL ASSY (BLACK)
    CAP, FUEL ASSY (BLACK)
  • 4
    7052095 FITTING (90 DEG, 1/8)
    FITTING (90 DEG, 1/8)
  • 5
    2520389 FUEL TANK ASSY (INCL. 4)
    FUEL TANK ASSY (INCL. 4)
  • 6
    7542122 NUT NYLOK
    NUT NYLOK
  • 7
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 8
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 9
    7555843 WASHER WROUGHT
    WASHER WROUGHT
  • 10
    7670021 NUT, SPEED
    NUT, SPEED
  • 11
    7515203 BOLT
    BOLT
  • 12
    7512247 BOLT
    BOLT
  • 13
    5246436-067 BRACKET GASTANK (BLACK)
    BRACKET GASTANK (BLACK)
  • 14
    8450044-153 FUEL LINE (5 FT)
    FUEL LINE (5 FT)
  • 15
    8360052-15 CONDUIT
    CONDUIT
  • 16
    7080417 CLAMP, HOSE (SCREW TYPE)
    CLAMP, HOSE (SCREW TYPE)
  • 17
    2202692 FUEL TANK GASKET KIT (INCL. SCREWS)
    FUEL TANK GASKET KIT (INCL. SCREWS)
