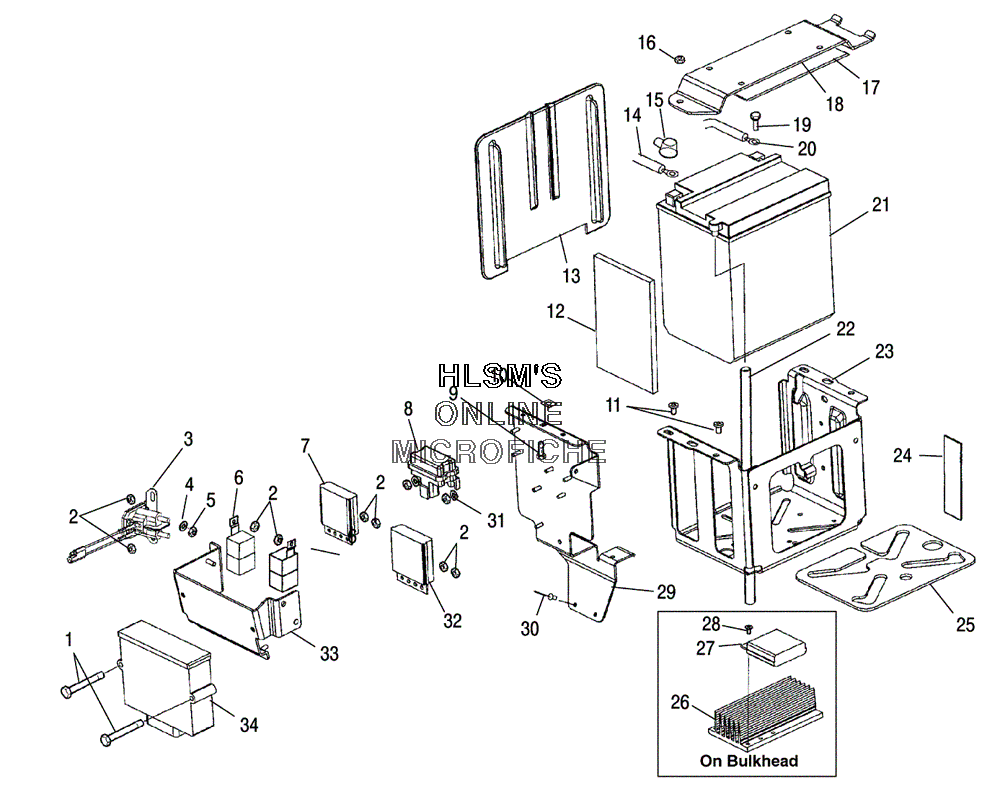

ELECTRICAL - BATTERY BOX для Polaris FRONTIER TOURING (S05NT7DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7518273 SCREW UNSL HEXAGON
    SCREW UNSL HEXAGON
  • 2
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 3
    4010971 STARTER SOLENOID SERVICE
    STARTER SOLENOID SERVICE
  • 4
    7552616 WASHER, LOCK
    WASHER, LOCK
  • 5
    7546701 NUT
    NUT
  • 6
    4010725 RELAY SPDT, SEALED
    RELAY SPDT, SEALED
  • 7
    4011132 SWITCH ALTERNATOR CONTROL
    SWITCH ALTERNATOR CONTROL
  • 8
    4010637 SWITCH ROLL OVER
    SWITCH ROLL OVER
  • 9
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 10
    7670021 NUT, SPEED
    NUT, SPEED
  • 11
    7512084 SCREW
    SCREW
  • 12
    5812419 FOAM BATTERY BOX SPACER
    FOAM BATTERY BOX SPACER
  • 13
    5434659 BATTERY RETAINER
    BATTERY RETAINER
  • 14
    4010091 CABLE, BATTERY SOLENOID
    CABLE, BATTERY SOLENOID
  • 15
    5410346 INSUL CABLE SOLENOID
    INSUL CABLE SOLENOID
  • 16
    7542153 NUT, NYLOK FLANGED
    NUT, NYLOK FLANGED
  • 17
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 18
    5245525 COVER BATTERY BOX
    COVER BATTERY BOX
  • 19
    2202099 BATTERY BOLT KIT (30AH)
    BATTERY BOLT KIT (30AH)
  • 20
    4010057 CABLE STARTER (14 IN)
    CABLE STARTER (14 IN)
  • 21
    4010630 BATTERY 30 AMP, TOP MOUNT
    BATTERY 30 AMP, TOP MOUNT
  • 22
    5432077 TUBE, VENT
    TUBE, VENT
  • 23
    1013932-067 WELD BATTERY BOX (BLACK)
    WELD BATTERY BOX (BLACK)
  • 24
    5811651 PAD, BATTERY SIDE
    PAD, BATTERY SIDE
  • 25
    5811623 PAD, BATTERY
    PAD, BATTERY
  • 26
    5133411 HEAT SINK REGULATOR, MACH
    HEAT SINK REGULATOR, MACH
  • 27
    4010538 RECTIFIER REGULATOR, 3-PHASE (LEFT)
    RECTIFIER REGULATOR, 3-PHASE (LEFT)
  • 28
    7512018 SCREW
    SCREW
  • 29
    1014133 BRACKET, BATTERY BOX WITH STUDS ASSY
    BRACKET, BATTERY BOX WITH STUDS ASSY
  • 30
    7621432 RIVET (3/16X.402)
    RIVET (3/16X.402)
  • 31
    7555746 WASHER
    WASHER
  • 32
    4011131 MODULE LOAD SHED (LR63)
    MODULE LOAD SHED (LR63)
  • 33
    1014134 BRACKET ECU WITH STUDS ASSY
    BRACKET ECU WITH STUDS ASSY
  • 34
    4010972 ECU CALIBRATION
    ECU CALIBRATION
