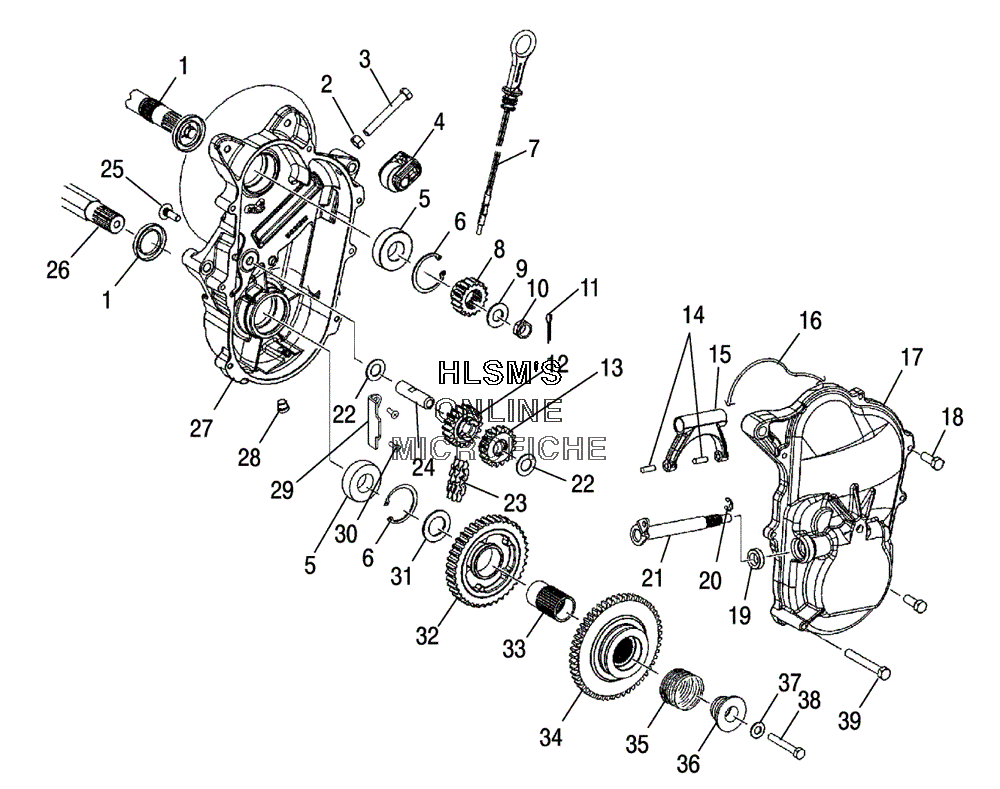

CHAINCASE ASSEMBLY для Polaris FRONTIER TOURING (S05NT7DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    7542404 NUT
    NUT
  • 3
    7515459 SCREW
    SCREW
  • 4
    1341437 TIGHTENER, CHAIN ASSY
    TIGHTENER, CHAIN ASSY
  • 5
    3514309 BEARING, BALL
    BEARING, BALL
  • 6
    7718406 RING, RETAINING
    RING, RETAINING
  • 7
    1332143 DIPSTICK ASSY
    DIPSTICK ASSY
  • 8
    3221096 SPROCKET (20T, 3/4W, 15 SPLINE HYVO PM)
    SPROCKET (20T, 3/4W, 15 SPLINE HYVO PM)
  • 9
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 10
    7547202 NUT 5/8-18 THIN, NYLON INSERT Y
    NUT 5/8-18 THIN, NYLON INSERT Y
  • 11
    7661203 PIN, COTTER
    PIN, COTTER
  • 12
    1341241 SPROCKET, PINION ASSY (18T 3/4W)
    SPROCKET, PINION ASSY (18T 3/4W)
  • 12
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 13
    1341075 PINION GEAR, SPUR ASSY
    PINION GEAR, SPUR ASSY
  • 13
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 14
    7661826 PIN, DOWEL
    PIN, DOWEL
  • 15
    2200363 SHIFT FORK/SHAFT KIT (INCL. 14, 21)
    SHIFT FORK/SHAFT KIT (INCL. 14, 21)
  • 15
    5130805 FORK, SHIFT
    FORK, SHIFT
  • 16
    5812574 GASKET CHAINCASE COVER (7.92)
    GASKET CHAINCASE COVER (7.92)
  • 17
    5133615 COVER CHAINCASE, REV (7.92, 1.265)
    COVER CHAINCASE, REV (7.92, 1.265)
  • 18
    7512242 SCREW
    SCREW
  • 19
    3610029 SEAL, OIL
    SEAL, OIL
  • 20
    7710415 RING, RETAINER
    RING, RETAINER
  • 21
    1341388-067 WELD SHAFT SHIFT (BLACK)
    WELD SHAFT SHIFT (BLACK)
  • 22
    7555877 WASHER, THRUST
    WASHER, THRUST
  • 23
    3221109 CHAIN, HYVO. (74P, 3/4W)
    CHAIN, HYVO. (74P, 3/4W)
  • 24
    5131770 SHAFT, PINION WITH WRENCH FLATS
    SHAFT, PINION WITH WRENCH FLATS
  • 25
    7515477 SCREW, CARRIAGE
    SCREW, CARRIAGE
  • 27
    5134085 CHAINCASE (7.92 CD)
    CHAINCASE (7.92 CD)
  • 28
    7052115 PLUG
    PLUG
  • 29
    5246421 BRACKET CHAIN RETENTION WITH TAB
    BRACKET CHAIN RETENTION WITH TAB
  • 30
    7512019 SCREW
    SCREW
  • 31
    7555871 WASHER
    WASHER
  • 32
    1341228 SPROCKET, REV ASSY (41T) (3/4W, PM)
    SPROCKET, REV ASSY (41T) (3/4W, PM)
  • 32
    3555104 BEARING, NEEDLE
    BEARING, NEEDLE
  • 33
    5130720 COUPLER, DRIVE
    COUPLER, DRIVE
  • 34
    1341410 REVERSE GEAR ASSY
    REVERSE GEAR ASSY
  • 35
    7041887 SPRING-COMPRESSION
    SPRING-COMPRESSION
  • 36
    5130727 RETAINER, DRIVE COUPLER
    RETAINER, DRIVE COUPLER
  • 37
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 38
    7517581 SCREW
    SCREW
  • 39
    7518052 SCREW HEXAGON/WH
    SCREW HEXAGON/WH
