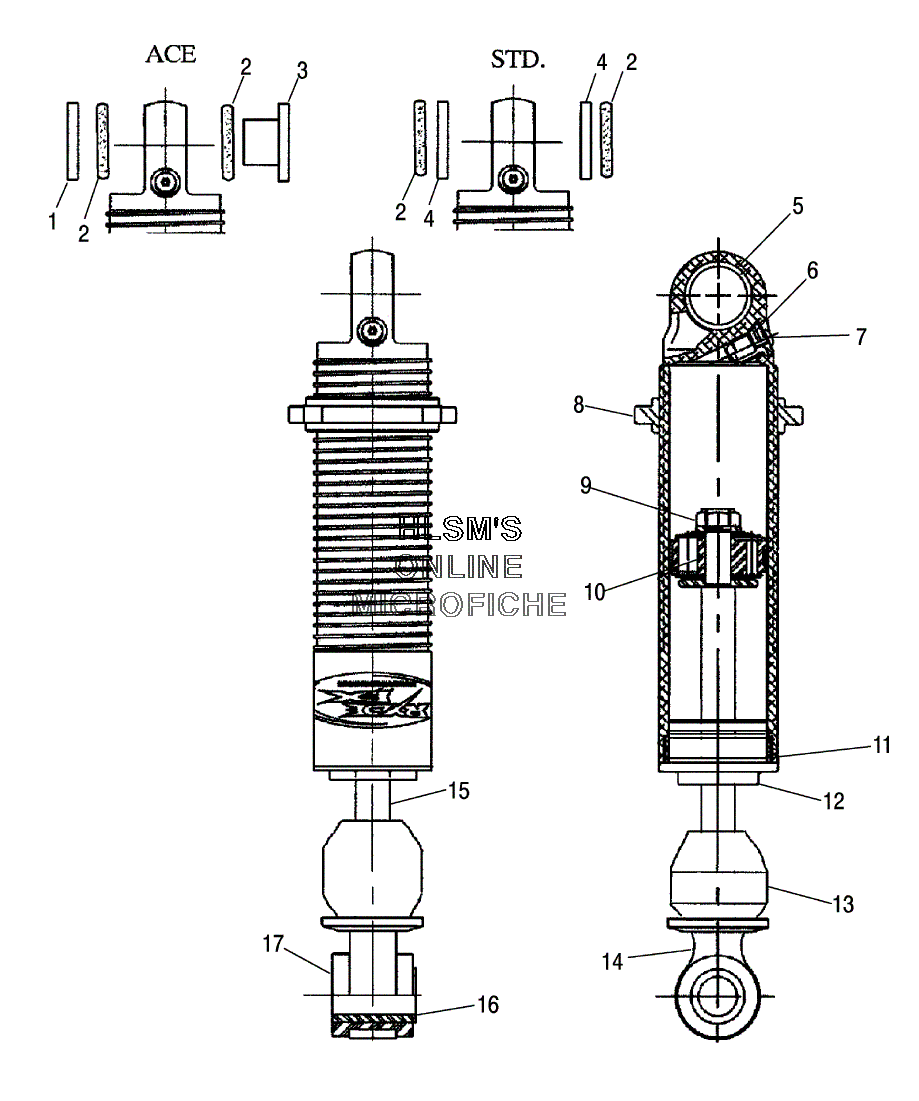

SUSPENSION - FOX SHOCK - REAR TRACK для Polaris 800 EDGE TOURING (S05NT6ES) - 2005 года выпуска`
-
№АртикулНазвание
-
15133403 BUSHING (ACE)BUSHING (ACE)
-
25411092 O-RING (LEFT)O-RING (LEFT)
-
35133402 BUSHING FLANGE (ACE)BUSHING FLANGE (ACE)
-
47556401 BUSHING (LEFT) (M-12)BUSHING (LEFT) (M-12)
-
53514450 BEARING PLAINBEARING PLAIN
-
61700056 VALVE SCREW (LEFT)VALVE SCREW (LEFT)
-
71700184 PRESS VALVE ASSYPRESS VALVE ASSY
-
71700047 PRESS VALVE O-RING (LEFT)PRESS VALVE O-RING (LEFT)
-
81700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
91700216 NUTNUT
-
101700100 BANDED PISTON 060" ORIFCE ASSYBANDED PISTON 060" ORIFCE ASSY
-
101700031 PISTON WEAR BANDPISTON WEAR BAND
-
101700077 TOP OUT WASHERTOP OUT WASHER
-
101700078 BACK UP WASHERBACK UP WASHER
-
111700051 CYLINDER HEAD O-RING (LEFT)CYLINDER HEAD O-RING (LEFT)
-
121700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
131700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
141700011 MOUNT (UPPER)MOUNT (UPPER)
-
151700215 SHAFTSHAFT
-
161700069 SLEEVESLEEVE
-
171700075 BUSHINGBUSHING
-
177042141 SHOCK TRACKSHOCK TRACK
