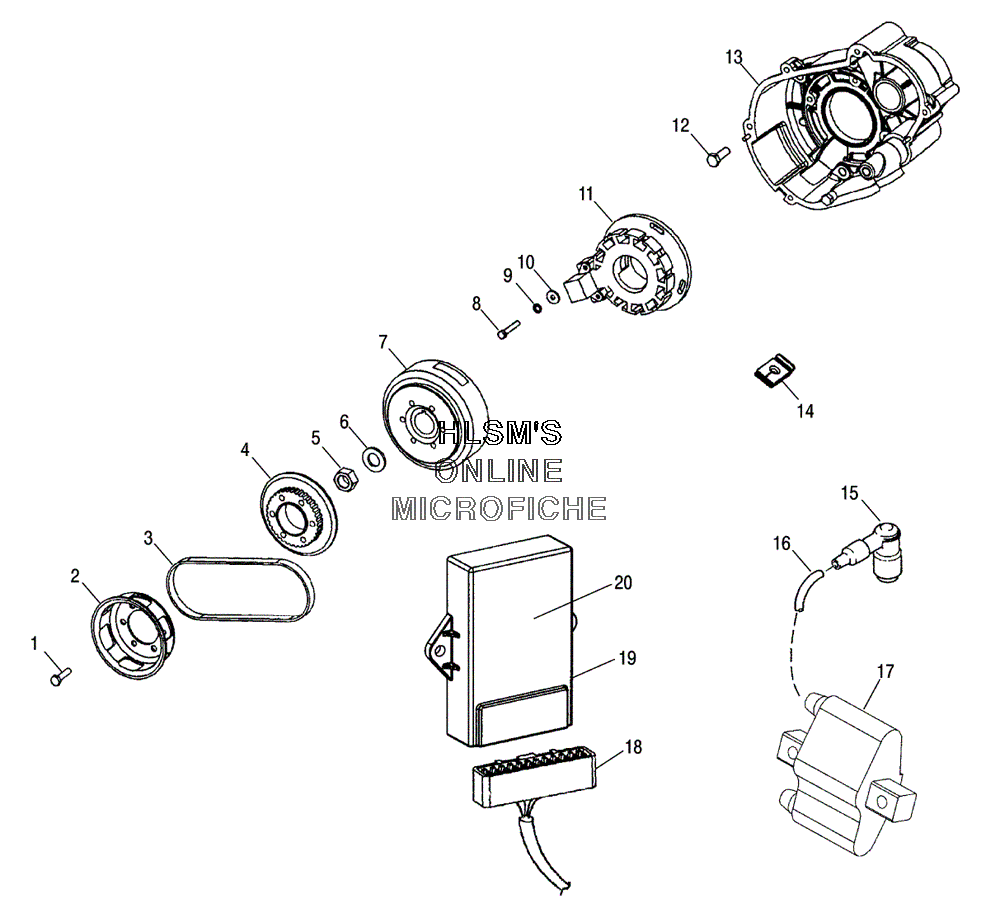

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 EDGE TOURING (S05NT6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17517998 SCREW HEXAGON FLAT (LEFT)SCREW HEXAGON FLAT (LEFT)
-
23021144 PULLEY, RECOILPULLEY, RECOIL
-
32201821 WATER PUMP BELT KITWATER PUMP BELT KIT
-
45630824 PULLEY, WATER PUMP DRIVEPULLEY, WATER PUMP DRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010677 FLYWHEEL IGNITIONFLYWHEEL IGNITION
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCKWASHER, LOCK
-
107555970 WASHER, FLATWASHER, FLAT
-
114010297 STATOR, IGNITIONSTATOR, IGNITION
-
127516734 SCREWSCREW
-
131202161 HOUSING, IGNITION ASSYHOUSING, IGNITION ASSY
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
164010124-305 WIRE, IGN, BULK (305CM)WIRE, IGN, BULK (305CM)
-
174060229 COIL, IGNITION KOKCOIL, IGNITION KOK
-
184010872 HARNESS IGNITION DETONATIONHARNESS IGNITION DETONATION
-
192202522 CDI, KIT (INCL 19, NYOGEL AND DECAL)CDI, KIT (INCL 19, NYOGEL AND DECAL)
-
197077026 DECAL, SPARK PLUG RECDECAL, SPARK PLUG REC
-
207170413 DECAL DETDECAL DET
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRIC MODULE (M-12) (ACE)
- • ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD #1
- HOOD ASSEMBLY W/ WINDSHIELD #2
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY #1
- STEERING ASSEMBLY #2
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP/OIL PUMP
