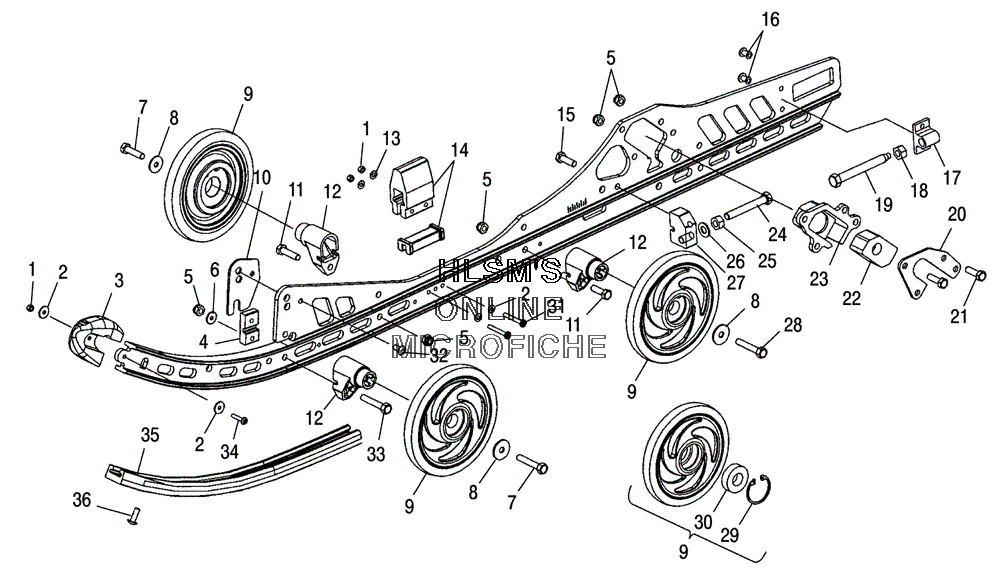

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 800 EDGE TOURING (S05NT6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555792 WASHERWASHER
-
35434374 CAP RAIL TIPCAP RAIL TIP
-
45132577 BLOCK RAIL SUPPORTBLOCK RAIL SUPPORT
-
57542324 NUT, NYLOK (LEFT)NUT, NYLOK (LEFT)
-
67558402 WASHER, FLAT (LEFT)WASHER, FLAT (LEFT)
-
77515382 BOLT (LEFT)BOLT (LEFT)
-
87556179 WASHER SPRING, CONNECTORWASHER SPRING, CONNECTOR
-
91590318-244 WHEEL, SCROLLED 562 ASSY (SILVER) (INCL 29, 30)WHEEL, SCROLLED 562 ASSY (SILVER) (INCL 29, 30)
-
105244651 PLATE RAIL SUPPORTPLATE RAIL SUPPORT
-
117515317 BOLTBOLT
-
125631065 BLOCK WHEEL MOUNT LWTBLOCK WHEEL MOUNT LWT
-
137555783 WASHER, FLATWASHER, FLAT
-
145412336 BUMPER TALLBUMPER TALL
-
145432946 LINER, BUMPERLINER, BUMPER
-
157512392 BOLTBOLT
-
167621501 RIVETRIVET
-
175132444 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
187547156 NUTNUT
-
197517773 SCREW HEADSCREW HEAD
-
205245045 PLATE COUPLER BLOCKPLATE COUPLER BLOCK
-
217512310 SCREW (LEFT)SCREW (LEFT)
-
225434885 BLOCK SLIDER, LONG ETS (LEFT)BLOCK SLIDER, LONG ETS (LEFT)
-
225434886 BLOCK SLIDER, LONG ETS (RIGHT)BLOCK SLIDER, LONG ETS (RIGHT)
-
235631188 GUIDE SLIDER, CAST (LEFT)GUIDE SLIDER, CAST (LEFT)
-
235631189 GUIDE SLIDER, CAST (RIGHT)GUIDE SLIDER, CAST (RIGHT)
-
247515511 SCREW (LEFT)SCREW (LEFT)
-
257542404 NUTNUT
-
267555806 WASHER, FLAT (LEFT)WASHER, FLAT (LEFT)
-
275132584 BLOCK SHOCK PIVOT THREADEDBLOCK SHOCK PIVOT THREADED
-
287515346 SCREWSCREW
-
297718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
303514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
317510504 SCREWSCREW
-
327661845 RIVETRIVET
-
337512329 BOLTBOLT
-
347511975 SCREWSCREW
-
355521632 SLIDER, 45/61" SERVICE, BASICSLIDER, 45/61" SERVICE, BASIC
-
367515199 SCREW (LEFT)SCREW (LEFT)
-
361542004 RAIL, M12 ASSY (LEFT) (INCL 1-3, 14, 16, 17, 31, 34)RAIL, M12 ASSY (LEFT) (INCL 1-3, 14, 16, 17, 31, 34)
-
361542005 RAIL, M12 ASSY (RIGHT) (INCL 1-3, 14, 16, 17, 31, 34)RAIL, M12 ASSY (RIGHT) (INCL 1-3, 14, 16, 17, 31, 34)
