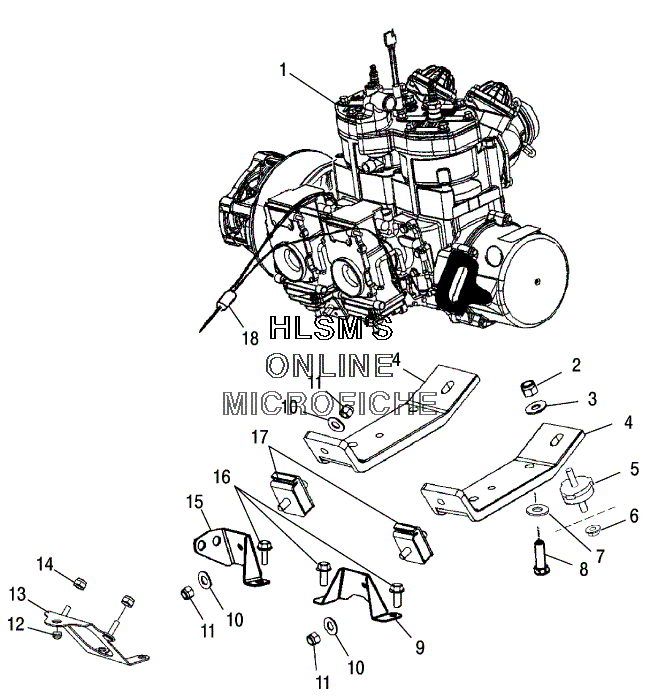

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска`
-
№АртикулНазвание
-
12202515 SHORT BLOCK KIT (SEE NOTE)SHORT BLOCK KIT (SEE NOTE)
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45245465 STRAP ENGINE MOUNT S44 (LEFT)STRAP ENGINE MOUNT S44 (LEFT)
-
45246382 STRAP ENGINE MOUNT S44 (RIGHT)STRAP ENGINE MOUNT S44 (RIGHT)
-
53021220 MOUNT ENGINE (3/8 16)MOUNT ENGINE (3/8 16)
-
67547180 NUT FLANGED (3/8 16 NYLON Z)NUT FLANGED (3/8 16 NYLON Z)
-
77553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87512539 BOLTBOLT
-
95245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
107555806 WASHER, FLATWASHER, FLAT
-
117547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
125410012 PLUG, RUBBER HOLE (.5DIA)PLUG, RUBBER HOLE (.5DIA)
-
131014392 WELD BRACKET PUMP FUELWELD BRACKET PUMP FUEL
-
147542122 NUT NYLOKNUT NYLOK
-
151013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
167517854 SCREWSCREW
-
173021206 MOUNT ENGINE, RECTMOUNT ENGINE, RECT
