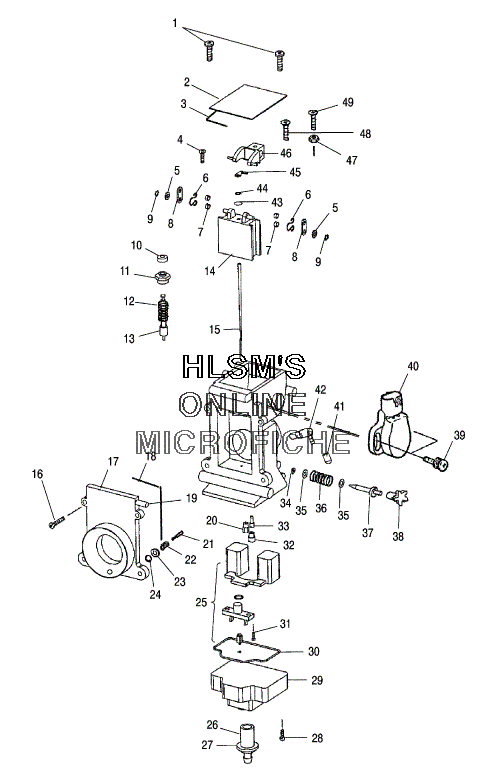

CARBURETOR ASSEMBLY #1 для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска`
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASSY (./258)PLUNGER ASSY (./258)
-
143130790 VALVE, PISTON 2.5VALVE, PISTON 2.5
-
153131268 NEEDLE JETNEEDLE JET
-
163130825 SCREWSCREW
-
173131335 ASSY FUNNELASSY FUNNEL
-
183131356 O-RING, LONG AIR FUNNELO-RING, LONG AIR FUNNEL
-
193130808 PINPIN
-
203130144 JET, MAIN HEXAGON HEAD #440JET, MAIN HEXAGON HEAD #440
-
213131336 SCREW AIRSCREW AIR
-
223131371 SPRINGSPRING
-
233131372 WASHERWASHER
-
243130522 O-RINGO-RING
-
253130859 FLOAT ASSY.FLOAT ASSY.
-
263131248 BOLT DRAINBOLT DRAIN
-
273130863 O-RINGO-RING
-
283130824 SCREWSCREW
-
293130858 FLOAT, BODYFLOAT, BODY
-
303130861 O-RINGO-RING
-
313130860 SCREWSCREW
-
323130068 JET, PILOT #45JET, PILOT #45
-
333130768 JET, STARTER #VM11/22 140JET, STARTER #VM11/22 140
-
343130835 PACKINGPACKING
-
353130837 WASHERWASHER
-
363130836 SPRINGSPRING
-
373130987 ADJUSTERADJUSTER
-
383130986 CAPCAP
-
393131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
403131009 SENSOR ASSY (MAG SIDE)SENSOR ASSY (MAG SIDE)
-
413130479 CAPCAP
-
427051020 VALVE, CHECK (90 DEG)VALVE, CHECK (90 DEG)
-
433130867 PACKINGPACKING
-
443130868 E-RINGE-RING
-
453130843 PLATEPLATE
-
463130855 LEVER ASSYLEVER ASSY
-
463130849 LEVER ASSYLEVER ASSY
-
473130848 RINGRING
-
483130854 SCREWSCREW
-
493130850 SCREWSCREW
-
491253445 CARBURETOR ASSY TM 38CARBURETOR ASSY TM 38
