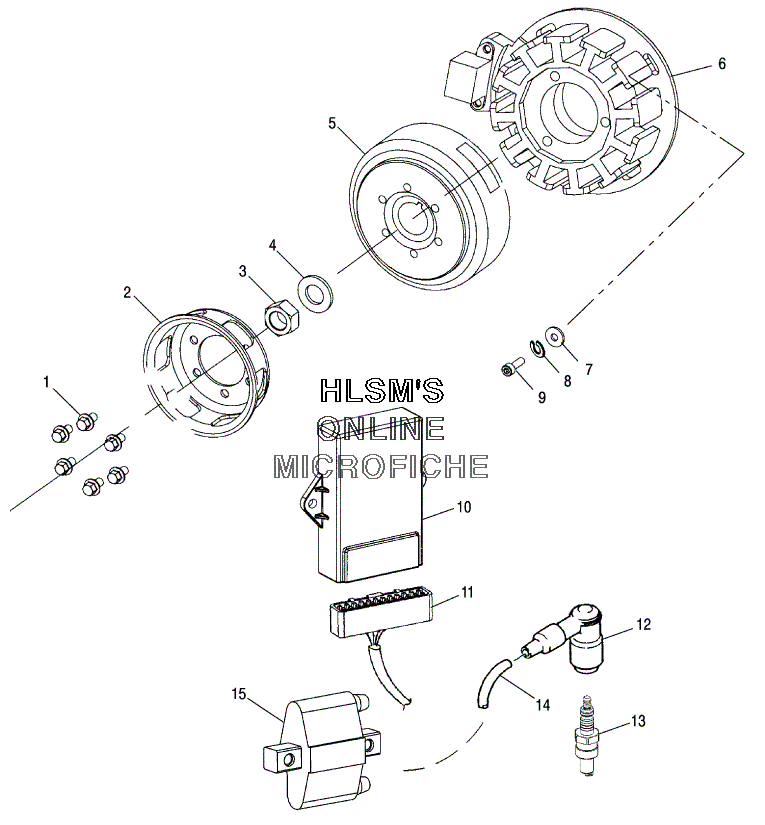

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010677 FLYWHEEL IGNITION 18ШFLYWHEEL IGNITION 18Ш
-
64060222 STATORSTATOR
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102202322 CDI KIT S60-44-4010715 (INCL. NYOGEL AND DECAL)CDI KIT S60-44-4010715 (INCL. NYOGEL AND DECAL)
-
114010811 HARNESS IGNITION 16 BITHARNESS IGNITION 16 BIT
-
124020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
133070190 SPARK PLUG CHAMPION RN57Y CCSPARK PLUG CHAMPION RN57Y CC
-
144010124-305 WIRE, IGNITION BULK (305CM)WIRE, IGNITION BULK (305CM)
-
154060229 COIL, IGNITION KOKCOIL, IGNITION KOK
