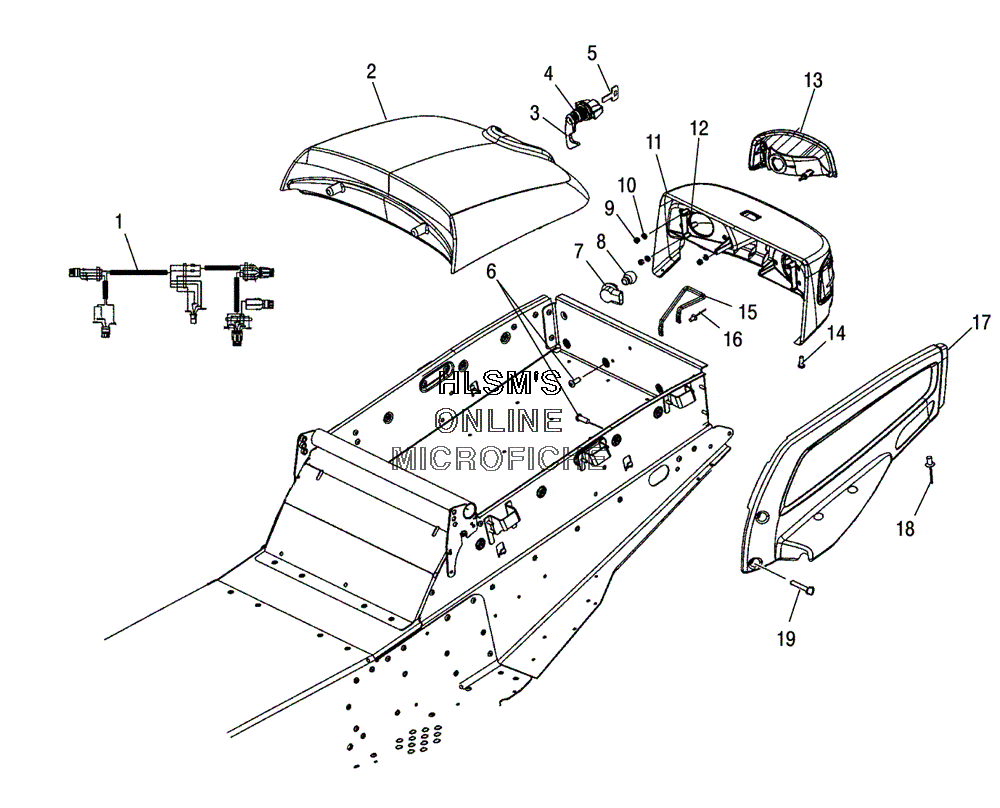

CARGO BOX W/ TAILLIGHT ASSY для Polaris 340 EDGE TOURING (S05NT3AS) - 2005 года выпуска`
-
№АртикулНазвание
-
12461166 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
22632641 COVER, TRUNK ASSY (INCL. 3)COVER, TRUNK ASSY (INCL. 3)
-
35246525 PAWL TRUNK LOCKPAWL TRUNK LOCK
-
47081093 LOCK TRUNKLOCK TRUNK
-
54010873 RING WITH KEYS ASSYRING WITH KEYS ASSY
-
67512076 SCREWSCREW
-
74010767 SOCKET BULBSOCKET BULB
-
84010764 BULB TAILLIGHTBULB TAILLIGHT
-
97546703 NUT, NYLOKNUT, NYLOK
-
107556088 WASHER, FLATWASHER, FLAT
-
127670042 U CLIPU CLIP
-
132410327 REFLECTOR ASSY (LEFT)REFLECTOR ASSY (LEFT)
-
132410328 REFLECTOR ASSY (RIGHT)REFLECTOR ASSY (RIGHT)
-
147517560 SCREWSCREW
-
155246523 BAIL TRUNK LOCKBAIL TRUNK LOCK
-
167661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
175435128-453 SKIRT SNOW, EDGE AVAL (LEFT/GRAY)SKIRT SNOW, EDGE AVAL (LEFT/GRAY)
-
175435129-453 SKIRT SNOW, EDGE AVAL (RIGHT/GRAY)SKIRT SNOW, EDGE AVAL (RIGHT/GRAY)
-
187621467 RIVET, BLINDRIVET, BLIND
-
197517916 SCREWSCREW
-
192410324-453 TAILLIGHT, ASSY (GRAY) (INCL. 9-13)TAILLIGHT, ASSY (GRAY) (INCL. 9-13)
