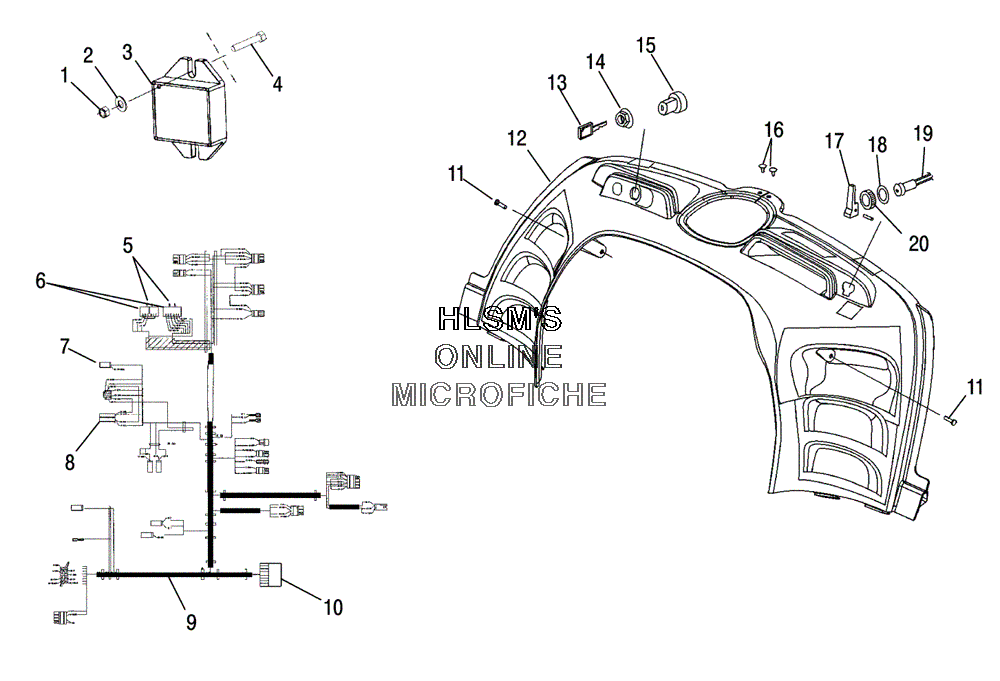

CONSOLE для Polaris 340 EDGE TOURING (S05NT3AS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 2
    7555746 WASHER
    WASHER
  • 3
    4010794 REGULATOR AC/DC
    REGULATOR AC/DC
  • 4
    7517263 SCREW, HEXAGON SEMS
    SCREW, HEXAGON SEMS
  • 5
    4010193 HOUSING CONNECTOR
    HOUSING CONNECTOR
  • 6
    4010192 SOCKET
    SOCKET
  • 7
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 8
    4020063 HOUSING, PACK
    HOUSING, PACK
  • 9
    2461148 HARNESS MAIN, ER FS DIAG
    HARNESS MAIN, ER FS DIAG
  • 10
    4020057 HOUSING
    HOUSING
  • 11
    7515199 SCREW
    SCREW
  • 12
    5434134 CONSOLE
    CONSOLE
  • 13
    9990000 N/A, USE COMPONENTS (SEE NOTE:)
    N/A, USE COMPONENTS (SEE NOTE:)
  • 14
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 15
    2200358 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 16
    7670088 CLIP, PLASTIC DART, NYLON
    CLIP, PLASTIC DART, NYLON
  • 17
    2200188 CHOKE CONTROL KIT (INCL. PIN)
    CHOKE CONTROL KIT (INCL. PIN)
  • 18
    7571610 WASHER LOCK
    WASHER LOCK
  • 19
    7081092 CABLE CHOKE (INCL. 17, 20)
    CABLE CHOKE (INCL. 17, 20)
  • 20
    7080229 NUT
    NUT
