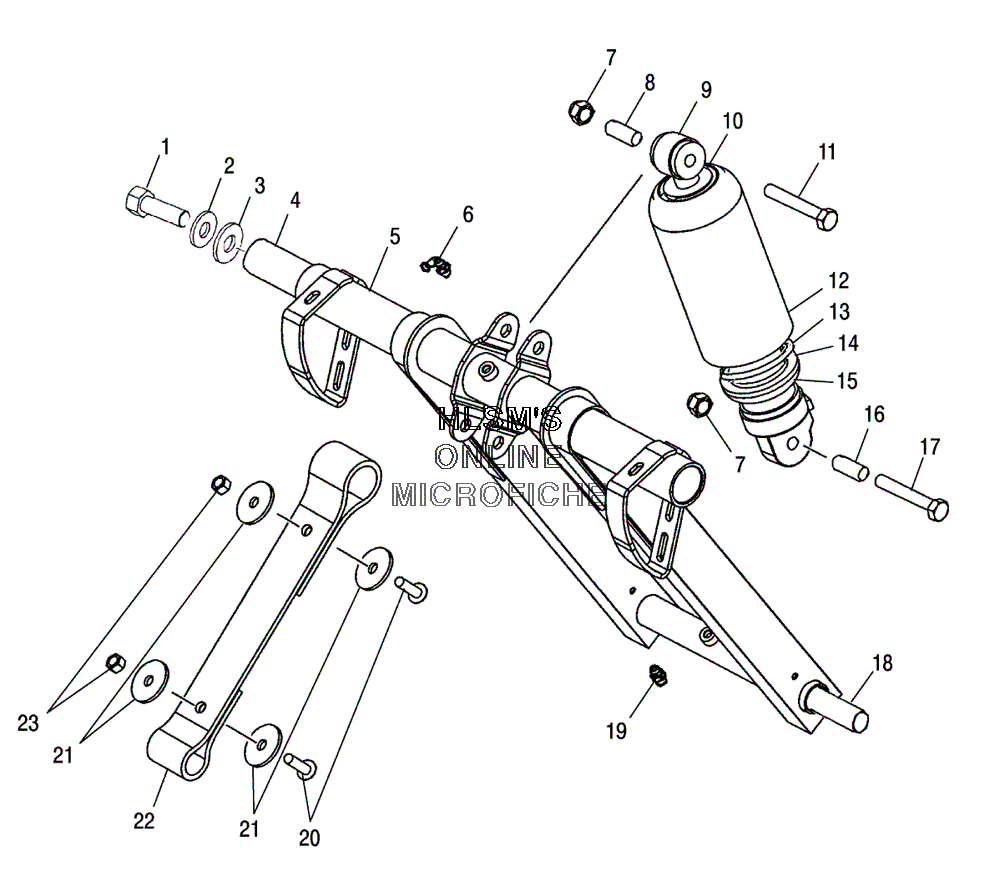

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 340 EDGE TOURING (S05NT3AS) - 2005 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT (UPPER)SHAFT (UPPER)
-
51541686-067 WELD TORQUE ARM (FRONT/BLACK)WELD TORQUE ARM (FRONT/BLACK)
-
67080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVESLEEVE
-
97041939 SHOCK TRACK (FRONT)SHOCK TRACK (FRONT)
-
105630580 RETAINER SPRING SLOTTEDRETAINER SPRING SLOTTED
-
117515415 SCREWSCREW
-
125430671 SHIELD SPRINGSHIELD SPRING
-
137041253-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
145245067 RETAINER SPRING GAB PLATEDRETAINER SPRING GAB PLATED
-
155210953 RETAINER, SPRINGRETAINER, SPRING
-
165333906 SLEEVESLEEVE
-
177515417 SCREWSCREW
-
185334026 SHAFT ANODIZESHAFT ANODIZE
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
207517313 SCREWSCREW
-
217556175 WASHER FLATWASHER FLAT
-
225411971 STRAP LIM (FRONT)STRAP LIM (FRONT)
-
237542344 NUT, NYLOKNUT, NYLOK
