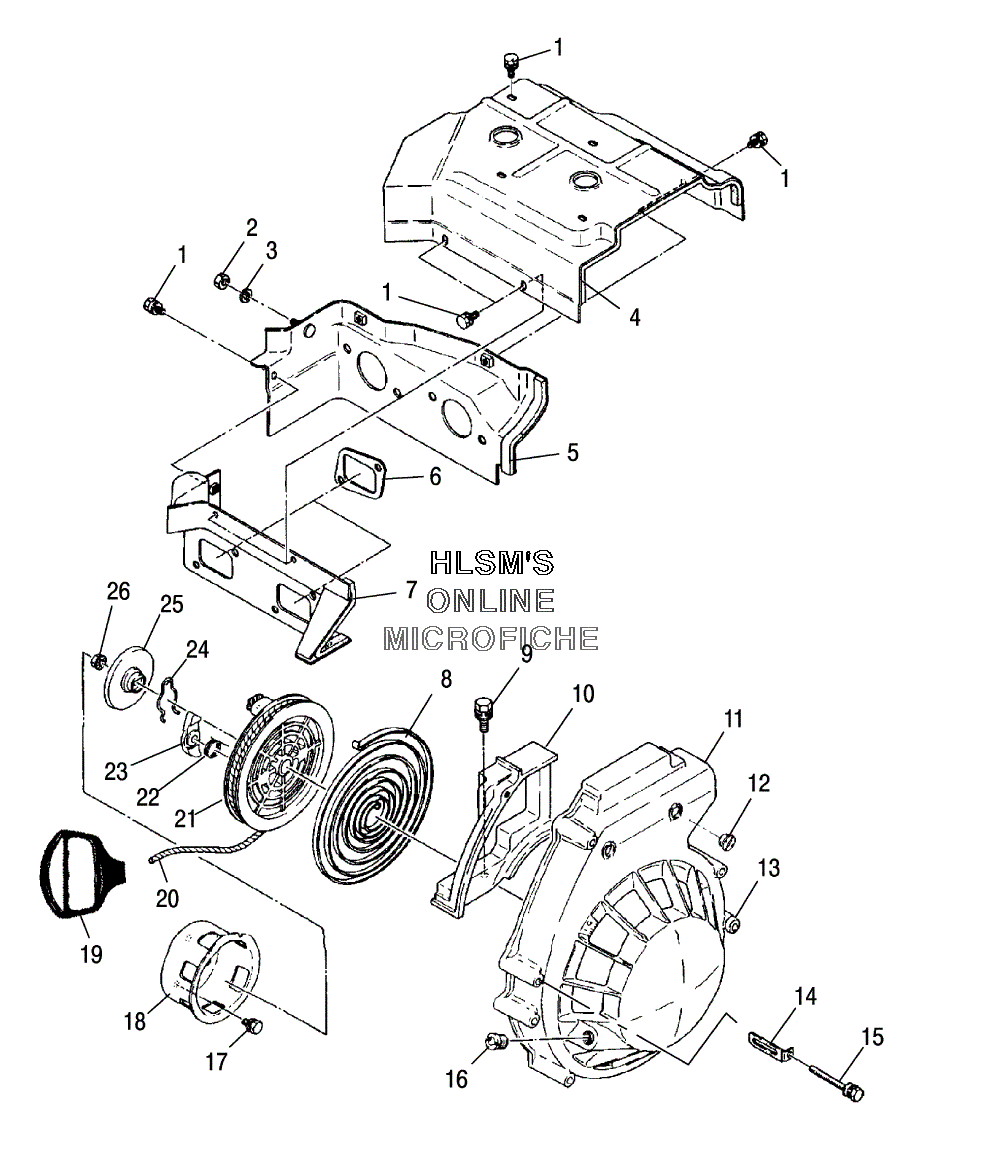

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 340 CLASSIC (S05ND3AS) - 2005 года выпуска`
-
№АртикулНазвание
-
13085359 BOLT, FLANGEBOLT, FLANGE
-
23084375 NUTNUT
-
33080077 WASHER SPRINGWASHER SPRING
-
43084420 CYLINDER BAFFLE NO. 1 ASSYCYLINDER BAFFLE NO. 1 ASSY
-
53089504 CYLINDER BAFFLE NO. 2 ASSYCYLINDER BAFFLE NO. 2 ASSY
-
63085846 GASKET INTAKEGASKET INTAKE
-
73085847 CYLINDER BAFFLE 3 ASSY (INCL. 6)CYLINDER BAFFLE 3 ASSY (INCL. 6)
-
83083376 SPRING, SPIRALSPRING, SPIRAL
-
93081663 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103083591 HOUSING, BLOWER #2HOUSING, BLOWER #2
-
113089467 RECOIL STARTER ASSY (INCL. 8, 16, 20-26)RECOIL STARTER ASSY (INCL. 8, 16, 20-26)
-
113083589 CASE, STARTER ASSYCASE, STARTER ASSY
-
123086792 PLUG, RUBBERPLUG, RUBBER
-
137080367 CLAMP, CABLECLAMP, CABLE
-
143083590 CLAMPCLAMP
-
153083729 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
163083107 GUIDE ROPEGUIDE ROPE
-
173081665 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
183083108 PULLEY STARTINGPULLEY STARTING
-
195431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
202870621 ROPE, NYLON STARTER (100FT) (BULK, CUT TO FIT)ROPE, NYLON STARTER (100FT) (BULK, CUT TO FIT)
-
213083377 REEL ASSYREEL ASSY
-
223083463 SPRING, RETURNSPRING, RETURN
-
233087207 RATCHETRATCHET
-
243083379 SPRING, FRICTIONSPRING, FRICTION
-
253083464 PLATE, FRICTIONPLATE, FRICTION
-
263083381 NUT, FLANGENUT, FLANGE
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TAILLIGHT
- • STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING LINKAGE
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WINDSHIELD/GUAGES/HOOD RETAINER
