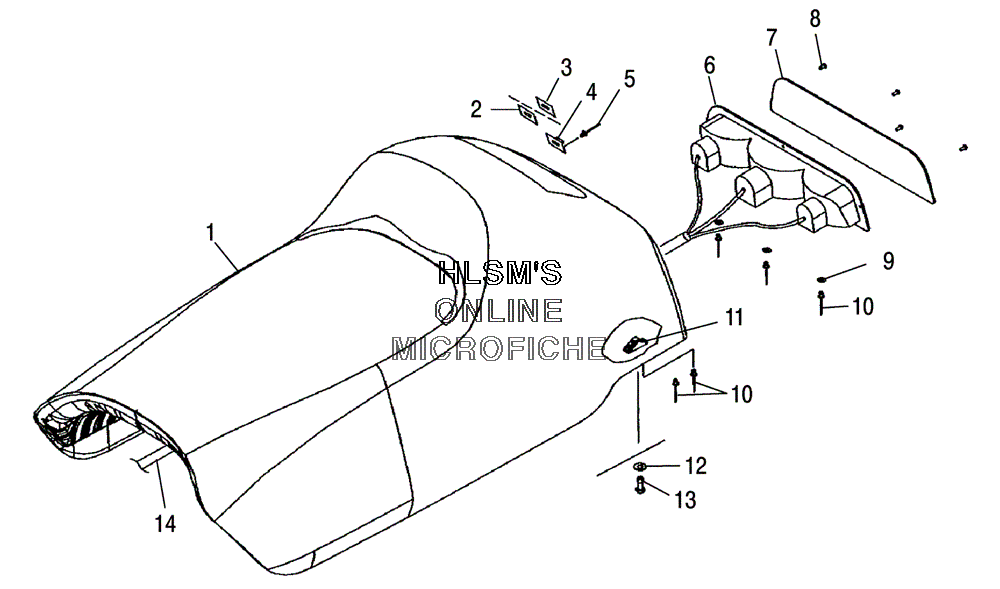

SEAT W/ TAILLIGHT для Polaris 340 CLASSIC (S05ND3AS) - 2005 года выпуска
-
№АртикулНазвание
-
12683540 SEAT, EDGE ASSY (BLACK/SONIC BLUE) (INCL. 1, 6, 14)SEAT, EDGE ASSY (BLACK/SONIC BLUE) (INCL. 1, 6, 14)
-
12683541 COVER, EDGE ASSY (BLACK/SONIC BLUE)COVER, EDGE ASSY (BLACK/SONIC BLUE)
-
27080550 GROMMET RELATCH, 1" (BOTTOM)GROMMET RELATCH, 1" (BOTTOM)
-
37080549 GROMMET RELATCH, 1" (TOP)GROMMET RELATCH, 1" (TOP)
-
47080548 TWIST LOCK RELATCH, 1" WITH HOLETWIST LOCK RELATCH, 1" WITH HOLE
-
57621337 RIVETRIVET
-
65433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
-
64030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
64030045 BULBBULB
-
75430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
87511840 SCREWSCREW
-
97555727 WASHERWASHER
-
107621319 RIVETRIVET
-
115631194 NUT SEATNUT SEAT
-
127558301 WASHER, FLATWASHER, FLAT
-
137517219 SCREWSCREW
-
142460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
