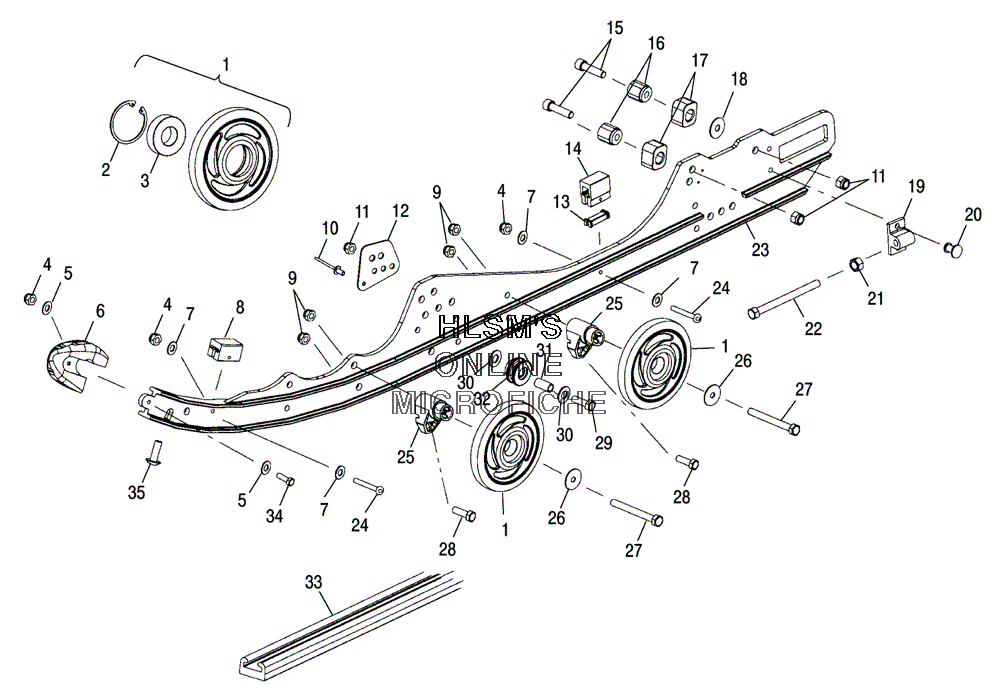

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 340 CLASSIC (S05ND3AS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1590275-244 WHEEL SCRLLD ASSY (SILVER) (INCL. 2, 3)
    WHEEL SCRLLD ASSY (SILVER) (INCL. 2, 3)
  • 2
    7718407 RING RETAINING (1 PER WHEEL)
    RING RETAINING (1 PER WHEEL)
  • 3
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 4
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 5
    7555792 WASHER
    WASHER
  • 6
    5434374 CAP RAIL TIP
    CAP RAIL TIP
  • 7
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 8
    5521499 BUMPER, JOUNCE (FRONT)
    BUMPER, JOUNCE (FRONT)
  • 9
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 10
    7661845 RIVET
    RIVET
  • 11
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 12
    5244677 BRACKET, RAIL REINFORCE
    BRACKET, RAIL REINFORCE
  • 13
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 14
    5521498 BUMPER, JOUNCE (REAR)
    BUMPER, JOUNCE (REAR)
  • 15
    7515537 BOLT
    BOLT
  • 16
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 17
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 18
    5244371 SPACER
    SPACER
  • 19
    5132444 BLOCK, IDLER BOLT ADJUST (7/16)
    BLOCK, IDLER BOLT ADJUST (7/16)
  • 20
    7621501 RIVET
    RIVET
  • 21
    7547156 NUT 7/16-14
    NUT 7/16-14
  • 22
    7517773 SCREW HEAD
    SCREW HEAD
  • 23
    1541755 RAIL, 121 ASSY (LEFT) (INCL. 6, 8, 14, 17, 19)
    RAIL, 121 ASSY (LEFT) (INCL. 6, 8, 14, 17, 19)
  • 23
    1541756 RAIL, 121 ASSY (RIGHT) (INCL. 6, 8, 14, 17, 19)
    RAIL, 121 ASSY (RIGHT) (INCL. 6, 8, 14, 17, 19)
  • 24
    7510504 SCREW
    SCREW
  • 25
    5631065 BLOCK WHEEL MOUNT, LWT
    BLOCK WHEEL MOUNT, LWT
  • 26
    7556179 WASHER SPRING
    WASHER SPRING
  • 27
    7515346 SCREW
    SCREW
  • 28
    7515317 BOLT
    BOLT
  • 29
    7515438 BOLT
    BOLT
  • 30
    7555983 WASHER FLAT
    WASHER FLAT
  • 31
    5333948 SPACER
    SPACER
  • 32
    5433959 ROLLER SPRING, SQUARE
    ROLLER SPRING, SQUARE
  • 33
    5521571 SLIDER XL SERVICE BASIC
    SLIDER XL SERVICE BASIC
  • 34
    7511975 SCREW
    SCREW
  • 35
    7515199 SCREW
    SCREW
