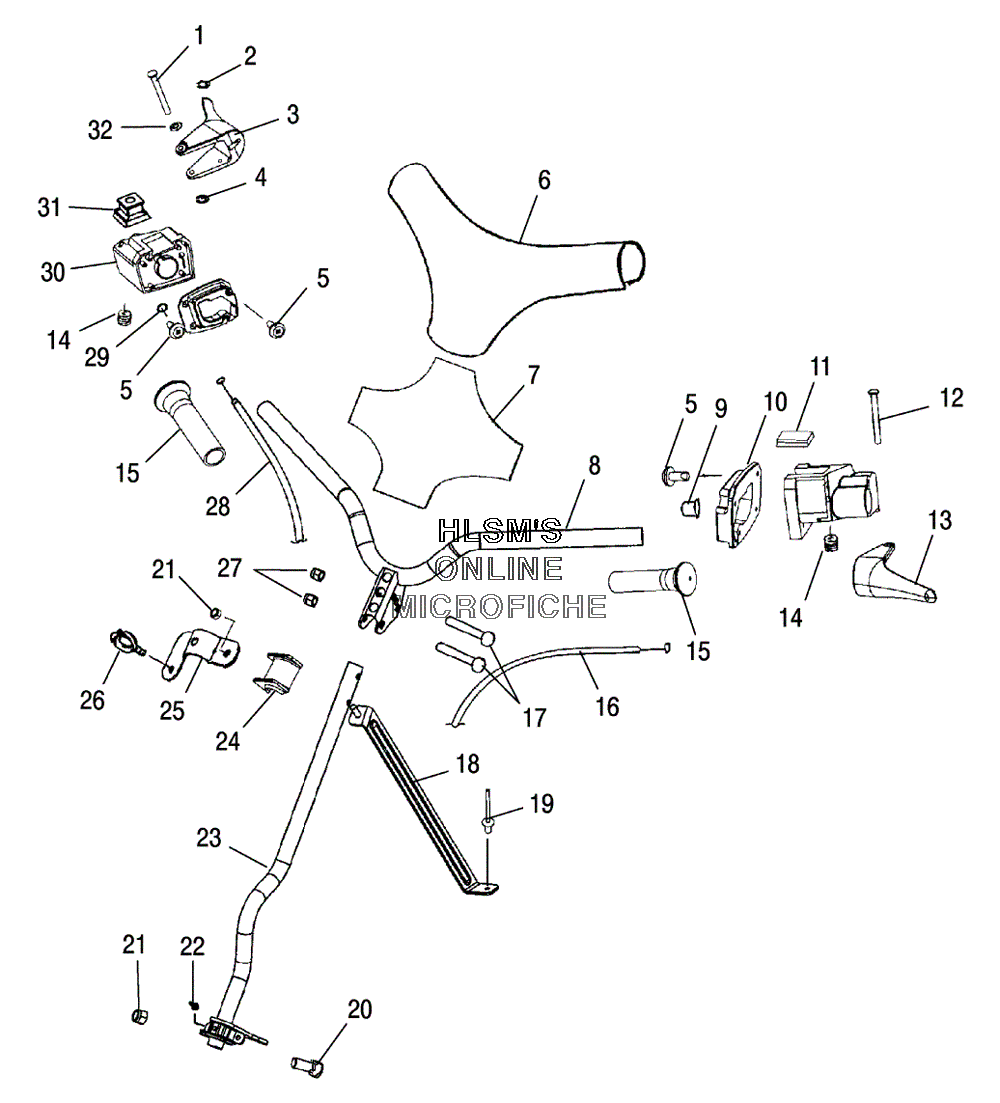

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 120 PRO X EDGE (S05WBAS) - 2005 года выпуска`
-
№АртикулНазвание
-
17661624 PIN RETAININGPIN RETAINING
-
27710503 RING, RETAININGRING, RETAINING
-
35433527 LEVER THROTTLELEVER THROTTLE
-
47710401 RING, RETAININGRING, RETAINING
-
57511848 SCREWSCREW
-
62682537 HANDLEBAR, PADHANDLEBAR, PAD
-
75811884 FOAM, HANDLEBAR PADFOAM, HANDLEBAR PAD
-
81821087-067 WELD HANDLEBAR, ADJUSTER (BLACK)WELD HANDLEBAR, ADJUSTER (BLACK)
-
95431096 PLUGPLUG
-
105430604 BLOCK ADAPTERBLOCK ADAPTER
-
115433622 INSERT BRAKE/THROTTLE BLOCKINSERT BRAKE/THROTTLE BLOCK
-
127661617 RIVETRIVET
-
135433528 LEVER BRAKELEVER BRAKE
-
147512465 SCREW, SETSCREW, SET
-
155433476 GRIP HANDLEBARGRIP HANDLEBAR
-
167081004 CABLE BRAKE, WITH ADAPTERCABLE BRAKE, WITH ADAPTER
-
177515316 BOLTBOLT
-
181013096-067 BRACE, STEERING POST (LEFT/BLACK)BRACE, STEERING POST (LEFT/BLACK)
-
181013097-067 BRACE, STEERINGPOST (RIGHT/BLACK)BRACE, STEERINGPOST (RIGHT/BLACK)
-
197621467 RIVET, BLINDRIVET, BLIND
-
207512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
217542122 NUT NYLOKNUT NYLOK
-
227080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
231821086-067 WELD STEERING POST (BLACK)WELD STEERING POST (BLACK)
-
245433416 BUSHING, STEERING (UPPER)BUSHING, STEERING (UPPER)
-
255244048 BRACKET, STEER POSTBRACKET, STEER POST
-
264020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
277542343 NUT, FLANGENUT, FLANGE
-
287080860 CABLE, THROTTLECABLE, THROTTLE
-
297555727 WASHERWASHER
-
305431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
314010316 SWTCH, AUX SHUT OFF, CLOSEDSWTCH, AUX SHUT OFF, CLOSED
-
327555730 WASHERWASHER
