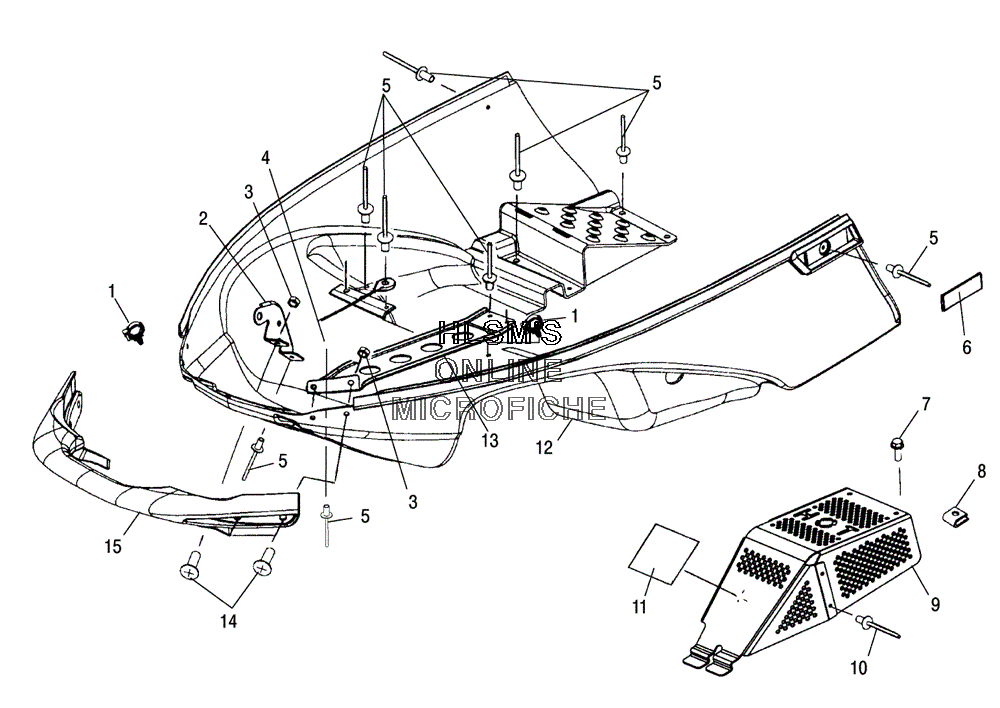

NOSEPAN ASSEMBLY для Polaris 120 PRO X EDGE (S05WBAS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7670102 CLIP
    CLIP
  • 2
    5244894 BRACKET HINGE, NOSEPAN (LEFT)
    BRACKET HINGE, NOSEPAN (LEFT)
  • 2
    5244895 BRACKET HINGE, NOSEPAN (RIGHT)
    BRACKET HINGE, NOSEPAN (RIGHT)
  • 3
    7542122 NUT NYLOK
    NUT NYLOK
  • 4
    7558212 WASHER FLAT
    WASHER FLAT
  • 5
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 6
    2670134 REFLECTOR ASSY (AMBER)
    REFLECTOR ASSY (AMBER)
  • 7
    7512283 SCREW, SEMS
    SCREW, SEMS
  • 8
    7670096 NUT
    NUT
  • 9
    1013048 CLUTCH, GUARD/CHAIN, ASSY
    CLUTCH, GUARD/CHAIN, ASSY
  • 10
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 11
    7078389 DECAL ENGINE AND CLUTCH
    DECAL ENGINE AND CLUTCH
  • 12
    5433526-070
  • 13
    5244079 BRACE BUMPER (FRONT/LEFT)
    BRACE BUMPER (FRONT/LEFT)
  • 13
    5244080 BRACE BUMPER (FRONT/RIGHT)
    BRACE BUMPER (FRONT/RIGHT)
  • 14
    7515166 SCREW
    SCREW
  • 15
    5433536-070 BUMPER (FRONT/BLACK)
    BUMPER (FRONT/BLACK)
