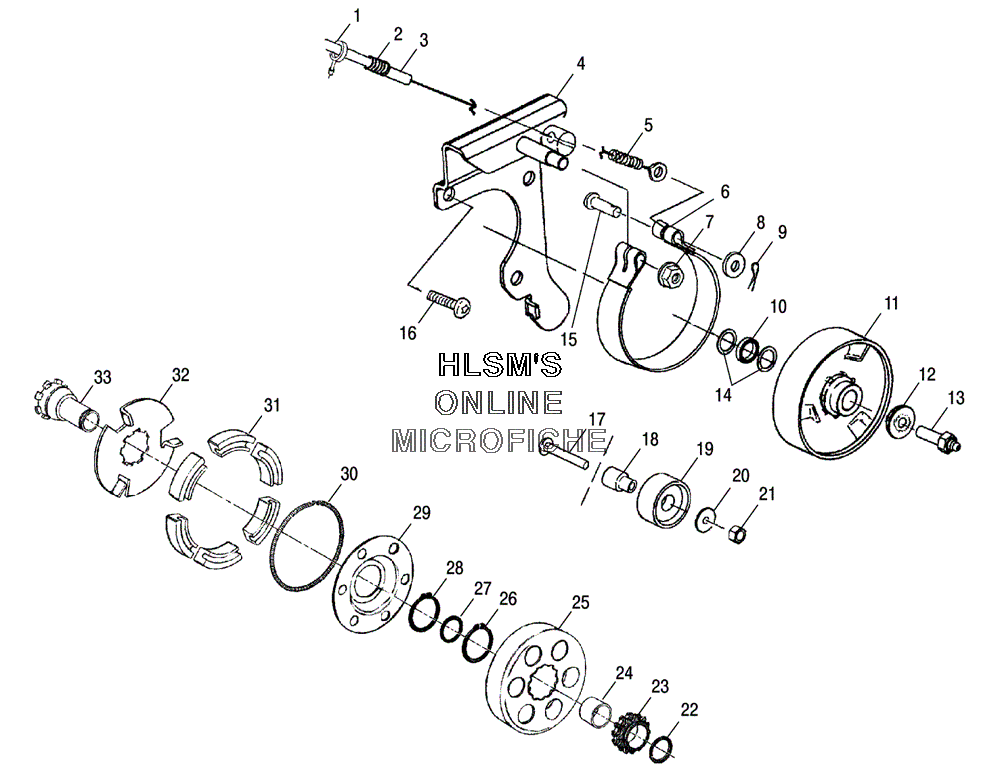

CLUTCH ASSEMBLY для Polaris 120 PRO X EDGE (S05WBAS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7670102 CLIP
    CLIP
  • 2
    4010051-13 CONDUIT CONVOLUTED (13CM)
    CONDUIT CONVOLUTED (13CM)
  • 3
    7081004 CABLE BRAKE, WITH ADAPTER
    CABLE BRAKE, WITH ADAPTER
  • 4
    1013547 WELD BRAKE MOUNT
    WELD BRAKE MOUNT
  • 5
    7041853 SPRING BRAKE RELEASE
    SPRING BRAKE RELEASE
  • 6
    5245508 BAND BRAKE
    BAND BRAKE
  • 7
    7542321 NUT, FLANGE
    NUT, FLANGE
  • 8
    7555923 WASHER
    WASHER
  • 9
    7661407 COTTER PIN
    COTTER PIN
  • 10
    5132933 SPACER CLUTCH .33 (OUTER)
    SPACER CLUTCH .33 (OUTER)
  • 11
    1321966 CLUTCH DRIVE, #40 (INCL. 22-33)
    CLUTCH DRIVE, #40 (INCL. 22-33)
  • 12
    5132462 SPACER, CLUTCH, END
    SPACER, CLUTCH, END
  • 13
    7517780 BOLT, ZERK
    BOLT, ZERK
  • 14
    7556138 WASHER FIBER
    WASHER FIBER
  • 15
    7661125 PIN CLEVIS 1/4
    PIN CLEVIS 1/4
  • 16
    7517810 SCREW PIN HEAD
    SCREW PIN HEAD
  • 17
    7515394 SCREW
    SCREW
  • 18
    5132601 BUSHING, TENSIONER
    BUSHING, TENSIONER
  • 19
    5433672 PULLEY, IDLER, TENSIONER
    PULLEY, IDLER, TENSIONER
  • 20
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 21
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 30
    7042118 SPRING GARTER (RED)
    SPRING GARTER (RED)
