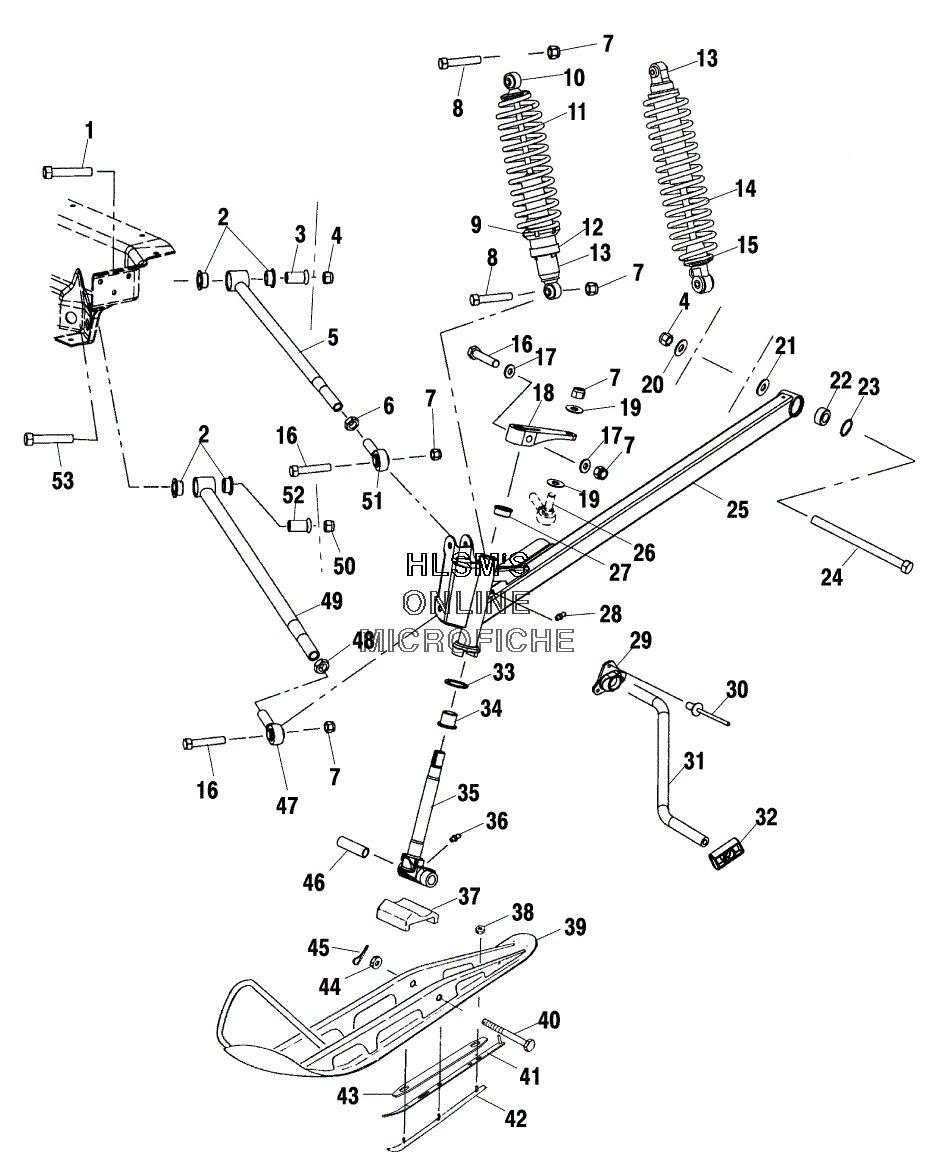

SUSPENSION - FRONT W/ SKI для Polaris SUPERSPORT M-10 (S04NP5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING SHOULDERBUSHING SHOULDER
-
47547066 NUT, NYLOK YNUT, NYLOK Y
-
51820679-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95431734 RING, SPRING PRELOAD ADJUSTERRING, SPRING PRELOAD ADJUSTER
-
105630580 RETAINER SPRING SLOTTEDRETAINER SPRING SLOTTED
-
117041551-067 SPRING COMPRESSION IFS (BLACK)SPRING COMPRESSION IFS (BLACK)
-
121500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
137041932 SHOCK IFS, NITREXSHOCK IFS, NITREX
-
137042211 SHOCK IFS, IFP ROD C/A (SEE SUSPENSION - IFS SHOCK (EDGE) FOR DETAILS)SHOCK IFS, IFP ROD C/A (SEE SUSPENSION - IFS SHOCK (EDGE) FOR DETAILS)
-
147042195-067 SPRINGSPRING
-
155020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
167517583 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
177555832 WASHERWASHER
-
185132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
197555797 WASHER, FLATWASHER, FLAT
-
207555820 WASHER, FLATWASHER, FLAT
-
215132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
227061042 BEARING SPHERICAL 7/16 PLASTICBEARING SPHERICAL 7/16 PLASTIC
-
237710437 RING, RETAININGRING, RETAINING
-
247512099 SCREWSCREW
-
251821165-385 TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 22, 23)TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 22, 23)
-
251821166-385 TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 22, 23)TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 22, 23)
-
273573909 BUSHING FLANGEBUSHING FLANGE
-
287080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
295433234 BUSHING TORSION BARBUSHING TORSION BAR
-
307621452 RIVETRIVET
-
315244415-067 BAR, TORSION (BLACK)BAR, TORSION (BLACK)
-
325434369 SLIDE TORSION BAR 1/2 ANTIRATTLESLIDE TORSION BAR 1/2 ANTIRATTLE
-
337556509 BUSHINGBUSHING
-
343574208 BUSHING, FLANGEDBUSHING, FLANGED
-
356230225-067 SHAFT SPINDLE WITH STEERING STOP (BLACK)SHAFT SPINDLE WITH STEERING STOP (BLACK)
-
367080306 FITTING, LUBE WITH BALL CHECKFITTING, LUBE WITH BALL CHECK
-
375411083 STOP, RUBBERSTOP, RUBBER
-
387542324 NUT, NYLOKNUT, NYLOK
-
391820430-067 SKI WELDSKI WELD
-
407515462 SCREWSCREW
-
411011829-067 PLATE, SKAGPLATE, SKAG
-
412870976 CARBIDE, EZ STEER 3" 120 W PL KIT (INCL. SKAG AND PLATE)CARBIDE, EZ STEER 3" 120 W PL KIT (INCL. SKAG AND PLATE)
-
421820318-067 SKAG (BLACK)SKAG (BLACK)
-
435245145-067 SHIM SKAG PLATE (BLACK)SHIM SKAG PLATE (BLACK)
-
447542438 NUT, CASTLENUT, CASTLE
-
457661209 PIN COTTERPIN COTTER
-
465010158 BUSHING, PIVOTBUSHING, PIVOT
-
477061060 ROD END, RADIUS 1/2ROD END, RADIUS 1/2
-
487542711 NUT JAMNUT JAM
-
491820677-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
507547065 NUT, NYLOK YNUT, NYLOK Y
-
517061061 ROD END, RADIUS 7/16ROD END, RADIUS 7/16
-
525132780 BUSHING SHOULDERBUSHING SHOULDER
-
537512684 BOLTBOLT
