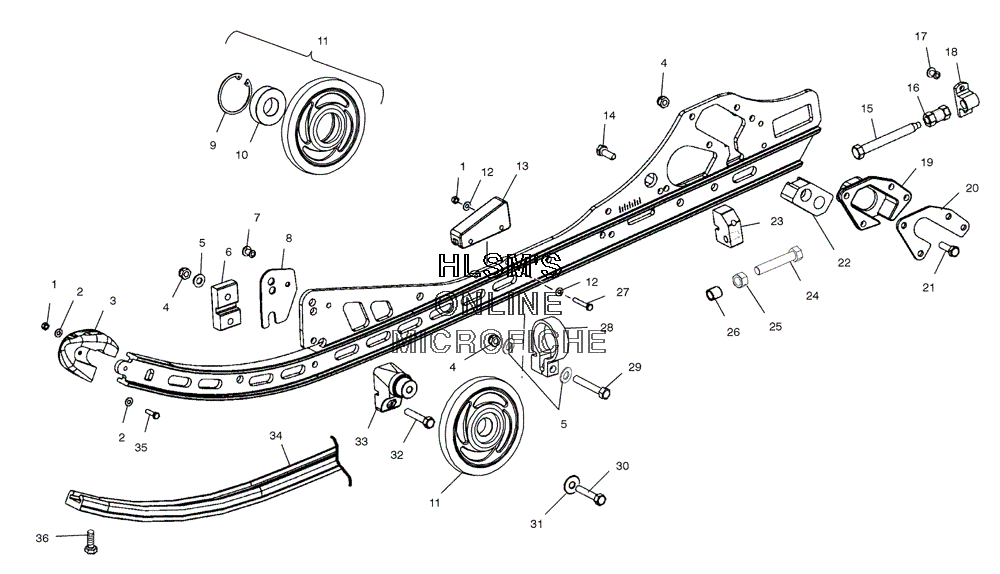

RAIL ASSEMBLY W/ IDLER WHEELS (M-10) для Polaris SUPERSPORT M-10 (S04NP5BS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 2
    7555792 WASHER
    WASHER
  • 3
    5434374 CAP RAIL TIP
    CAP RAIL TIP
  • 4
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 5
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 6
    5132577 BLOCK RAIL SUPPORT
    BLOCK RAIL SUPPORT
  • 7
    7661845 RIVET
    RIVET
  • 8
    5244651 PLATE RAIL SUPPORT
    PLATE RAIL SUPPORT
  • 9
    7718407 RING RETAINING (1 PER WHEEL)
    RING RETAINING (1 PER WHEEL)
  • 10
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 11
    1590275-244 WHEEL SCRLLD, 5.35 ASSY (SILVER METALLIC) (INCL. 9, 10)
    WHEEL SCRLLD, 5.35 ASSY (SILVER METALLIC) (INCL. 9, 10)
  • 12
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 13
    5411947 BUMPER JOUNCE RAIL
    BUMPER JOUNCE RAIL
  • 14
    7512392 BOLT
    BOLT
  • 15
    7517773 SCREW HEAD
    SCREW HEAD
  • 16
    5132712 NUT TENSION, ADJUSTER
    NUT TENSION, ADJUSTER
  • 17
    7621501 RIVET
    RIVET
  • 18
    5132611 BLOCK IDLER BOLT ADJUSTER THIN (7/16)
    BLOCK IDLER BOLT ADJUSTER THIN (7/16)
  • 19
    5631188 GUIDE SLIDER, CAST (LEFT)
    GUIDE SLIDER, CAST (LEFT)
  • 19
    5631189 GUIDE SLIDER, CAST (RIGHT)
    GUIDE SLIDER, CAST (RIGHT)
  • 20
    5245045 PLATE COUPLER BLOCK
    PLATE COUPLER BLOCK
  • 21
    7512310 SCREW
    SCREW
  • 22
    5434239 BLOCK SLIDER, LONG M-10 (LEFT)
    BLOCK SLIDER, LONG M-10 (LEFT)
  • 22
    5434240 BLOCK SLIDER, LONG M-10 (RIGHT)
    BLOCK SLIDER, LONG M-10 (RIGHT)
  • 23
    5132584 BLOCK SHOCK PIVOT THREADED
    BLOCK SHOCK PIVOT THREADED
  • 24
    7515511 SCREW
    SCREW
  • 25
    7542404 NUT
    NUT
  • 26
    5133009 SPACER
    SPACER
  • 27
    7511967 BOLT
    BOLT
  • 28
    5132832 CLAMP RESERVIOR
    CLAMP RESERVIOR
  • 29
    7515319 BOLT
    BOLT
  • 30
    7515382 BOLT
    BOLT
  • 31
    7556179 WASHER SPRING, CONNECTING
    WASHER SPRING, CONNECTING
  • 32
    7512329 BOLT
    BOLT
  • 33
    5631065 BLOCK WHEEL MOUNT LWT
    BLOCK WHEEL MOUNT LWT
  • 34
    5521571 SLIDER, XL SERVICE BASIC
    SLIDER, XL SERVICE BASIC
  • 35
    7511975 SCREW
    SCREW
  • 36
    7515199 SCREW
    SCREW
  • 36
    1541782-309 RAIL, M-10 NATURAL ASSY (LEFT) (INCL. 1-3, 13, 17, 18, 27, 35)
    RAIL, M-10 NATURAL ASSY (LEFT) (INCL. 1-3, 13, 17, 18, 27, 35)
  • 36
    1541783-309 RAIL, M-10 NATURAL ASSY (RIGHT) (INCL. 1-3, 13, 17, 18, 27, 35)
    RAIL, M-10 NATURAL ASSY (RIGHT) (INCL. 1-3, 13, 17, 18, 27, 35)
