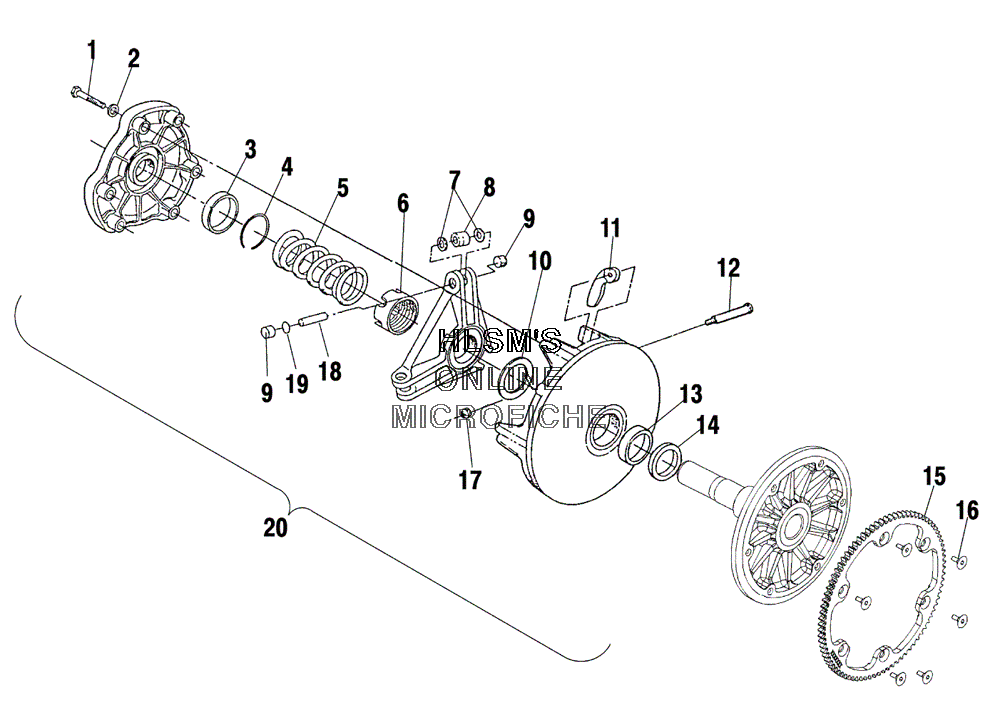

CLUTCH - DRIVE (ELECTRIC START MODELS) для Polaris SUPERSPORT M-10 (S04NP5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER (.050)SPACER (.050)
-
105210753 SPACER (.032)SPACER (.032)
-
105242981 SPACER (.025)SPACER (.025)
-
105210752 SPACER (.020)SPACER (.020)
-
105132542 SPACER (.130)SPACER (.130)
-
111321586 WT/BUSH.ASSYWT/BUSH.ASSY
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155133649 RING GEAR LIGHTWEIGHT KITRING GEAR LIGHTWEIGHT KIT
-
167515351 BOLTBOLT
-
177541906 NUT FLEXLOCNUT FLEXLOC
-
185133079 PIN ROLLER, 1", SBNPIN ROLLER, 1", SBN
-
192200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
201322316 DRIVE CLUTCH, BASIC ES WB ASSY (INCL. ALL LESS 5, 11)DRIVE CLUTCH, BASIC ES WB ASSY (INCL. ALL LESS 5, 11)
