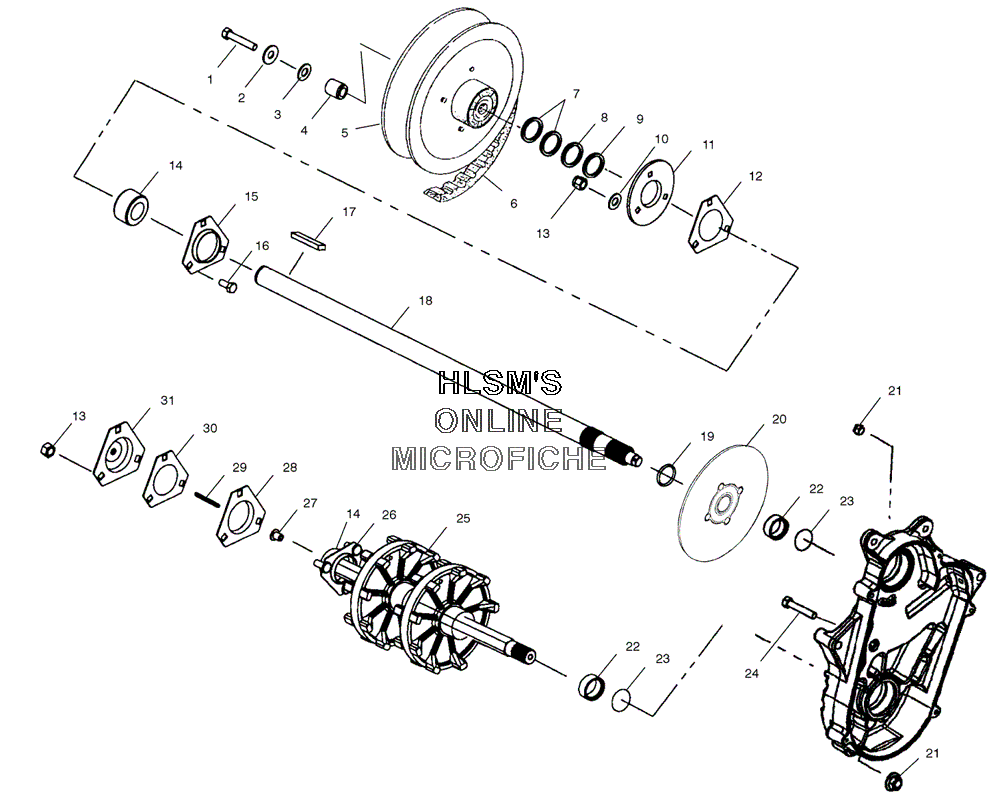

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris SUPERSPORT M-10 (S04NP5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACERSPACER
-
63211078 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107558402 WASHER, FLATWASHER, FLAT
-
115241359 FLANGE RD, RELUBE WITH ZERKFLANGE RD, RELUBE WITH ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
137542324 NUT, NYLOKNUT, NYLOK
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721116 KEYKEY
-
181332220 JACKSHAFT WITH BEARING ASSYJACKSHAFT WITH BEARING ASSY
-
197710422 RING, RETAININGRING, RETAINING
-
202202493 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
251590340 DRIVE SHAFT ASSY (INCL. 26, 27)DRIVE SHAFT ASSY (INCL. 26, 27)
-
261012945 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
273280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
285243529 FLANGETTE OFFSET WITH HOLEFLANGETTE OFFSET WITH HOLE
-
293280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
