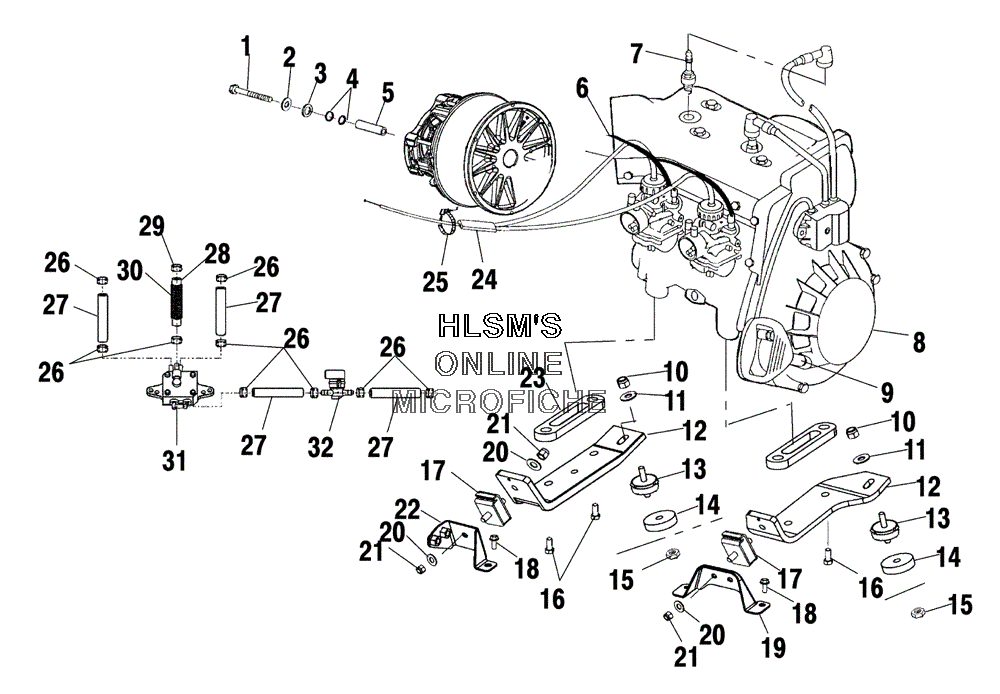

ENGINE MOUNTING W/ SHORT BLOCK для Polaris SUPERSPORT EDGE (S04NP5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517776 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACERSPACER
-
67080290 CABLE, CHOKECABLE, CHOKE
-
73070163 SPARK PLUGSPARK PLUG
-
83087197 ENGINE (IF BUILT BEFORE 4/01/03) NOTE:ENGINE (IF BUILT BEFORE 4/01/03) NOTE:
-
83088822 ENGINE (IF BUILT AFTER 4/01/03) NOTE:ENGINE (IF BUILT AFTER 4/01/03) NOTE:
-
95431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
107542451 NUT, NYLOKNUT, NYLOK
-
117555893 WASHER, FLATWASHER, FLAT
-
125245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
125246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
133021220 MOUNT ENGINEMOUNT ENGINE
-
145245117 SPACER ENGINE MOUNTSPACER ENGINE MOUNT
-
157547180 NUT FLANGED, NYLON ZNUT FLANGED, NYLON Z
-
167517399 SCREWSCREW
-
173021206 MOUNT ENGINE, RECTMOUNT ENGINE, RECT
-
187517854 SCREW SPEC YSCREW SPEC Y
-
195245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
207555806 WASHER, FLATWASHER, FLAT
-
217547008 NUT, FLEX LOCKNUT, FLEX LOCK
-
221013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
235245020 SPACER ENGINESPACER ENGINE
-
247080888 CABLE THROTTLE (IF BUILT BEFORE 4/01/03)CABLE THROTTLE (IF BUILT BEFORE 4/01/03)
-
247081172 CABLE THROTTLE (IF BUILT AFTER 4/01/03)CABLE THROTTLE (IF BUILT AFTER 4/01/03)
-
257080138 CABLE TIECABLE TIE
-
267080307 CLAMP, HOSECLAMP, HOSE
-
278350018-600 TUBING ETHER ERETHNE (160 CM)TUBING ETHER ERETHNE (160 CM)
-
288450040-600 LINE FUEL (1/4 ID/600 CM)LINE FUEL (1/4 ID/600 CM)
-
297080003 CLAMP, HOSECLAMP, HOSE
-
308360052-305 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
327052248 VALVE FUEL, PLASTIC, INLINE (1/4")VALVE FUEL, PLASTIC, INLINE (1/4")
