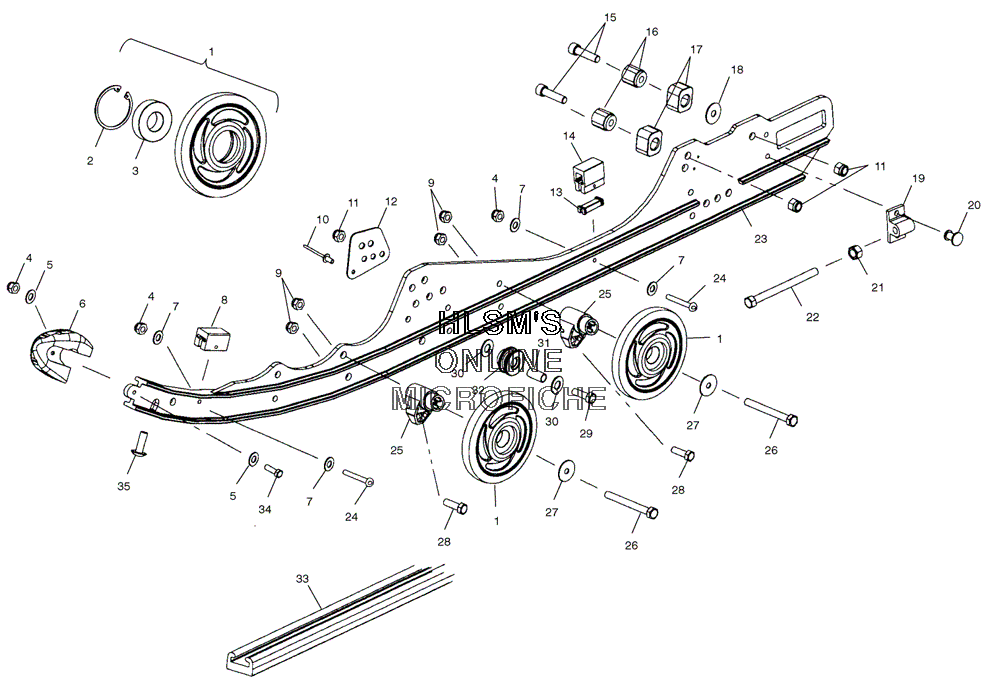

RAIL ASSEMBLY W/ IDLER WHEELS (EDGE) для Polaris SUPERSPORT EDGE (S04NP5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
11590275-244 WHEEL SCRLLD, 5.35 ASSY (SILVER METALLIC) (INCL. 2, 3)WHEEL SCRLLD, 5.35 ASSY (SILVER METALLIC) (INCL. 2, 3)
-
27718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
57555792 WASHERWASHER
-
65434374 CAP RAIL TIPCAP RAIL TIP
-
77555783 WASHER, FLATWASHER, FLAT
-
85521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
97542324 NUT, NYLOKNUT, NYLOK
-
107661845 RIVETRIVET
-
117542439 NUT, NYLOKNUT, NYLOK
-
125244677 BRACKET, RAIL REINFORCEDBRACKET, RAIL REINFORCED
-
135432946 LINER, BUMPERLINER, BUMPER
-
145521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
157515537 BOLTBOLT
-
165131113 MOUNT, BUMPERMOUNT, BUMPER
-
175410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
185244371 SPACERSPACER
-
195132444 BLOCK, IDLER BOLT ADJUSTER 7/16BLOCK, IDLER BOLT ADJUSTER 7/16
-
207621501 RIVETRIVET
-
217547156 NUTNUT
-
227517773 SCREW HEADSCREW HEAD
-
231541755 RAIL, 121 ASSY (LEFT) (INCL. 6, 8, 14, 17, 19)RAIL, 121 ASSY (LEFT) (INCL. 6, 8, 14, 17, 19)
-
231541756 RAIL, 121 ASSY (RIGHT) (INCL. 6, 8, 14, 17, 19)RAIL, 121 ASSY (RIGHT) (INCL. 6, 8, 14, 17, 19)
-
247510504 SCREWSCREW
-
255631065 BLOCK WHEEL MOUNT, LWTBLOCK WHEEL MOUNT, LWT
-
267515346 SCREWSCREW
-
277556179 WASHER SPRING, CONWASHER SPRING, CON
-
287515317 BOLTBOLT
-
297515438 BOLTBOLT
-
307555983 WASHER FLATWASHER FLAT
-
315333948 SPACERSPACER
-
325433959 ROLLER SPRING SQUAREROLLER SPRING SQUARE
-
335521571 SLIDER, XL SERVICE BASICSLIDER, XL SERVICE BASIC
-
347511975 SCREWSCREW
-
357515199 SCREWSCREW
