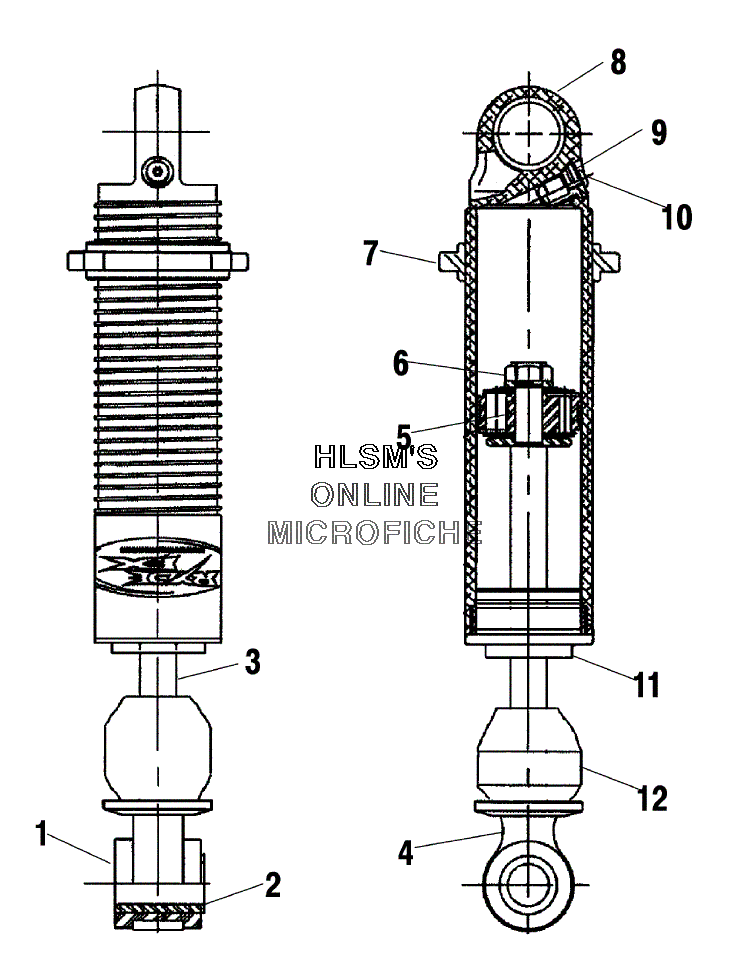

SUSPENSION - FOX SHOCK - REAR TRACK для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска`
-
№АртикулНазвание
-
11700075 BUSHINGBUSHING
-
21700069 SLEEVE (.57"IDX.80"ODX1.20)SLEEVE (.57"IDX.80"ODX1.20)
-
31700215 SHAFTSHAFT
-
41700011 MOUNT (UPPER)MOUNT (UPPER)
-
51700100 BANDED PISTON ASSY ORIFCE (.060")BANDED PISTON ASSY ORIFCE (.060")
-
51700031 PISTON WEAR BANDPISTON WEAR BAND
-
51700077 WASHER (TOP) (OUTER)WASHER (TOP) (OUTER)
-
51700078 BACK-UP WASHERBACK-UP WASHER
-
61700216 NUTNUT
-
71700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
83514450 BEARING PLAINBEARING PLAIN
-
91700056 VALVE SCREWVALVE SCREW
-
101700184 PRESS VALVE ASSYPRESS VALVE ASSY
-
101700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
111700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
121700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
127042141 SHOCK TRACK (REAR)SHOCK TRACK (REAR)
