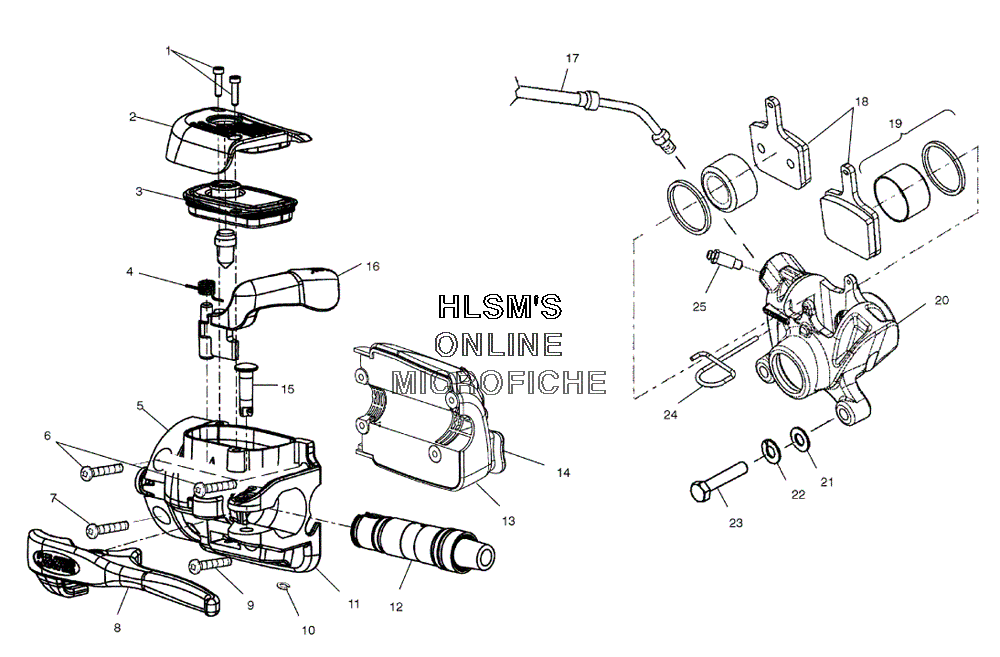

BRAKE ASSEMBLY для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSEMBLY KIT (INCL. 1, 3)
    COVER ASSEMBLY KIT (INCL. 1, 3)
  • 4
    2201250 PARK LEVER SPRING KIT
    PARK LEVER SPRING KIT
  • 5
    2010219 MASTER CYLINDER W/PIPE THROTTLE KIT ASSY
    MASTER CYLINDER W/PIPE THROTTLE KIT ASSY
  • 6
    7517441 SCREW (.75)
    SCREW (.75)
  • 7
    7512078 SCREW (1.12)
    SCREW (1.12)
  • 8
    2201943 LEVER, 3 NOTCH/PIN/RING KIT
    LEVER, 3 NOTCH/PIN/RING KIT
  • 9
    7517566 SCREW (1.50)
    SCREW (1.50)
  • 10
    2201945 SNAP RING KIT
    SNAP RING KIT
  • 11
    2202146 MASTER CYLINDER W/PIPE THROTTLE ASSY KIT
    MASTER CYLINDER W/PIPE THROTTLE ASSY KIT
  • 11
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 12
    2201944 CARTRIDGE SUB ASSY KIT (5/8")
    CARTRIDGE SUB ASSY KIT (5/8")
  • 13
    2010167 CONTROL ASSY (LEFT/BASIC)
    CONTROL ASSY (LEFT/BASIC)
  • 14
    5433291 BUTTON SWITCH HI/LO, CONTROL (LEFT)
    BUTTON SWITCH HI/LO, CONTROL (LEFT)
  • 15
    2201946 PIVOT PIN, ALUM W/SNAP RING KIT
    PIVOT PIN, ALUM W/SNAP RING KIT
  • 16
    2201251 PARK LEVER AND SPRING KIT (INCL. 4)
    PARK LEVER AND SPRING KIT (INCL. 4)
  • 17
    1910607 LINE BRAKE BRAIDED
    LINE BRAKE BRAIDED
  • 18
    2202202 BRAKE PAD, TYPE 81 KIT
    BRAKE PAD, TYPE 81 KIT
  • 19
    2202207 PISTON/SEAL KIT
    PISTON/SEAL KIT
  • 19
    2202204 SEAL KIT
    SEAL KIT
  • 20
    2202198 BRAKE CALIPER, AIR KIT ASSY (STD) (INCL. 18, 19)
    BRAKE CALIPER, AIR KIT ASSY (STD) (INCL. 18, 19)
  • 21
    7556160 WASHER
    WASHER
  • 22
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 23
    7515534 SCREW
    SCREW
  • 24
    2202206 PIN RETAINING KIT
    PIN RETAINING KIT
  • 25
    2202205 BLEEDER FITTING KIT
    BLEEDER FITTING KIT
