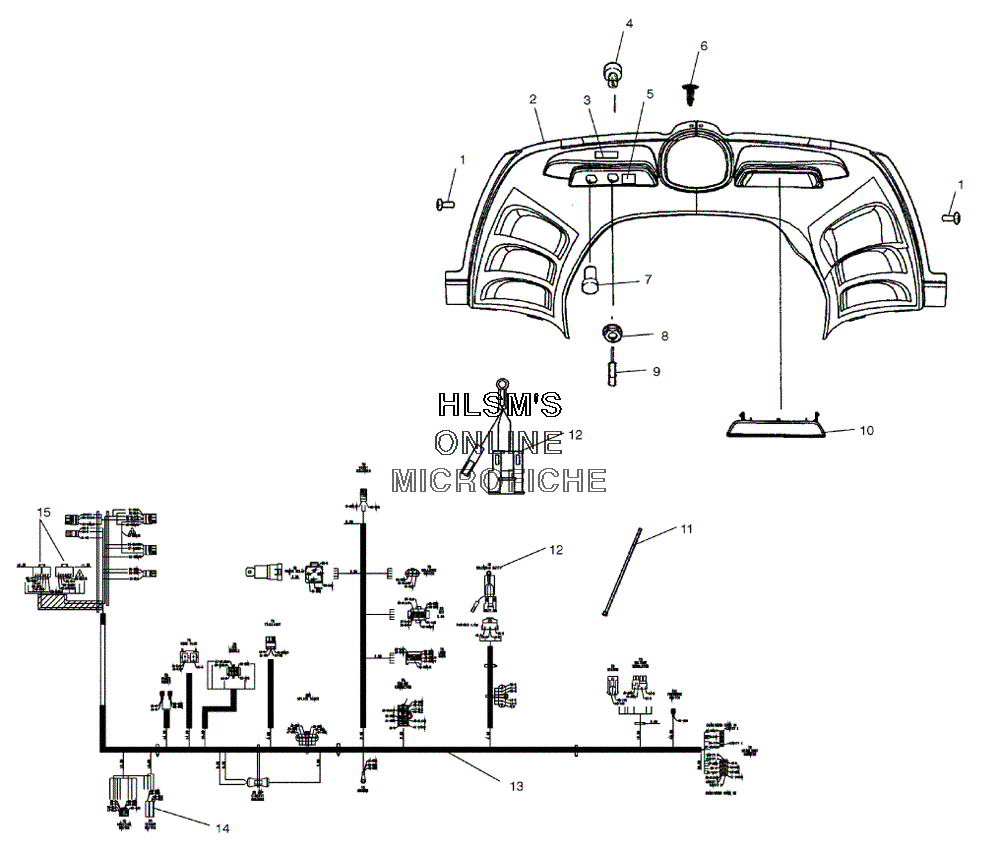

CONSOLE для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска
‹-+›
-
№АртикулНазвание
-
17515199 SCREWSCREW
-
22632649 CONSOLE W/FOIL ASSYCONSOLE W/FOIL ASSY
-
25812401 FOIL CONSOLE SIDE (1.5 X 11.25)FOIL CONSOLE SIDE (1.5 X 11.25)
-
25812402 FOIL CONSOLE LOUVERFOIL CONSOLE LOUVER
-
37075439 DECALDECAL
-
42200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
57170039 DECAL IGNITIONDECAL IGNITION
-
67670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
74010638 RECEPTACLE POD MOUNT 12 VOLTRECEPTACLE POD MOUNT 12 VOLT
-
87547035 NUT, IGNITIONNUT, IGNITION
-
95410611 SEE NOTE:SEE NOTE:
-
105434438 PLUG RECOILPLUG RECOIL
-
117080138 CABLE TIECABLE TIE
-
122461076 HARNESS FUSIBLE LINKHARNESS FUSIBLE LINK
-
124010725 RELAY SPDT, SEALEDRELAY SPDT, SEALED
-
132461170 HARNESS MAIN, W/ACEHARNESS MAIN, W/ACE
-
144020063 HOUSING, PACKHOUSING, PACK
-
154010193 HOUSING CONNECTOR PACKARD #12186213HOUSING CONNECTOR PACKARD #12186213
