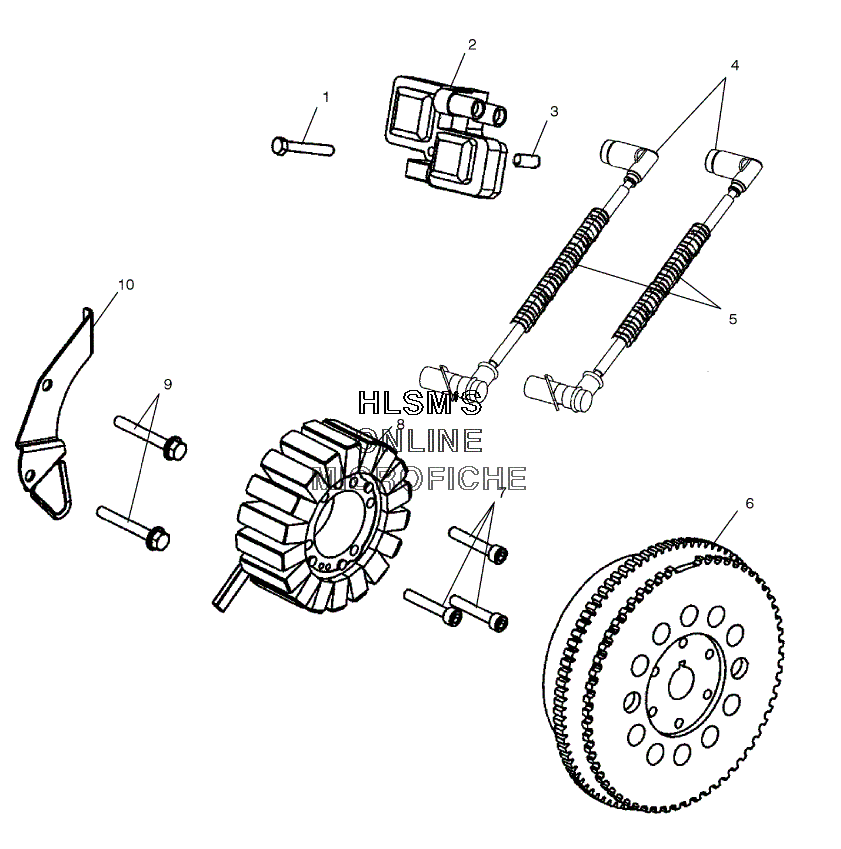

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517263 SCREW, HEXAGON/SEMSSCREW, HEXAGON/SEMS
-
24010425 COIL EFICOIL EFI
-
35133658 SPACER COILSPACER COIL
-
44010784 WIRE SPARK PLUGWIRE SPARK PLUG
-
54010051-15 CONDUIT, CONVOLUTED (30 CM)CONDUIT, CONVOLUTED (30 CM)
-
64010632 FLYWHEEL W/160MM ENCODERFLYWHEEL W/160MM ENCODER
-
77517848 SCREW, SOC/CP-Y/DSCREW, SOC/CP-Y/D
-
84010426 STATORSTATOR
-
97517950 SCREW, HEXAGON FLANGE Y/DSCREW, HEXAGON FLANGE Y/D
-
105245364 STATOR BRACKET, WIRE HOLD DOWNSTATOR BRACKET, WIRE HOLD DOWN
