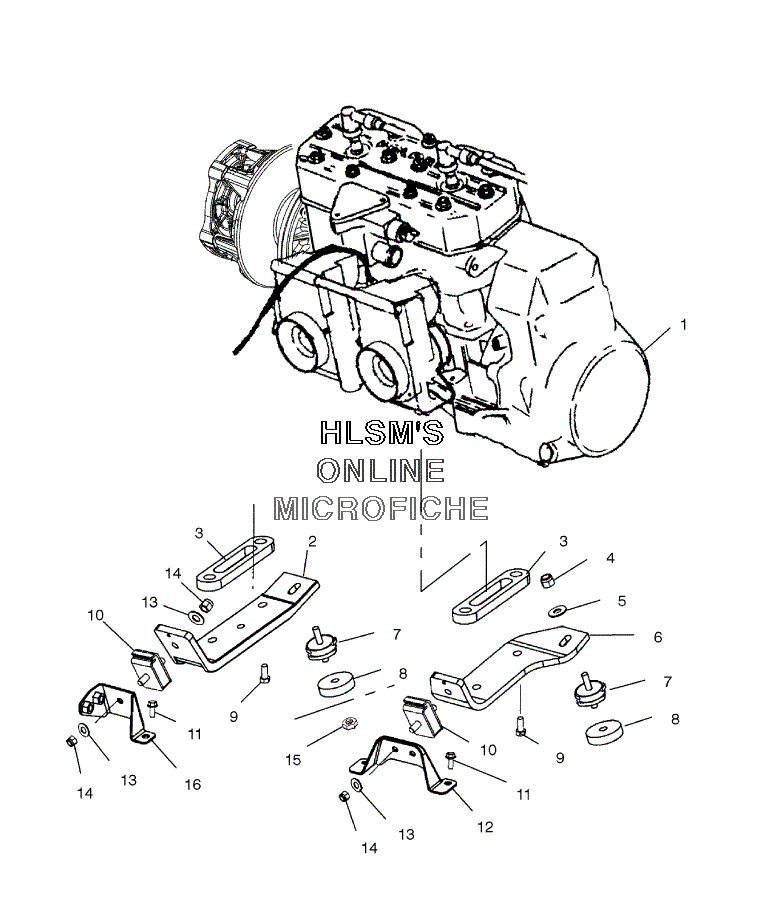

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска`
-
№АртикулНазвание
-
13086877 ENGINE (SEE NOTE:)ENGINE (SEE NOTE:)
-
25245473 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
35245021 SPACER ENGINESPACER ENGINE
-
47542451 NUT, NYLOKNUT, NYLOK
-
57555893 WASHER, FLATWASHER, FLAT
-
65246380 STRAP ENGINE (RIGHT)STRAP ENGINE (RIGHT)
-
73021220 MOUNT ENGINEMOUNT ENGINE
-
85245117 SPACER ENGINE MOUNTSPACER ENGINE MOUNT
-
97517399 SCREWSCREW
-
103021206 MOUNT ENGINE RECTMOUNT ENGINE RECT
-
117517854 SCREWSCREW
-
125245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
137555806 WASHER, FLATWASHER, FLAT
-
147547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
157547180 NUT FLANGED NYLON ZNUT FLANGED NYLON Z
-
161013397 WELD, ENGINE MOUNT BRACKET (LEFT)WELD, ENGINE MOUNT BRACKET (LEFT)
