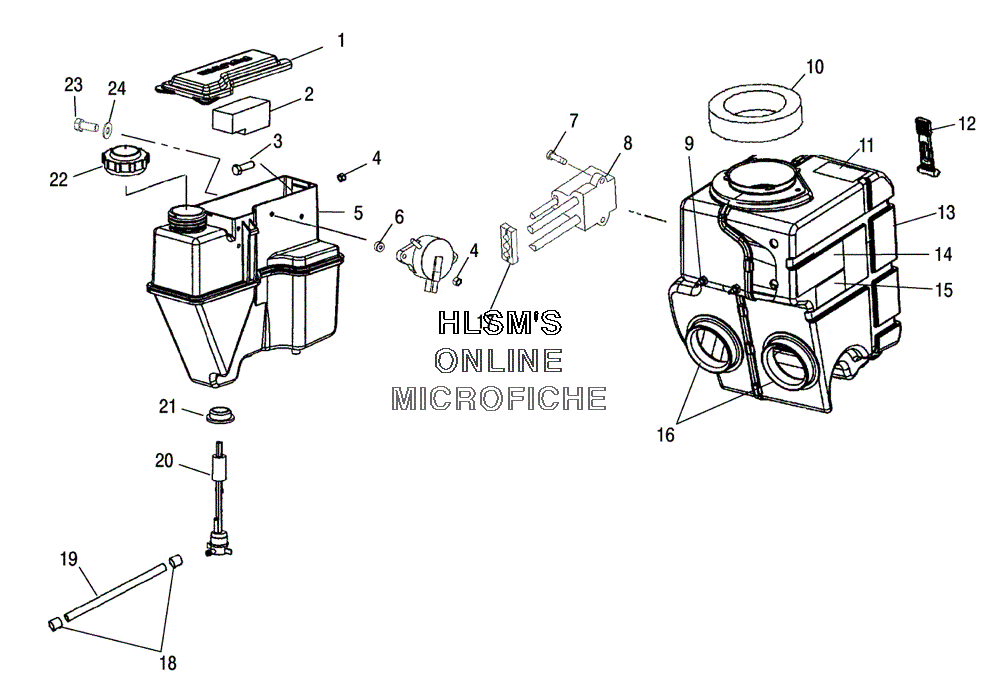

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска`
-
№АртикулНазвание
-
15434089 COVER TOOL BOXCOVER TOOL BOX
-
25812209 FOAMFOAM
-
37512297 SCREWSCREW
-
47542122 NUT NYLOKNUT NYLOK
-
51253461 OIL TANK WITH SENDING UNIT ASSY (INCL. 1, 20)OIL TANK WITH SENDING UNIT ASSY (INCL. 1, 20)
-
51261208 OIL TANK WITH SENDING UNIT ASSYOIL TANK WITH SENDING UNIT ASSY
-
67555932 WASHER, NYLONWASHER, NYLON
-
77512095 SCREWSCREW
-
97052127 FITTING, HOSEFITTING, HOSE
-
105811983 FOAM, CHIMNEYFOAM, CHIMNEY
-
117075351 DECAL, CAUTIONDECAL, CAUTION
-
125433150 STRAPSTRAP
-
131253454 AIR SILENCER ASSY (INCL. 16 AND DECALS)AIR SILENCER ASSY (INCL. 16 AND DECALS)
-
147073820 DECAL, ADJUSTER DRIVEN CLUTCHDECAL, ADJUSTER DRIVEN CLUTCH
-
157073426 DECAL, GREASINGDECAL, GREASING
-
165411990 BOOT CARBURETORBOOT CARBURETOR
-
177080471 CLIP, IGNITION CABLECLIP, IGNITION CABLE
-
187080307 CLAMP, HOSECLAMP, HOSE
-
198450003-1525 LINE, FUEL (1/4 ID, 1525 CM.)LINE, FUEL (1/4 ID, 1525 CM.)
-
204010660 SENDER OIL, WITH FRONT TERMINALSSENDER OIL, WITH FRONT TERMINALS
-
217052305 GROMMET OIL SENDERGROMMET OIL SENDER
-
221240094 CAP OIL, VENTED/CUSTOM COLORCAP OIL, VENTED/CUSTOM COLOR
-
237512163 BOLTBOLT
-
247555859 WASHER, FLATWASHER, FLAT
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRIC MODULE
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- • OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT ADJUSTABLE
- SEAT W/ TAILLIGHT
- SHIFTER ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY #1
- STEERING ASSEMBLY #2
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK SHOCK (M-10 ACE)
- SUSPENSION - REAR TRACK SHOCK (M-10)
- TOOL KIT
- WATER PUMP
- WINDSHIELD/GUAGES/HOOD RETAINER
