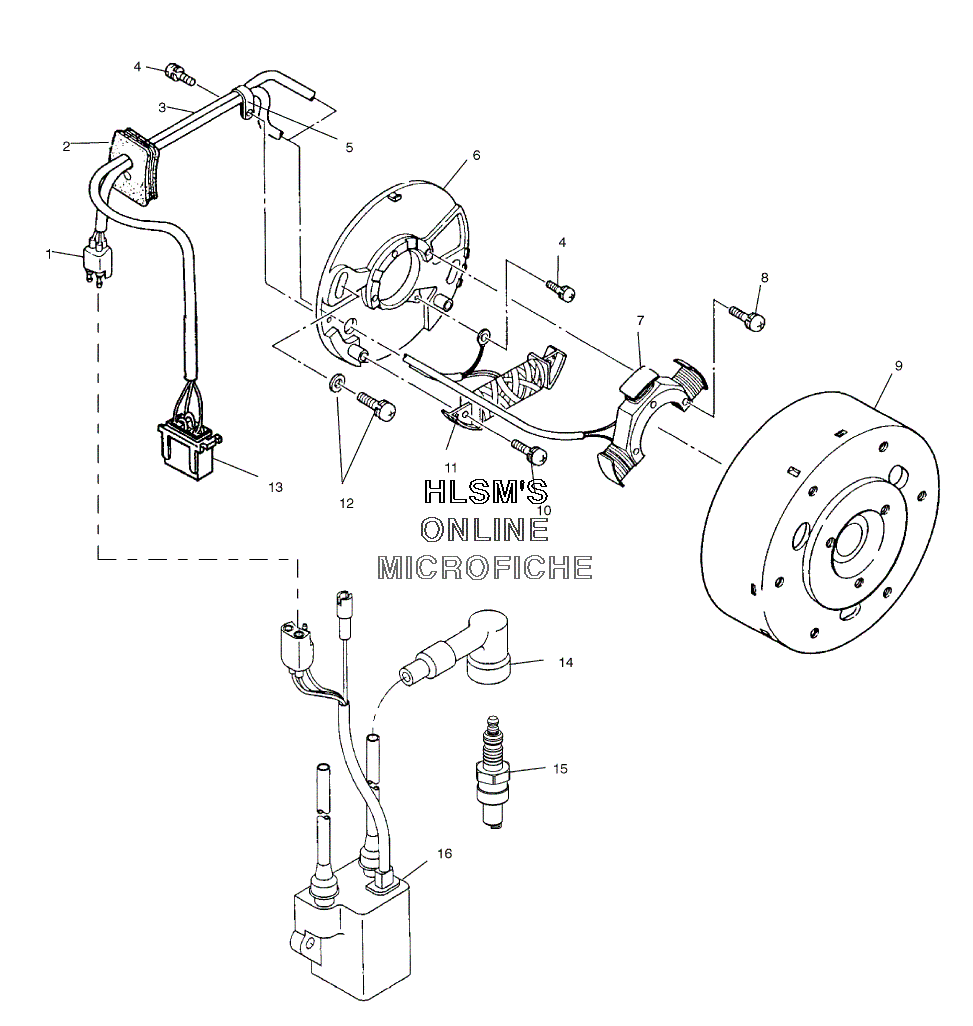

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска`
-
№АртикулНазвание
-
13083909 COUPLERCOUPLER
-
23082969 GROMMETGROMMET
-
33087007 HARNESS WIRE (INCL. 2)HARNESS WIRE (INCL. 2)
-
43081260 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
53081296 CLAMPCLAMP
-
63087004 PLATE ASSY (INCL. 1-8, 10, 11, 13)PLATE ASSY (INCL. 1-8, 10, 11, 13)
-
63083987 PLATE, COILPLATE, COIL
-
73083991 STATOR 1STATOR 1
-
83082365 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
93087005 FLYWHEEL ASSYFLYWHEEL ASSY
-
103083423 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
133081513 COUPLER, MALECOUPLER, MALE
-
144020129 RESISTOR PLUG CAPRESISTOR PLUG CAP
-
153070166 SPARKPLUGSPARKPLUG
-
163087006 COIL, IGNITIONCOIL, IGNITION
