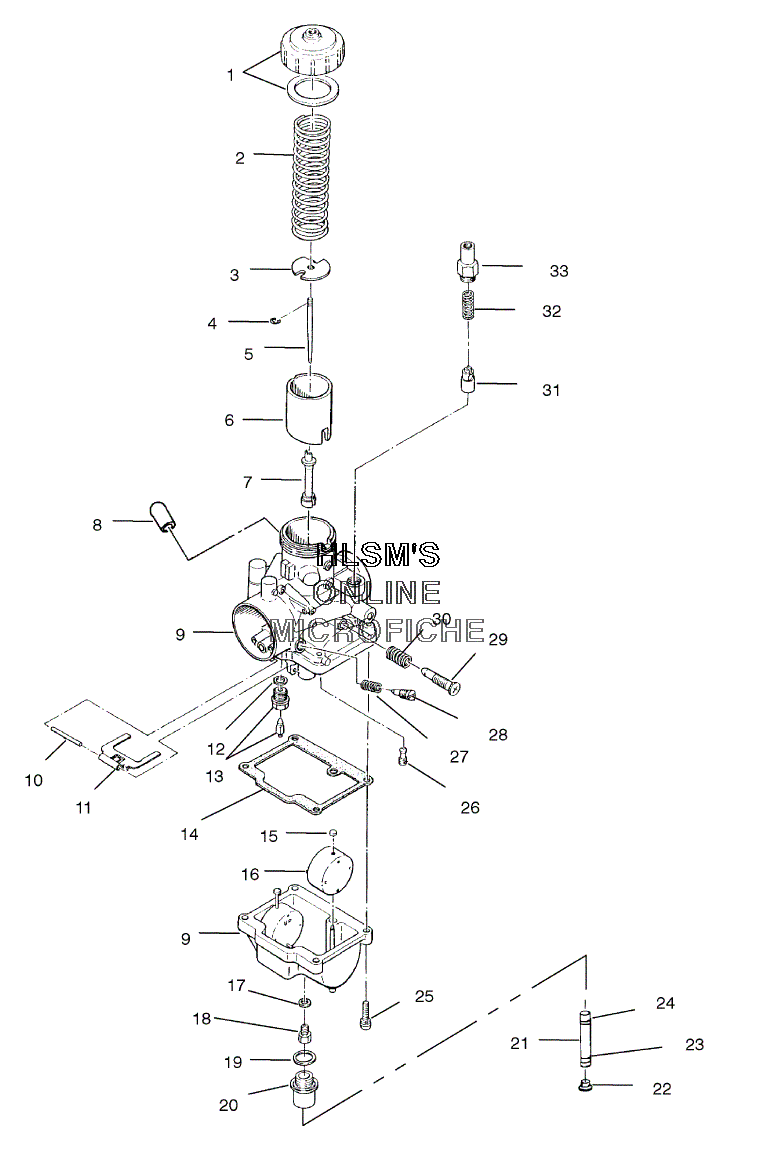

CARBURETOR ASSEMBLY для Polaris 340 INDY (S04NB3AS) - 2004 года выпуска`
-
№АртикулНазвание
-
13131516 MIXING CHAMBER, ASSY TOP (INCL. GASKET)MIXING CHAMBER, ASSY TOP (INCL. GASKET)
-
23130354 SPRING, THROTTLESPRING, THROTTLE
-
33130002 PLATE, THROTTLEPLATE, THROTTLE
-
43130508 E-RINGE-RING
-
53131466 NEEDLE, JET (5DP13)NEEDLE, JET (5DP13)
-
63130468 VALVE, THROTTLE (2.5)VALVE, THROTTLE (2.5)
-
73130469 NEEDLE JET (O 6, 169)NEEDLE JET (O 6, 169)
-
83130479 CAPCAP
-
93131465 CARBURETOR, ASSY (INCL. 1-20, 25-33)CARBURETOR, ASSY (INCL. 1-20, 25-33)
-
103130361 PIN, FLOATPIN, FLOAT
-
113130018 ARM, FLOATARM, FLOAT
-
123130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
133131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
143130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
153130237 CAPCAP
-
163130021 FLOAT, ASSYFLOAT, ASSY
-
173130014 WASHERWASHER
-
183131467 JET, MAIN HEXAGON HEADJET, MAIN HEXAGON HEAD
-
193130239 O-RINGO-RING
-
205020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
218450045-153 FUEL LINE (5 FT.)FUEL LINE (5 FT.)
-
225431893 PLUG, TRAPPLUG, TRAP
-
237080544 CLAMP, HOSECLAMP, HOSE
-
247080534 CLAMP, HOSECLAMP, HOSE
-
253130025 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
263130066 JET, PILOT #35JET, PILOT #35
-
273130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
283130011 SCREW, AIRSCREW, AIR
-
293130324 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
303130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
313130328 PLUNGER, ASSYPLUNGER, ASSY
-
323130006 SPRING, PLUNGERSPRING, PLUNGER
-
333130359 CAP, PLUNGERCAP, PLUNGER
