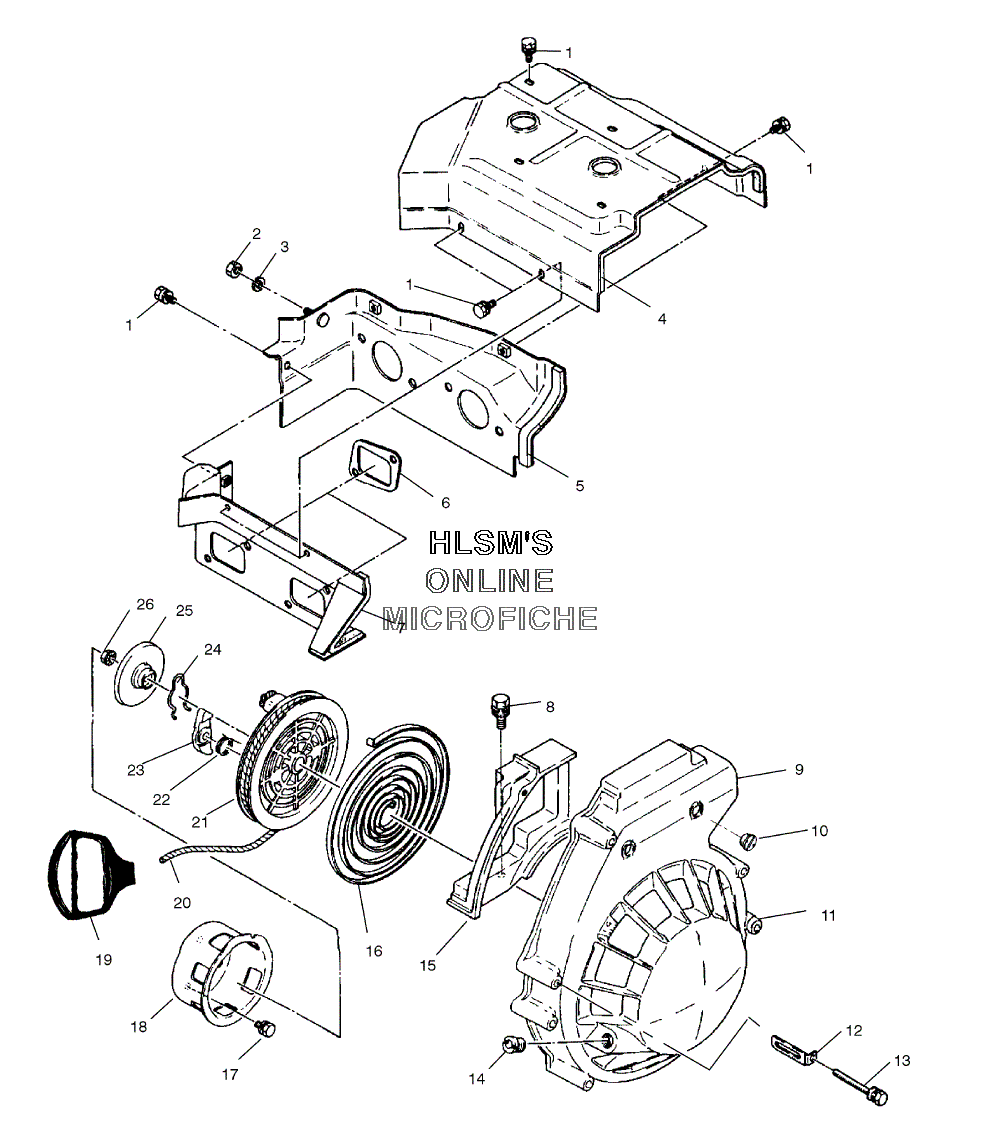

STARTER RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 340 INDY (S04NB3AS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3085359 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    3084375 NUT
    NUT
  • 3
    3080077 WASHER SPRING
    WASHER SPRING
  • 4
    3084420 CYLINDER BAFFLE NO. 1 ASSY
    CYLINDER BAFFLE NO. 1 ASSY
  • 5
    3084421 CYLINDER BAFFLE NO. 2 ASSY
    CYLINDER BAFFLE NO. 2 ASSY
  • 6
    3085846 GASKET INTAKE
    GASKET INTAKE
  • 7
    3085847 CYLINDER BAFFLE 3 ASSY (INCL. 6-7)
    CYLINDER BAFFLE 3 ASSY (INCL. 6-7)
  • 8
    3081663 BOLT AND WASHER, ASSY
    BOLT AND WASHER, ASSY
  • 9
    3089467 RECOIL STARTER, ASSY (INCL. 9, 14, 16, 20 26)
    RECOIL STARTER, ASSY (INCL. 9, 14, 16, 20 26)
  • 9
    3083589 CASE, STARTER ASSY
    CASE, STARTER ASSY
  • 10
    3086792 PLUG, RUBBER
    PLUG, RUBBER
  • 11
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 12
    3083590 CLAMP
    CLAMP
  • 13
    3083729 BOLT AND WASHER, ASSY
    BOLT AND WASHER, ASSY
  • 14
    3083107 GUIDE ROPE
    GUIDE ROPE
  • 15
    3083591 HOUSING, BLOWER NO. 2
    HOUSING, BLOWER NO. 2
  • 16
    3083376 SPRING, SPIRAL
    SPRING, SPIRAL
  • 17
    3081665 BOLT AND WASHER, ASSY
    BOLT AND WASHER, ASSY
  • 18
    3083108 PULLEY STARTING
    PULLEY STARTING
  • 19
    5431499-070 HANDLE RECOIL (BLACK)
    HANDLE RECOIL (BLACK)
  • 20
    2870621 ROPE, NYLOK STARTER (100 FT) (BULK, CUT TO FIT)
    ROPE, NYLOK STARTER (100 FT) (BULK, CUT TO FIT)
  • 21
    3083377 REEL, ASSY
    REEL, ASSY
  • 22
    3083463 SPRING, RETURN
    SPRING, RETURN
  • 23
    3087207 RATCHET
    RATCHET
  • 24
    3083379 SPRING, FRICTION
    SPRING, FRICTION
  • 25
    3083464 PLATE, FRICTION
    PLATE, FRICTION
  • 26
    3083381 NUT, FLANGE
    NUT, FLANGE
