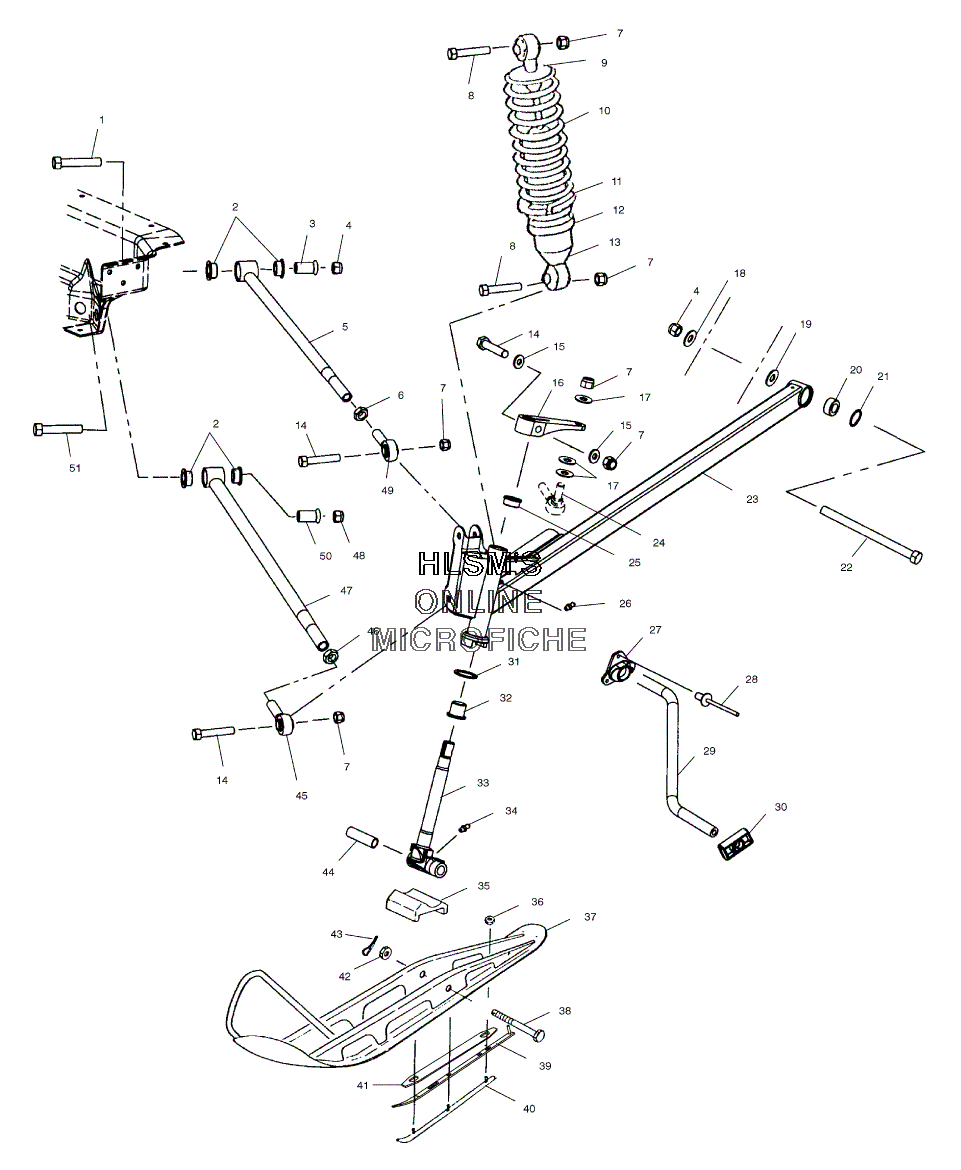

SUSPENSION FRONT W/ SKI для Polaris 340 INDY (S04NB3AS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7517980 BOLT HEXAGON CAP, GR5 Y
    BOLT HEXAGON CAP, GR5 Y
  • 2
    5434036 BUSHING, PIVOT (INNER)
    BUSHING, PIVOT (INNER)
  • 3
    5132779 BUSHING SHOULDNER
    BUSHING SHOULDNER
  • 4
    7547066 NUT NYLOK
    NUT NYLOK
  • 5
    1820679-385 WELD RADIUS ROD (UPPER) (CLOUD SILVER)
    WELD RADIUS ROD (UPPER) (CLOUD SILVER)
  • 6
    7542520 NUT, JAM
    NUT, JAM
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7515433 SCREW
    SCREW
  • 9
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 10
    7041551-067 SPRING COMP, IFS (BLACK)
    SPRING COMP, IFS (BLACK)
  • 11
    5431734 RING, SPRING PRELOAD ADJUST
    RING, SPRING PRELOAD ADJUST
  • 12
    1500063 RETAINER, SPRING BODY THREADED
    RETAINER, SPRING BODY THREADED
  • 13
    7041932 SHOCK IFS, NITREX
    SHOCK IFS, NITREX
  • 14
    7517583 SCREW HEXAGON/CAP
    SCREW HEXAGON/CAP
  • 15
    7555832 WASHER
    WASHER
  • 16
    5132728 ARM STEERING, MACHINED
    ARM STEERING, MACHINED
  • 17
    7555797 WASHER, FLAT
    WASHER, FLAT
  • 18
    7555820 WASHER, FLAT
    WASHER, FLAT
  • 19
    5132364 CUP, TRAILING ARM MNT
    CUP, TRAILING ARM MNT
  • 20
    7061042 BEARING SPHERICAL, 7/16 PLASTIC
    BEARING SPHERICAL, 7/16 PLASTIC
  • 21
    7710437 RING, RETAINING
    RING, RETAINING
  • 22
    7512099 SCREW
    SCREW
  • 23
    1821165-385 TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)
    TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)
  • 23
    1821166-385 TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)
    TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)
  • 25
    3573909 BUSHING FLANGE
    BUSHING FLANGE
  • 26
    7080433 FITTING, LUBRICATION, THREADED(10
    FITTING, LUBRICATION, THREADED(10
  • 27
    5433234 BUSHING TORSION BAR
    BUSHING TORSION BAR
  • 28
    7621452 RIVET
    RIVET
  • 29
    5244415-067 BAR, TORSION (BLACK)
    BAR, TORSION (BLACK)
  • 30
    5434369 SLIDE TORSION BAR, 1/2 ANTIRATTL
    SLIDE TORSION BAR, 1/2 ANTIRATTL
  • 31
    7556509 BUSHING
    BUSHING
  • 32
    3574208 BUSHING, FLANGED
    BUSHING, FLANGED
  • 33
    6230225-067 SHAFT SPINDLE, W/STEER STOP (BLACK)
    SHAFT SPINDLE, W/STEER STOP (BLACK)
  • 34
    7080306 FITTING, LUBE. W/BALL CHECK
    FITTING, LUBE. W/BALL CHECK
  • 35
    5411083 STOP, RUBBER
    STOP, RUBBER
  • 36
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 37
    1820430-067 SKI WELD
    SKI WELD
  • 38
    7515462 SCREW
    SCREW
  • 39
    1011829-067 PLATE, SKAG
    PLATE, SKAG
  • 39
    2870976 CARBIDE, EZ STEER 3"120 W PL KIT (INCL. SKAG AND PLATE)
    CARBIDE, EZ STEER 3"120 W PL KIT (INCL. SKAG AND PLATE)
  • 40
    1820318-067 SKAG (BLACK)
    SKAG (BLACK)
  • 41
    5245145-067 SHIM SKAG PLATE (BLACK)
    SHIM SKAG PLATE (BLACK)
  • 42
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 43
    7661209 PIN, COTTER
    PIN, COTTER
  • 44
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 45
    7061060 ROD END, RADIUS 1/2
    ROD END, RADIUS 1/2
  • 46
    7542711 NUT JAM
    NUT JAM
  • 47
    1820677-385 WELD RADIUS ROD (LOWER/CLOUD SILVER)
    WELD RADIUS ROD (LOWER/CLOUD SILVER)
  • 48
    7547065 NUT NYLOK
    NUT NYLOK
  • 49
    7061061 ROD END, RADIUS 7/16
    ROD END, RADIUS 7/16
  • 50
    5132780 BUSHING SHOULDER
    BUSHING SHOULDER
  • 51
    7512684 BOLT
    BOLT
