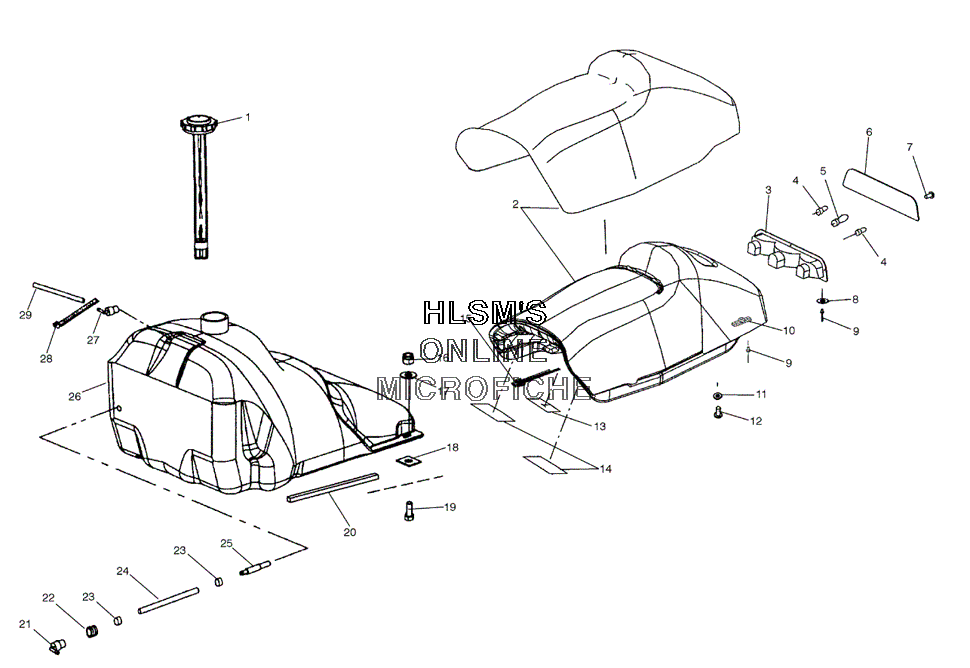

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 PRO X (S03NX8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2520323 CAP - FUEL, 12 GAL W/GAUGE
    CAP - FUEL, 12 GAL W/GAUGE
  • 2
    2683114 ASSY. - SEAT, PRO X (INCL. 2 - 3, 15)
    ASSY. - SEAT, PRO X (INCL. 2 - 3, 15)
  • 2
    2683115 ASSY. - SEAT COVER, EDGE, PRO X
    ASSY. - SEAT COVER, EDGE, PRO X
  • 3
    5433341 HOUSING - TAILLIGHT
    HOUSING - TAILLIGHT
  • 4
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 5
    4030045 BULB
    BULB
  • 6
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 7
    7511840 SCREW
    SCREW
  • 8
    7555727 WASHER
    WASHER
  • 9
    7621319 RIVET
    RIVET
  • 10
    5631194 NUT - SEAT
    NUT - SEAT
  • 11
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 12
    7517219 SCREW
    SCREW
  • 13
    5812291 GASKET - WIREHARNESS
    GASKET - WIREHARNESS
  • 14
    5812289 PATCH - 3.00 X 4.00
    PATCH - 3.00 X 4.00
  • 15
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 16
    7542122 NUT - NYLOK
    NUT - NYLOK
  • 17
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 18
    7670021 NUT, SPEED
    NUT, SPEED
  • 19
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 20
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 21
    7052269 FITTING
    FITTING
  • 22
    5432981 GROMMET
    GROMMET
  • 23
    7080768 RING, COMPRESSION
    RING, COMPRESSION
  • 24
    8350020-600 FUEL, LINE, ETHER, VLT, 3/8"
    FUEL, LINE, ETHER, VLT, 3/8"
  • 25
    7052215 PICK - UP, FUEL, W/MESH
    PICK - UP, FUEL, W/MESH
  • 26
    2520291 ASSY. - FUEL TANK, PRO X (INCL. 25 - 27)
    ASSY. - FUEL TANK, PRO X (INCL. 25 - 27)
  • 27
    7052095 FITTING, 90 DEG, 1/8
    FITTING, 90 DEG, 1/8
  • 28
    7080804 CABLE TIE - RELEASABLE
    CABLE TIE - RELEASABLE
  • 29
    8450061-600 LINE, FUEL
    LINE, FUEL
