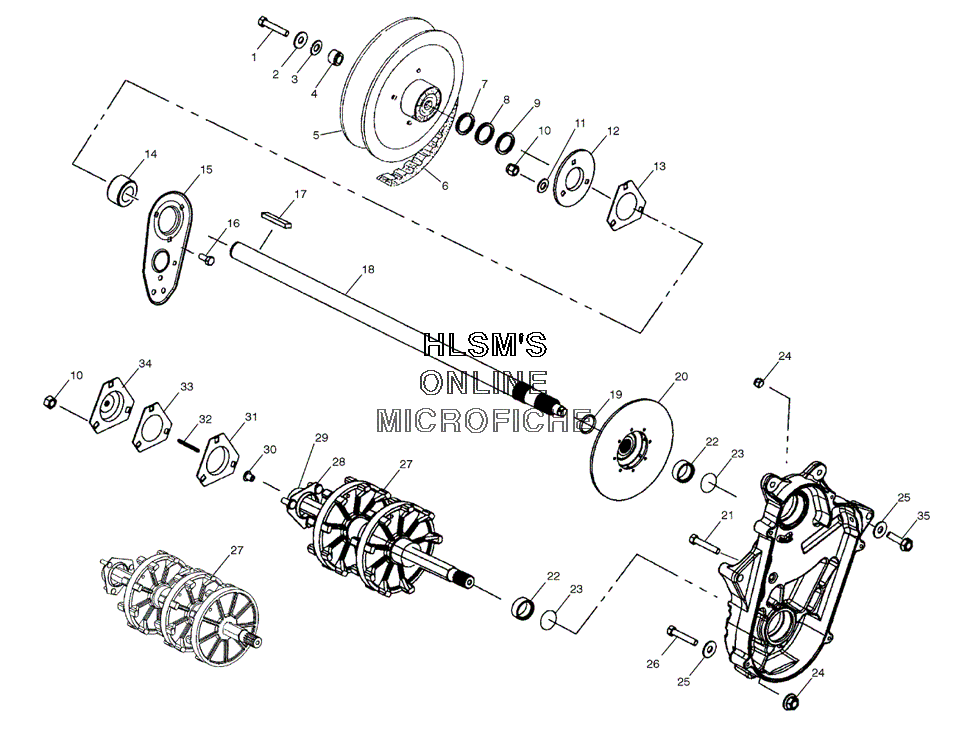

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 PRO X (S03NX8CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17515301 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107542324 NUT, NYLOKNUT, NYLOK
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514519 BEARING, JACKSHAFTBEARING, JACKSHAFT
-
155245889-067 FLANGETTE - JACKSHAFT, REINF (BLACK)FLANGETTE - JACKSHAFT, REINF (BLACK)
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721116 KEYKEY
-
181332254 ASSY. - JACKSHAFT, SOLID (INCL. 19)ASSY. - JACKSHAFT, SOLID (INCL. 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910703 KIT - BRAKE DISC, FORGEDKIT - BRAKE DISC, FORGED
-
217515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O RINGO RING
-
247542423 NUT, FLANGENUT, FLANGE
-
257558403 WASHER, WROUGHTWASHER, WROUGHT
-
267512492 SCREWSCREW
-
271590347 ASSY. - DR SHAFT, EDGE, 3 DR WIDE (INCL. 28, 29, 30)ASSY. - DR SHAFT, EDGE, 3 DR WIDE (INCL. 28, 29, 30)
-
281012945 ASSY. - FLANGETTE W/SCREWSASSY. - FLANGETTE W/SCREWS
-
293514525 BEARINGBEARING
-
303280019 BUSHINGBUSHING
-
315243529 FLANGETTE - OFFSET, W/HOLEFLANGETTE - OFFSET, W/HOLE
-
323280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
335830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
343280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
357518002 SCREWSCREW
