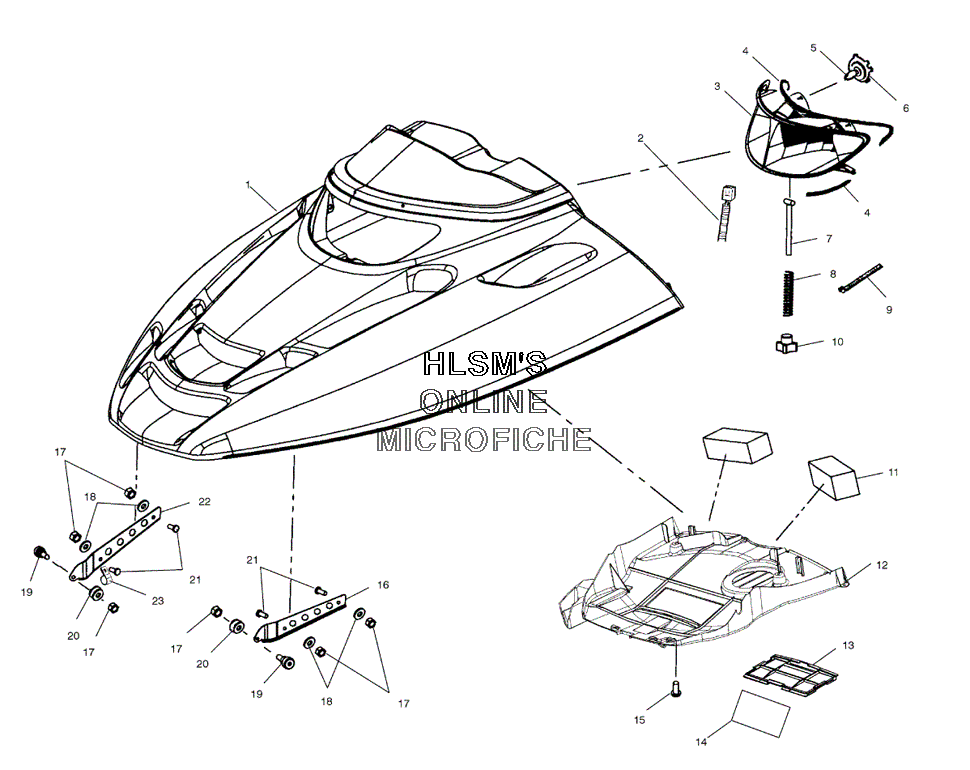

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 800 PRO X (S03NX8CS) - 2003 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    2632535-293 ASSY. - HOOD, 2003 700 PROX, SVC, RED (INCL. FOAM AND FOIL)
    ASSY. - HOOD, 2003 700 PROX, SVC, RED (INCL. FOAM AND FOIL)
  • 2
    2461015 HARNESS - HEADLIGHT, E/R
    HARNESS - HEADLIGHT, E/R
  • 3
    2410132 ASSY., HEADLAMP, 2 - BULB (INCL. BULBS)
    ASSY., HEADLAMP, 2 - BULB (INCL. BULBS)
  • 4
    5812175 SEAL - HEADLIGHT, ONE PIECE
    SEAL - HEADLIGHT, ONE PIECE
  • 4
    5812174 SEAL - HEADLIGHT, ONE PIECE
    SEAL - HEADLIGHT, ONE PIECE
  • 5
    2870448 BULB, QUARTZ.H/L
    BULB, QUARTZ.H/L
  • 6
    4032063 RETAINER, H/L BULB
    RETAINER, H/L BULB
  • 7
    7517872 BOLT - TEE ADJUSTER
    BOLT - TEE ADJUSTER
  • 8
    7041954 SPRING - HEADLIGHT ADJUST
    SPRING - HEADLIGHT ADJUST
  • 9
    7080138 CABLE TIE
    CABLE TIE
  • 10
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKING
    KNOB, HEADLIGHT, ADJUST, LOCKING
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    2632491 ASSY. - PLENUM, FOIL
    ASSY. - PLENUM, FOIL
  • 12
    5811948 FOIL - 4.5X1.0
    FOIL - 4.5X1.0
  • 12
    5812324 FOIL
    FOIL
  • 13
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 14
    7171028 DECAL - SUSP.SET - UP, PRO X
    DECAL - SUSP.SET - UP, PRO X
  • 15
    7512068 SCREW
    SCREW
  • 16
    5243567-067 HINGE - UPPER (BLACK), (LEFT)
    HINGE - UPPER (BLACK), (LEFT)
  • 17
    7542122 NUT - NYLOK
    NUT - NYLOK
  • 18
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 19
    7512113 BOLT
    BOLT
  • 20
    5332403 SPACER
    SPACER
  • 21
    7512240 BOLT
    BOLT
  • 22
    5243568-067 HINGE - UPPER (BLACK), (RIGHT)
    HINGE - UPPER (BLACK), (RIGHT)
  • 23
    7080367 CLAMP, CABLE
    CLAMP, CABLE
